Power Door Locks Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

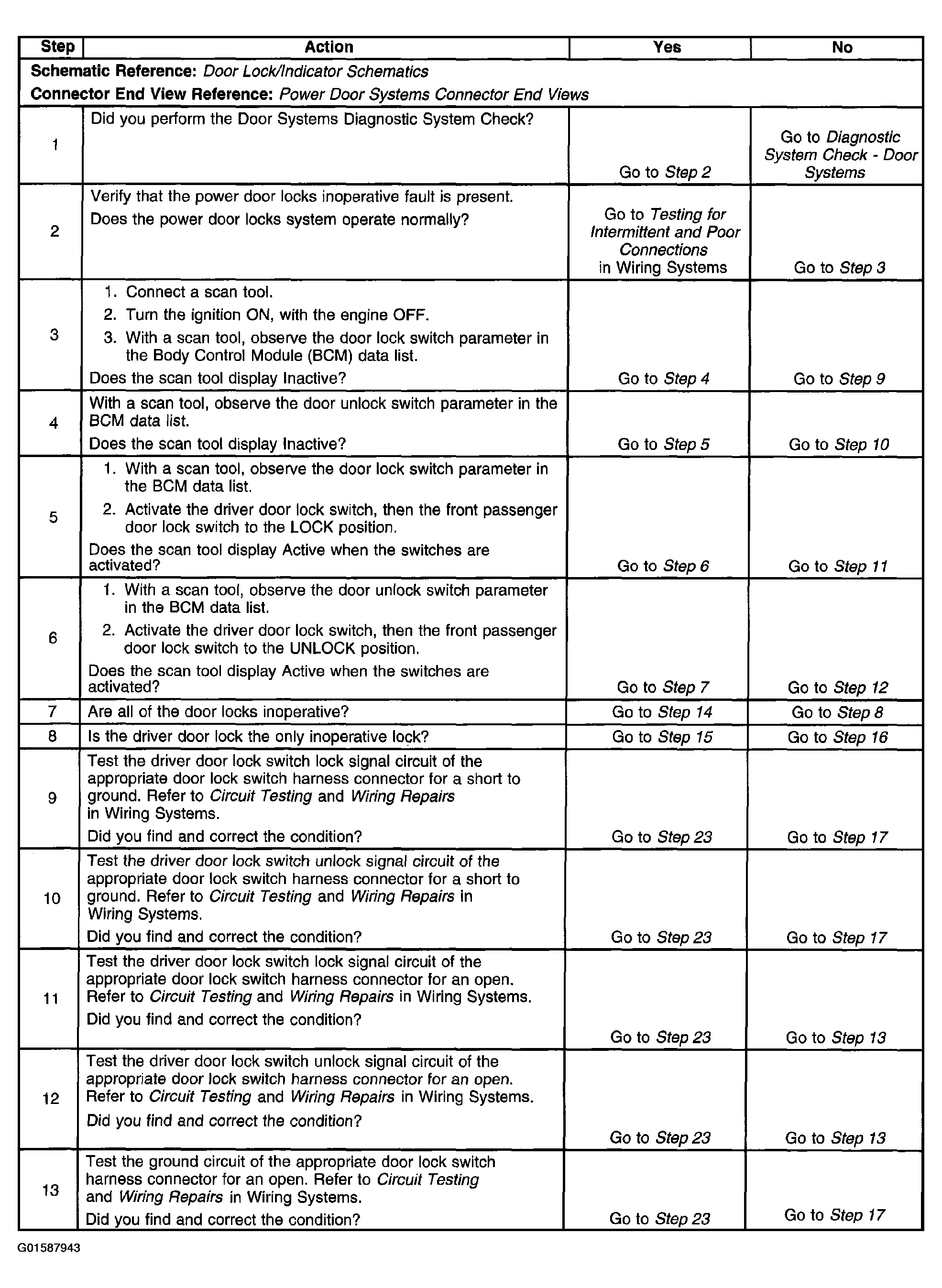

Fig 1: Power Door Locks Inoperative Diagnostic Procedure (Steps 1-13)
G01587943Courtesy of GENERAL MOTORS CORP.

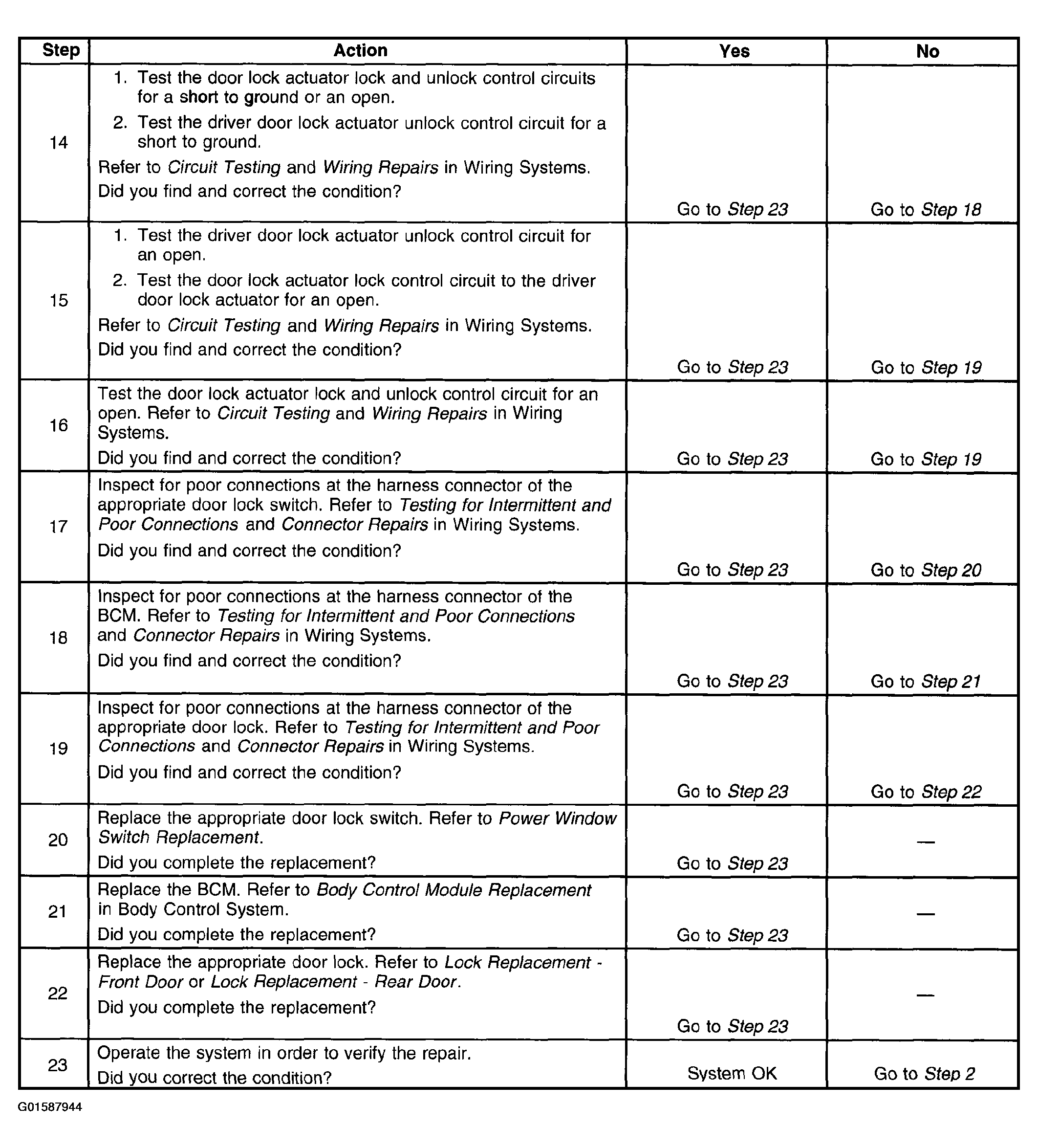

Fig 2: Power Door Locks Inoperative Diagnostic Procedure (Steps 14-23)
G01587944Courtesy of GENERAL MOTORS CORP.
