Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the rear side hood seal from the pinchweld flange and motor compartment flange.
  3. Remove the rear side hood seal from the vehicle.
  4. Clean any adhesive from the pinch-weld flange and motor compartment flange surface using 3M™ P/N 8984 Adhesive Remover.

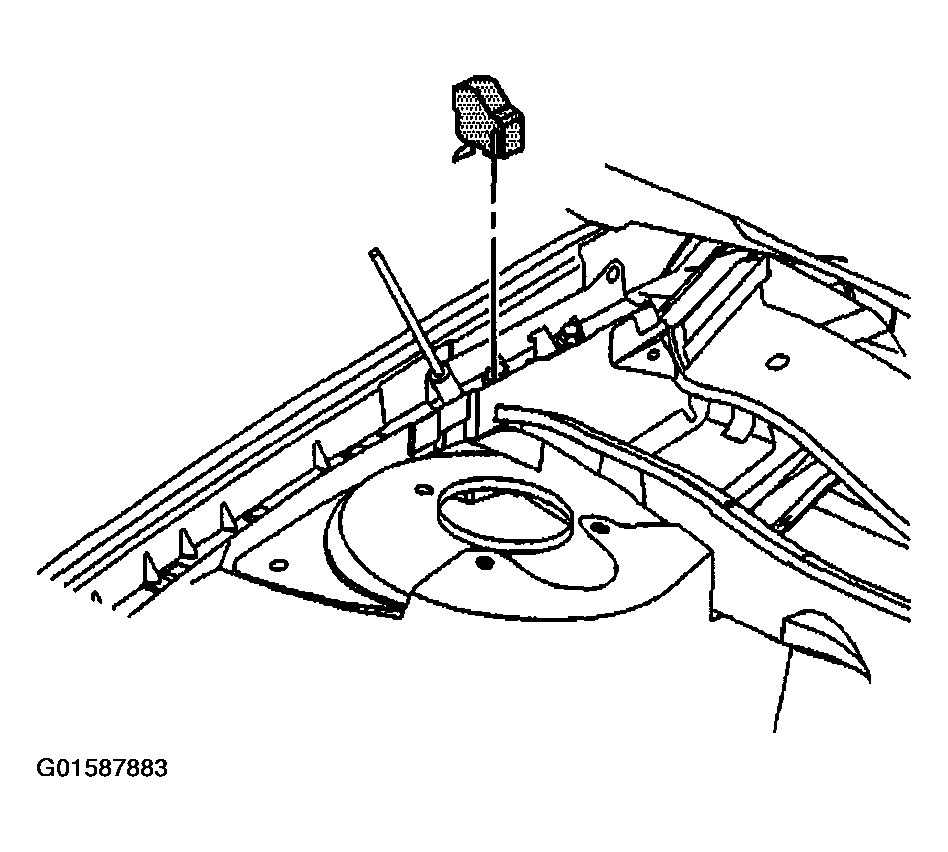

    5. Fig 1: Removing Rear Side Hood Seal From Pinchweld Flange And Motor Compartment Flange
    G01587883Courtesy of GENERAL MOTORS CORP.
