Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the protective backing paper from the adhesive on the rear side hood seal.
  2. Install the rear side hood seal to the pinchweld flange and motor compartment flange.
  3. Install the side rear hood seal onto the pinch-weld flange and motor compartment flange until the adhesive is fully adhered.

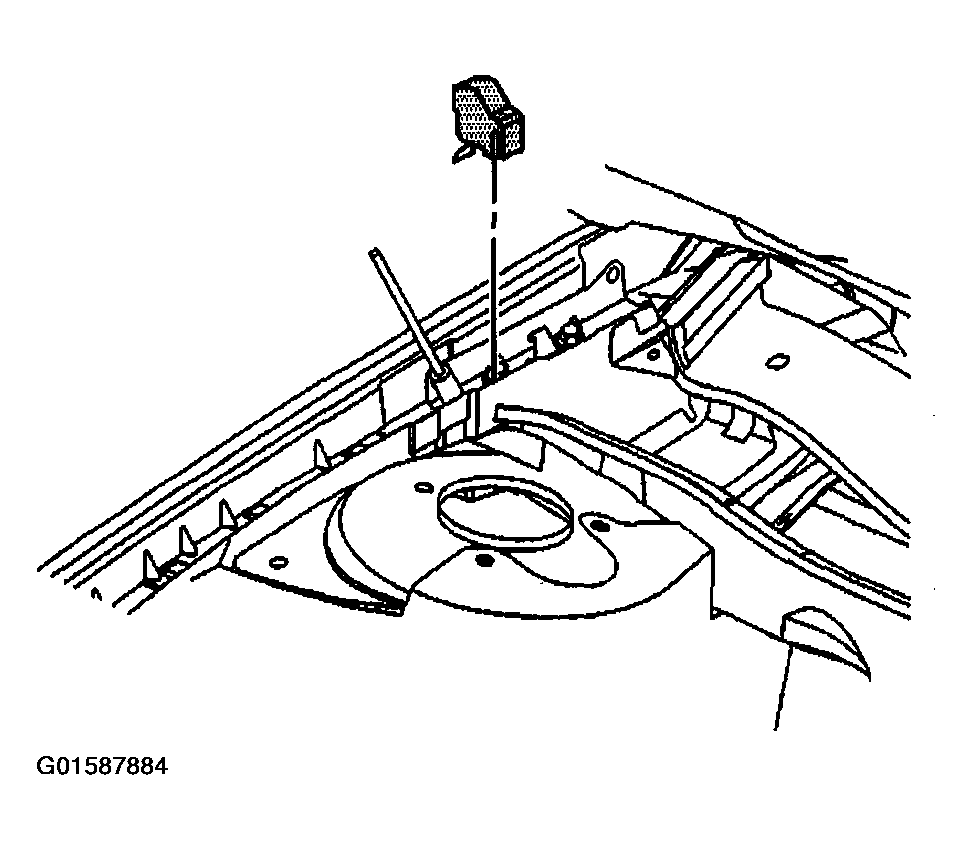

    4. Fig 1: Installing Rear Side Hood Seal To Pinchweld Flange And Motor Compartment Flange
    G01587884Courtesy of GENERAL MOTORS CORP.
  4. Close the hood.
