Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Use the J 38778 in order to remove the push-in retainers from the front air seal.
  3. Remove the front air seal from the hood.

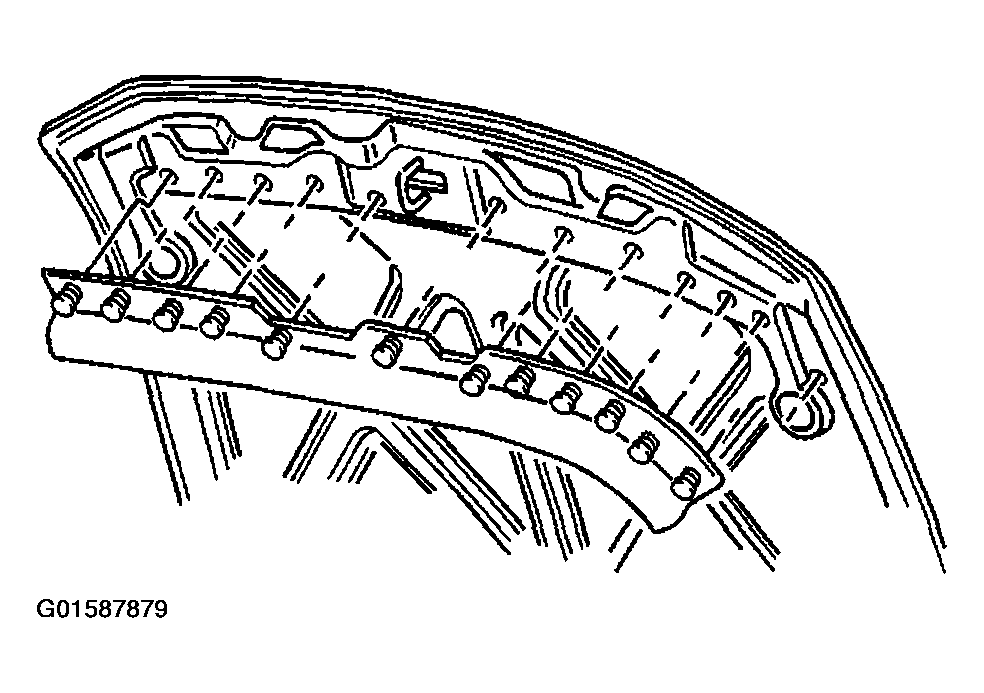

  4. Fig 1: Removing Front Air Seal From Hood
    G01587879Courtesy of GENERAL MOTORS CORP.
