Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air seal to the hood.
  2. Install the push-in retainers to the front air seal into the hood.

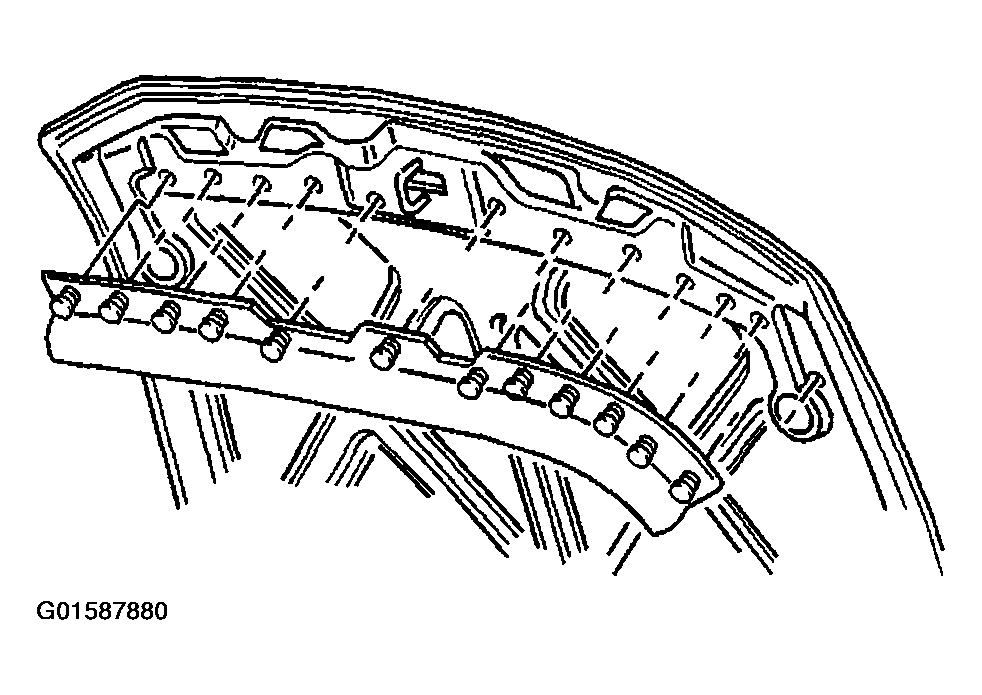

  3. Fig 1: Installing Front Air Seal To Hood
    G01587880Courtesy of GENERAL MOTORS CORP.
  4. Close the hood.
