Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the push-in retainers from the hood insulator.
  3. Remove the hood insulator from the hood.

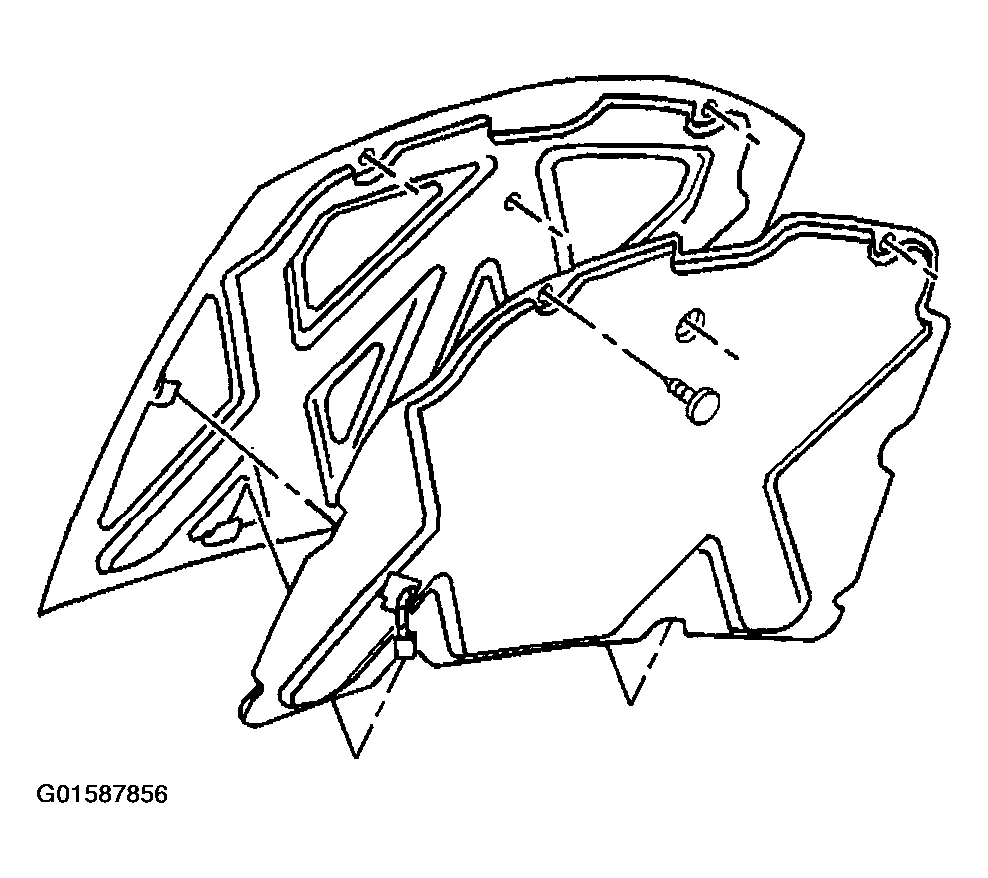

    4. Fig 1: Removing Hood Insulator From Hood
    G01587856Courtesy of GENERAL MOTORS CORP.
