Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT  .
  2. Pull the front fender insulator tabs off of the mounting studs.
  3. Remove the front fender insulator from the inner fender.

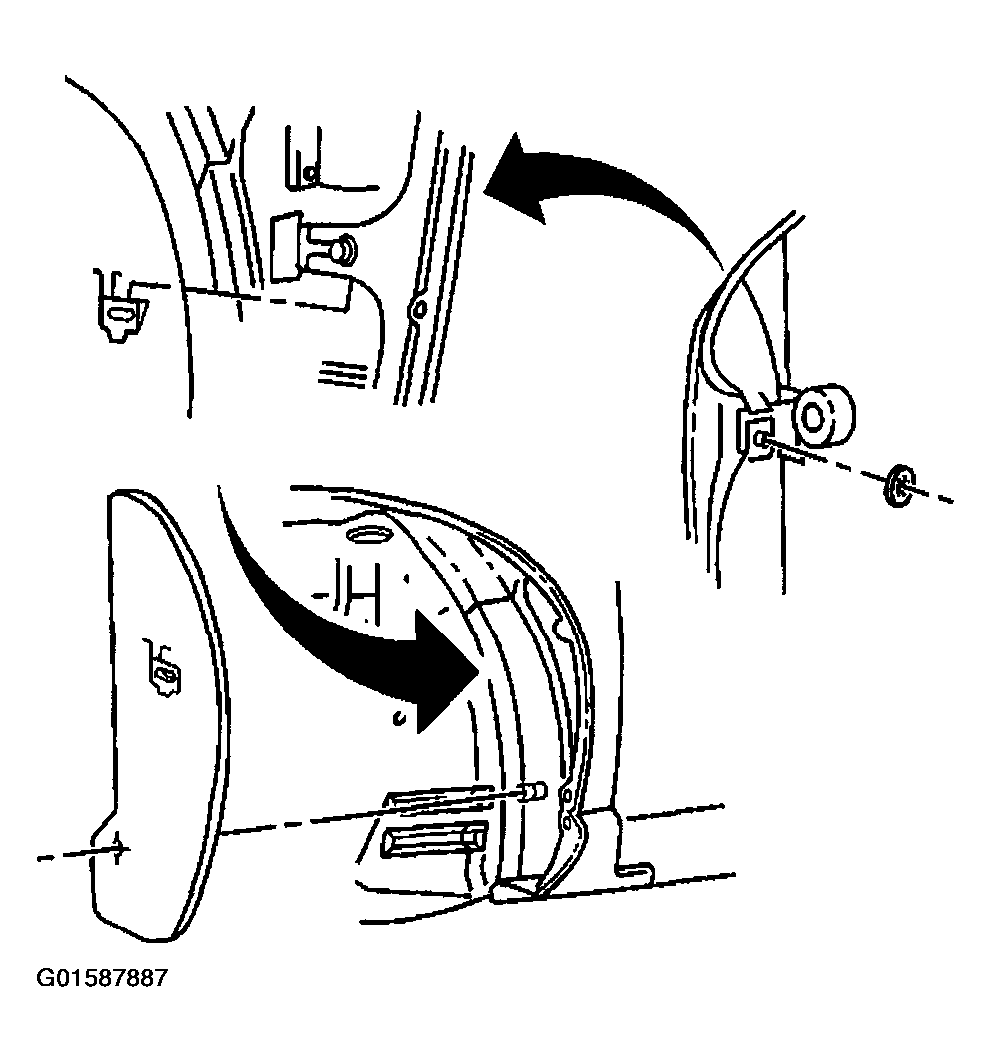

    4. Fig 1: Removing Front Fender Insulator From Inner Fender
    G01587887Courtesy of GENERAL MOTORS CORP.
