Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the front fender upper diagonal brace-to-inner fender bolt.
  3. Remove the front fender upper diagonal brace-to-radiator support bolts.
  4. Remove the front fender upper diagonal brace.

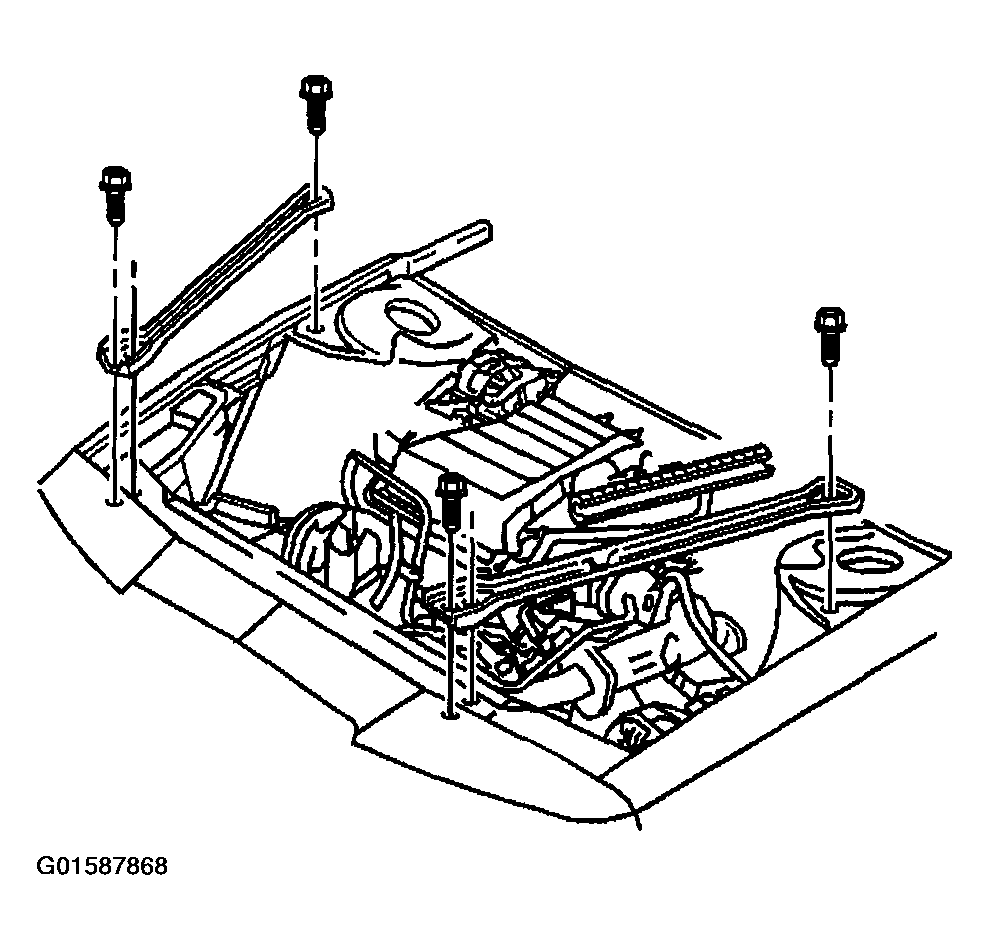

    5. Fig 1: Removing Front Fender Upper Diagonal Brace
    G01587868Courtesy of GENERAL MOTORS CORP.
