Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender upper diagonal brace.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the bolts to the front fender upper diagonal brace at the radiator support.

    Tighten

    Tighten the bolts to 47 N.m (35 lb ft).

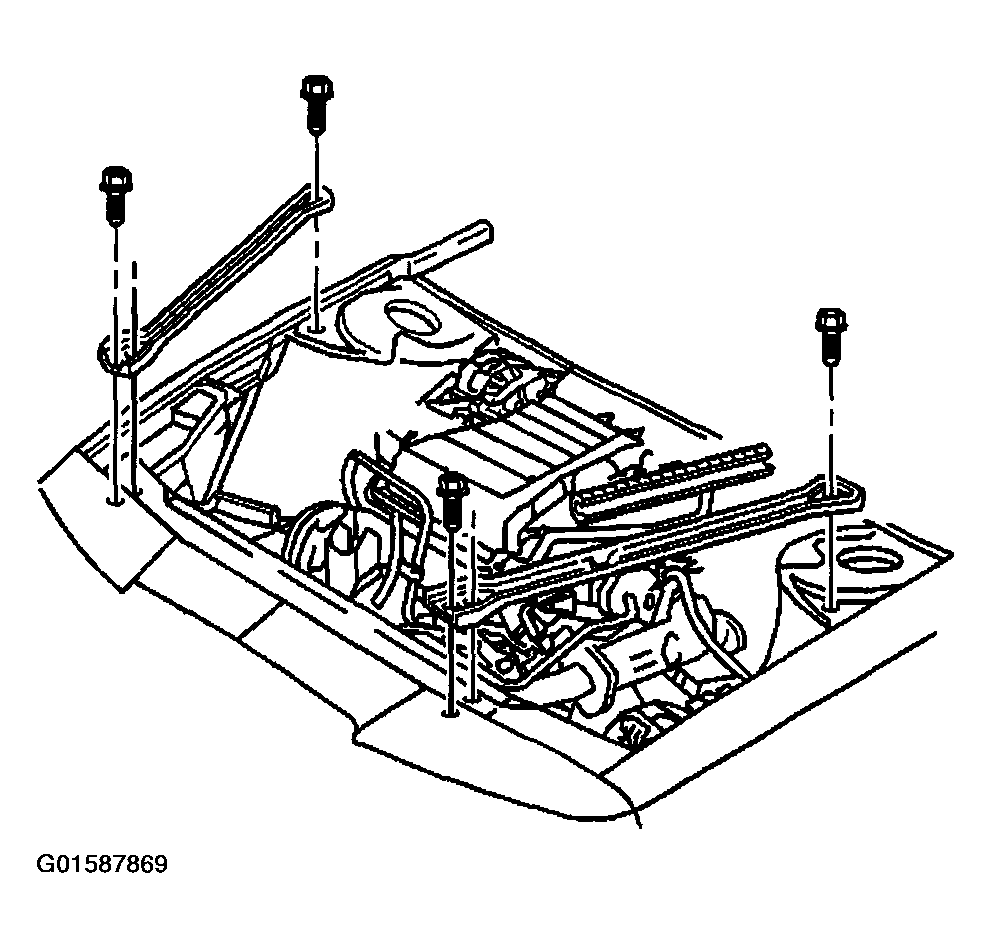

    3. Fig 1: Installing Front Fender Upper Diagonal Brace
    G01587869Courtesy of GENERAL MOTORS CORP.
  3. Install the front fender diagonal brace-to-inner fender bolt.

    Tighten

    Tighten the bolt to 47 N.m (35 lb ft).

  4. Close the hood.
