Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the nuts from the cross vehicle brace.
  3. Remove the cross vehicle brace from the vehicle.

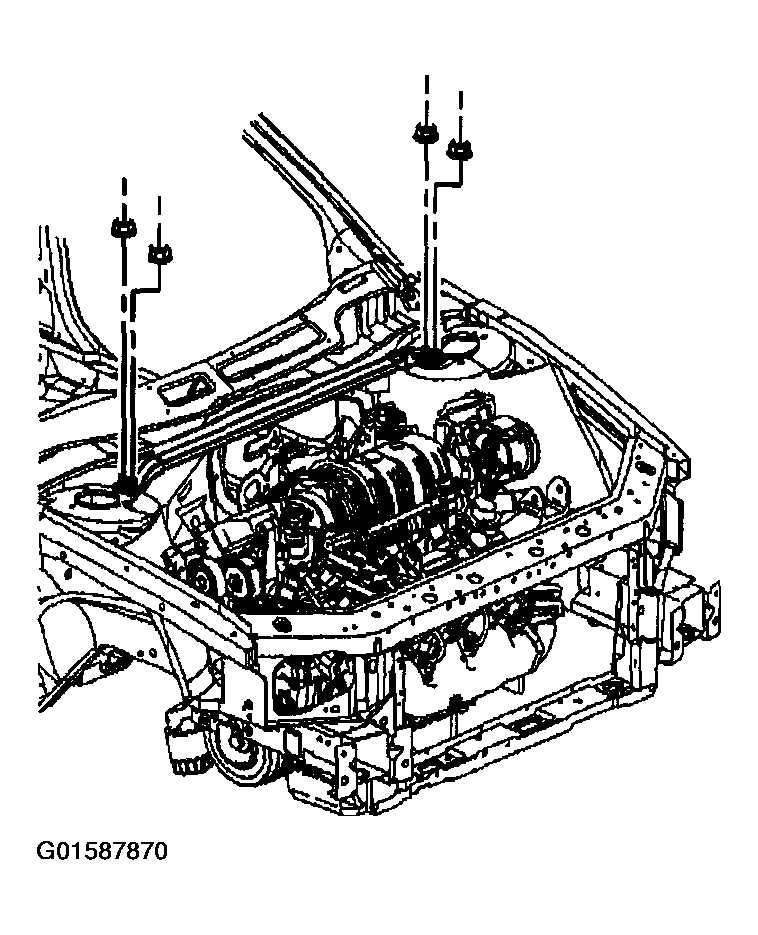

    Fig 1: Removing Nuts From Cross Vehicle Brace
    G01587870Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The stud plates will fall out and possibly get caught under the vehicle, a helper should hold the stud plates during the removal.
  4. Remove the stud plates push on nuts.
  5. Remove the stud plates from the vehicle.

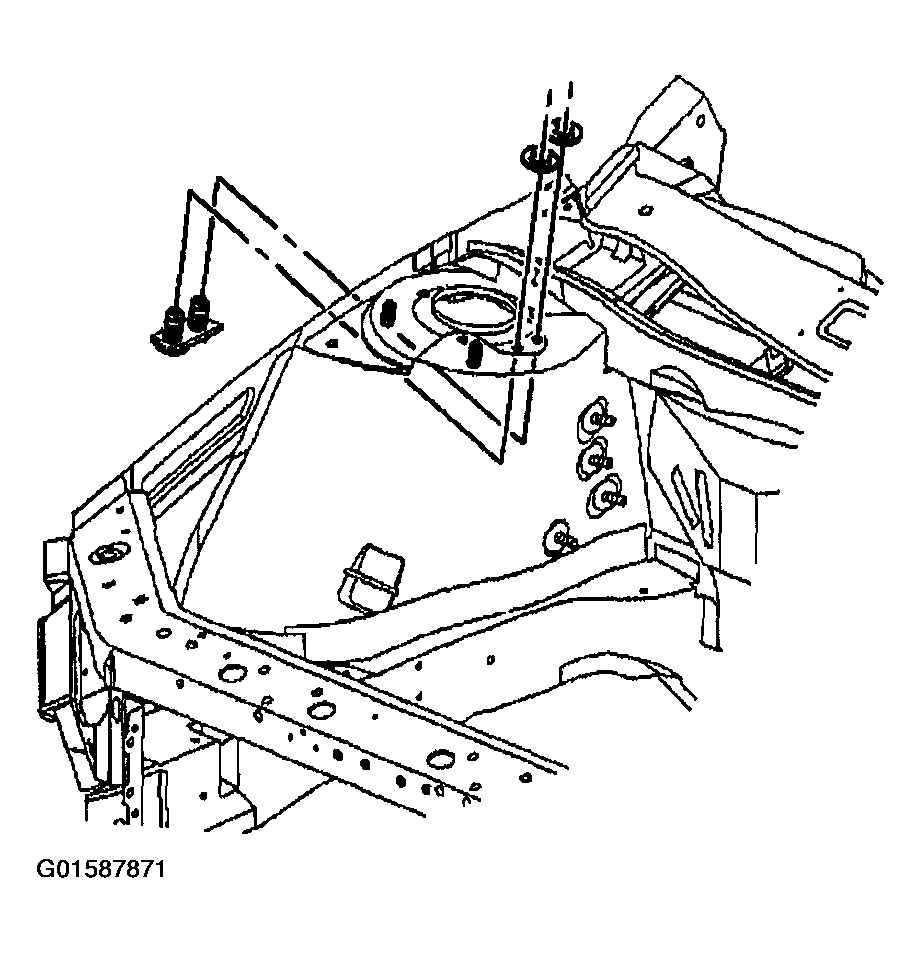

    6. Fig 2: Removing Stud Plates From Vehicle
    G01587871Courtesy of GENERAL MOTORS CORP.
