Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The stud plates will require a helper to hold the stud plates during the installation of the push on nuts.
  1. Install the stud plates to the vehicle.
  2. Install the stud plates push on nuts to the studs.

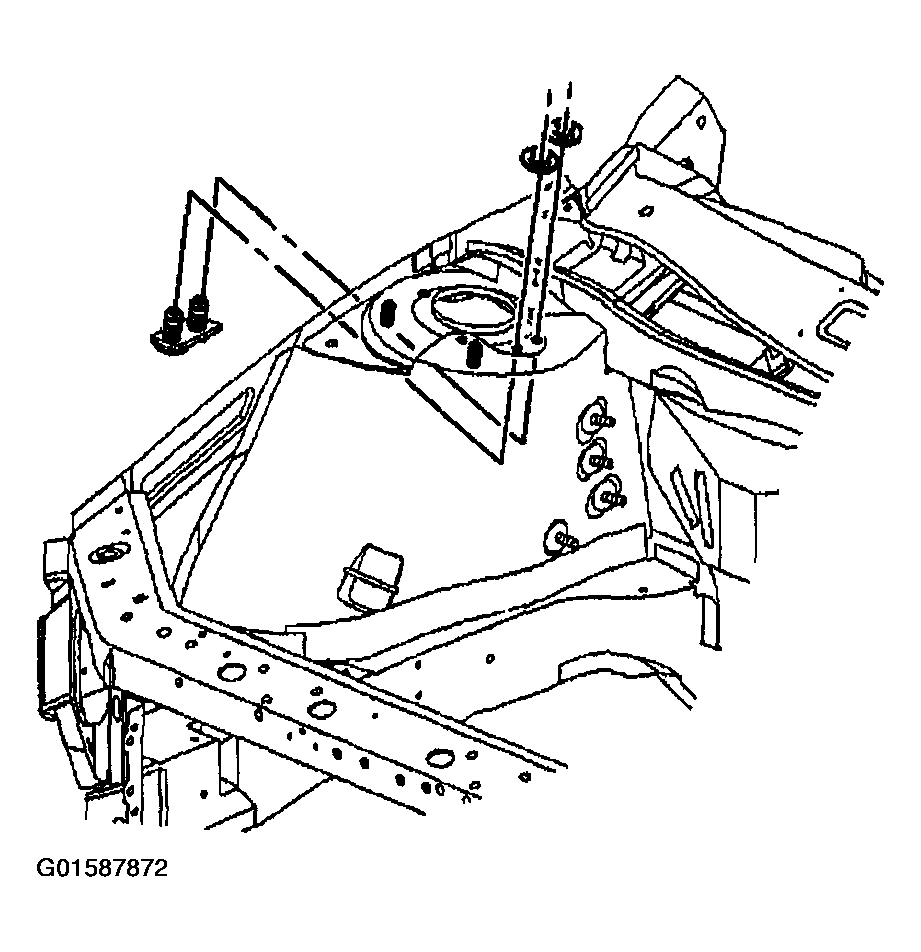

    3. Fig 1: Installing Stud Plates To Vehicle
    G01587872Courtesy of GENERAL MOTORS CORP.
  3. Install the cross vehicle brace onto the stud plates.

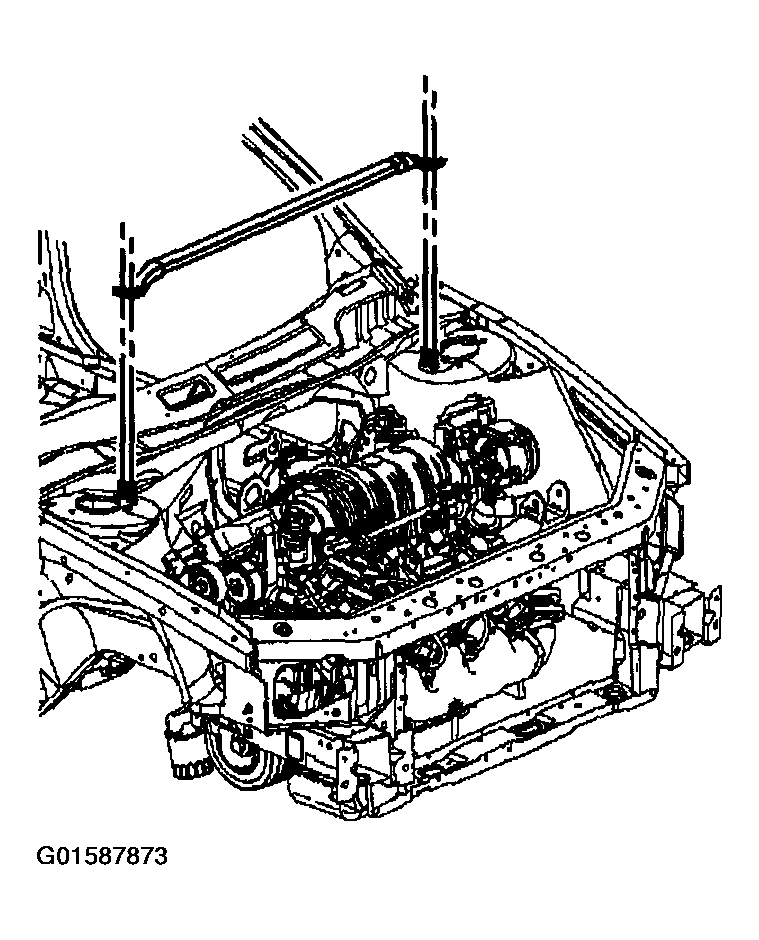

    Fig 2: Installing Cross Vehicle Brace Onto Stud Plates
    G01587873Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the nuts to retain the cross vehicle brace to the vehicle.

    Tighten

    Tighten the nuts to 18 N.m (13 lb ft).

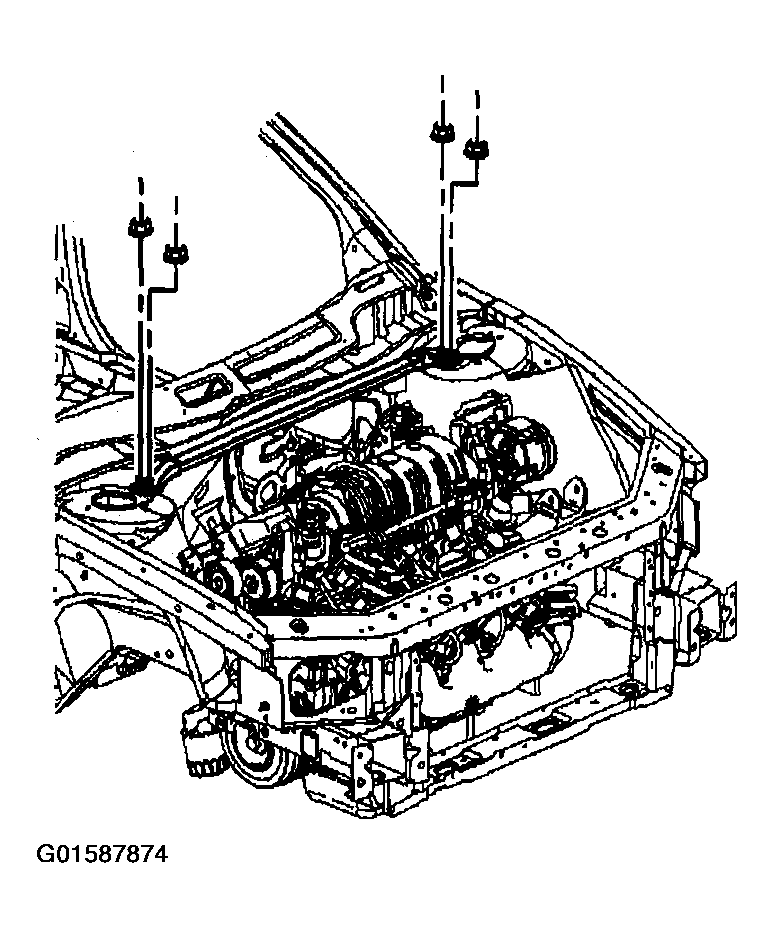

    5. Fig 3: Installing Nuts To Retain Cross Vehicle Brace To Vehicle
    G01587874Courtesy of GENERAL MOTORS CORP.
  5. Close the hood.
