Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the windshield washer hose from the air inlet grille.

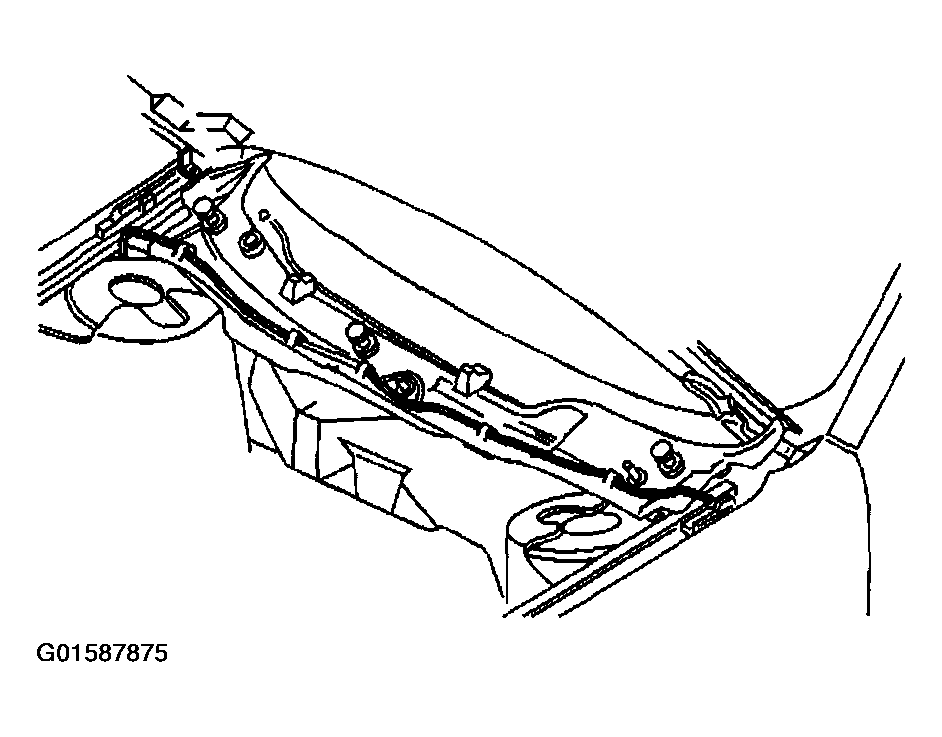

    3. Fig 1: Identifying Windshield Washer Hose Of Air Inlet Grille
    G01587875Courtesy of GENERAL MOTORS CORP.
  3. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  4. Remove the push-in retainers from the air inlet grille, using the J 38778.
  5. Remove the large plastic screws from the air inlet grille.
  6. Remove the air inlet grille from the vehicle.

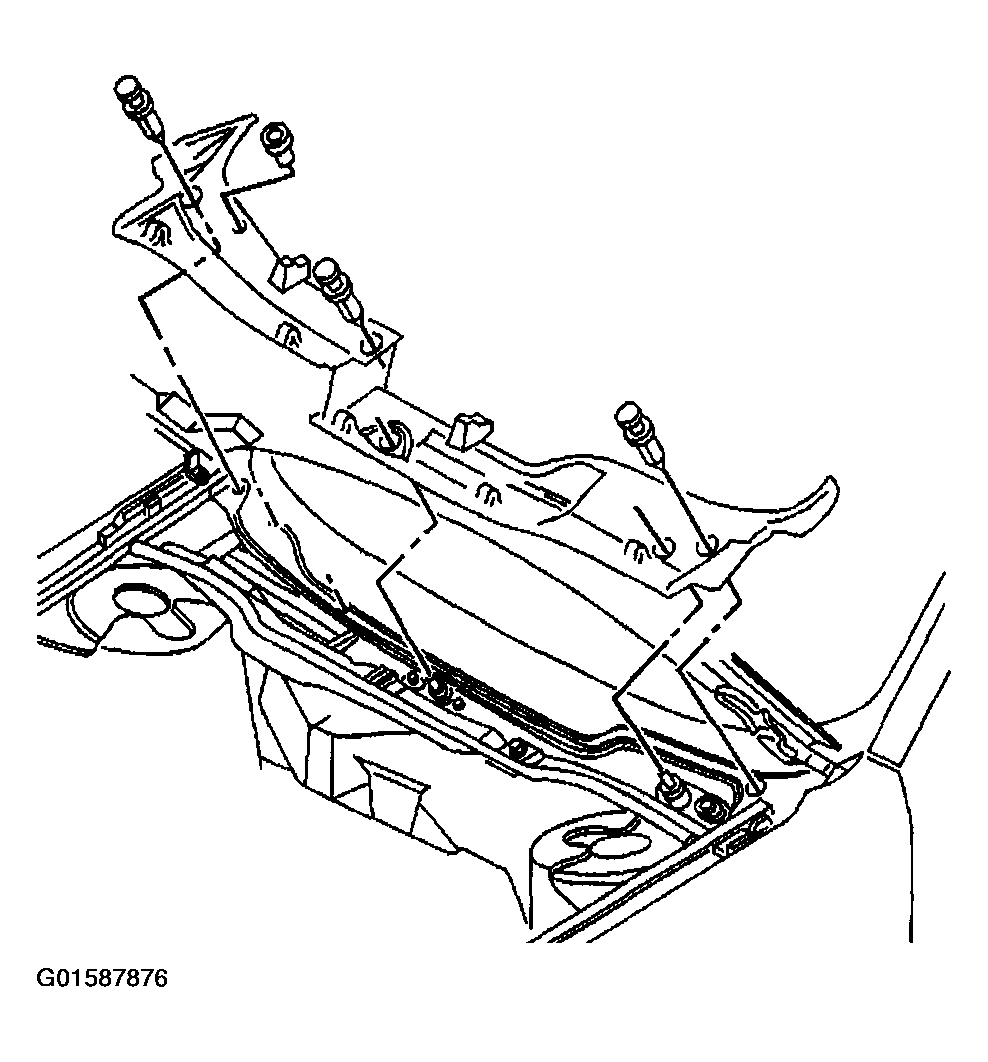

    7. Fig 2: Removing Air Inlet Grille From Vehicle
    G01587876Courtesy of GENERAL MOTORS CORP.
