Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille to the vehicle.
  2. Install the push-in retainers to the air inlet grille.
  3. Install the large plastic screws to the air inlet grille.

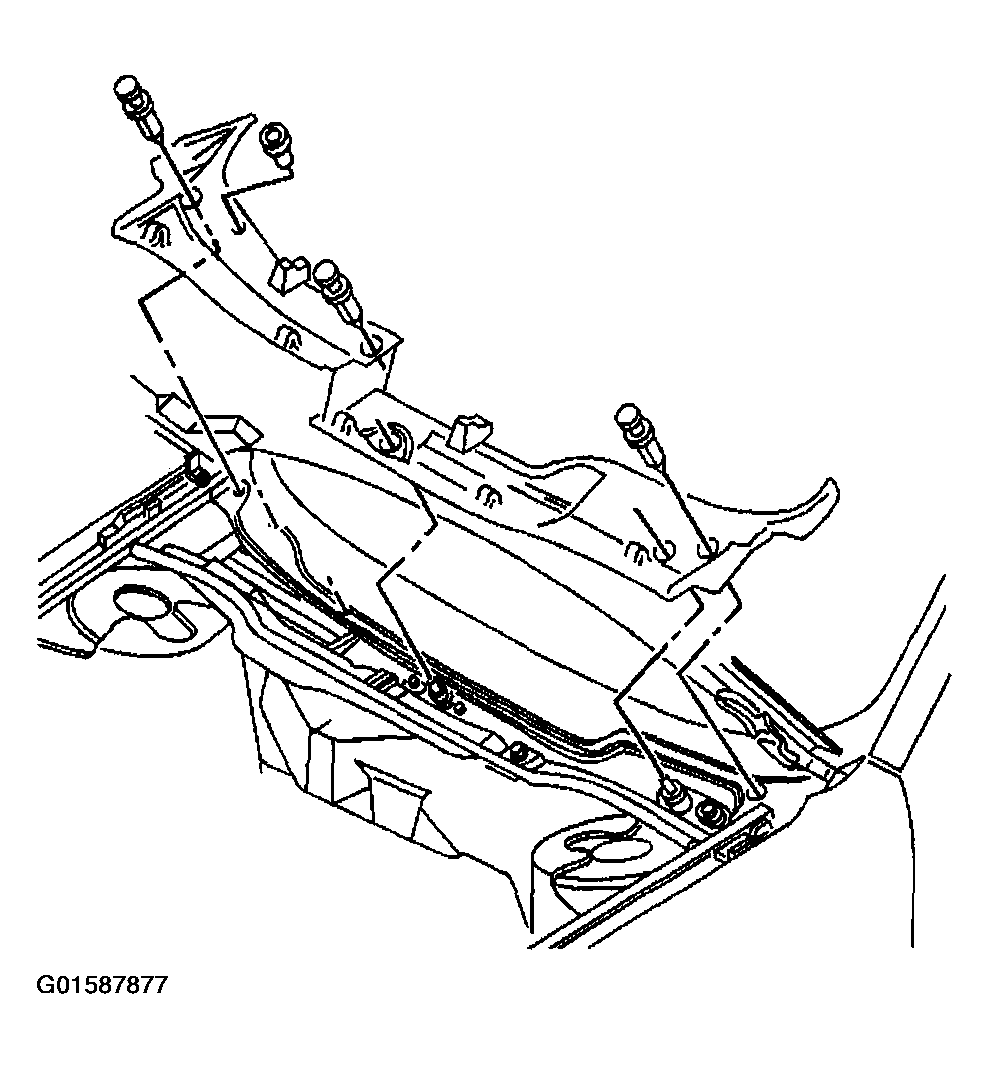

    4. Fig 1: Installing Air Inlet Grille To Vehicle
    G01587877Courtesy of GENERAL MOTORS CORP.
  4. Install the windshield washer hose to the air inlet grille.

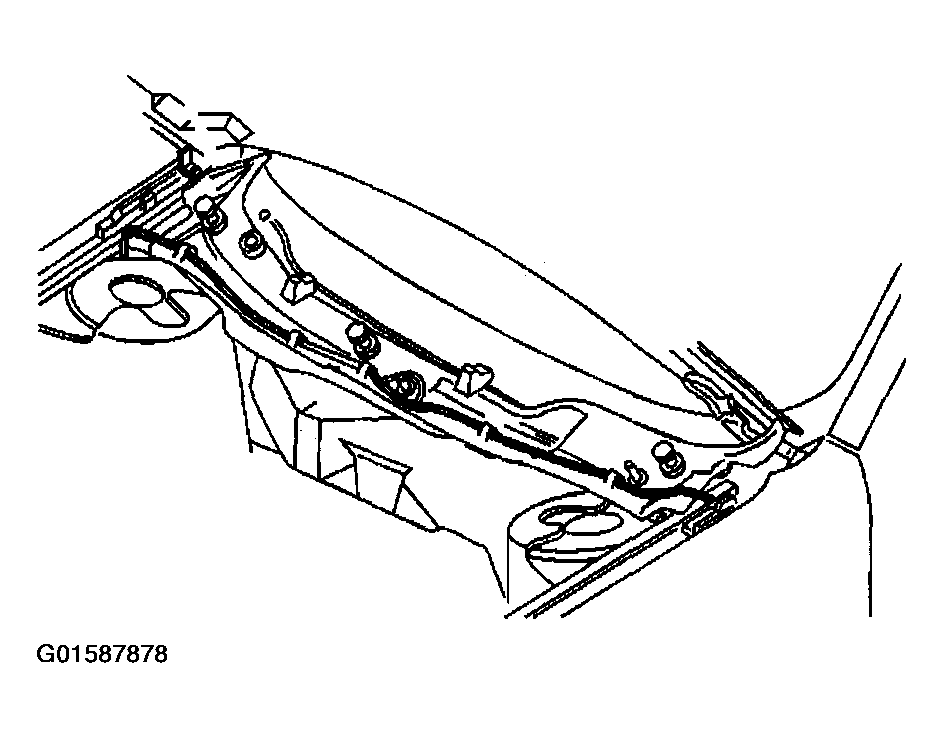

    5. Fig 2: Identifying Windshield Washer Hose Of Air Inlet Grille
    G01587878Courtesy of GENERAL MOTORS CORP.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  6. Close the hood.
