Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Starting at the front and working back, pull the front floor console trim plate upward in order to release the tabs from the retainers.
  2. Disconnect the electrical connectors from the traction control switch, if equipped. Refer to TRACTION CONTROL SWITCH REPLACEMENT in Antilock Brake System.
  3. Remove the front floor console trim plate from the vehicle.

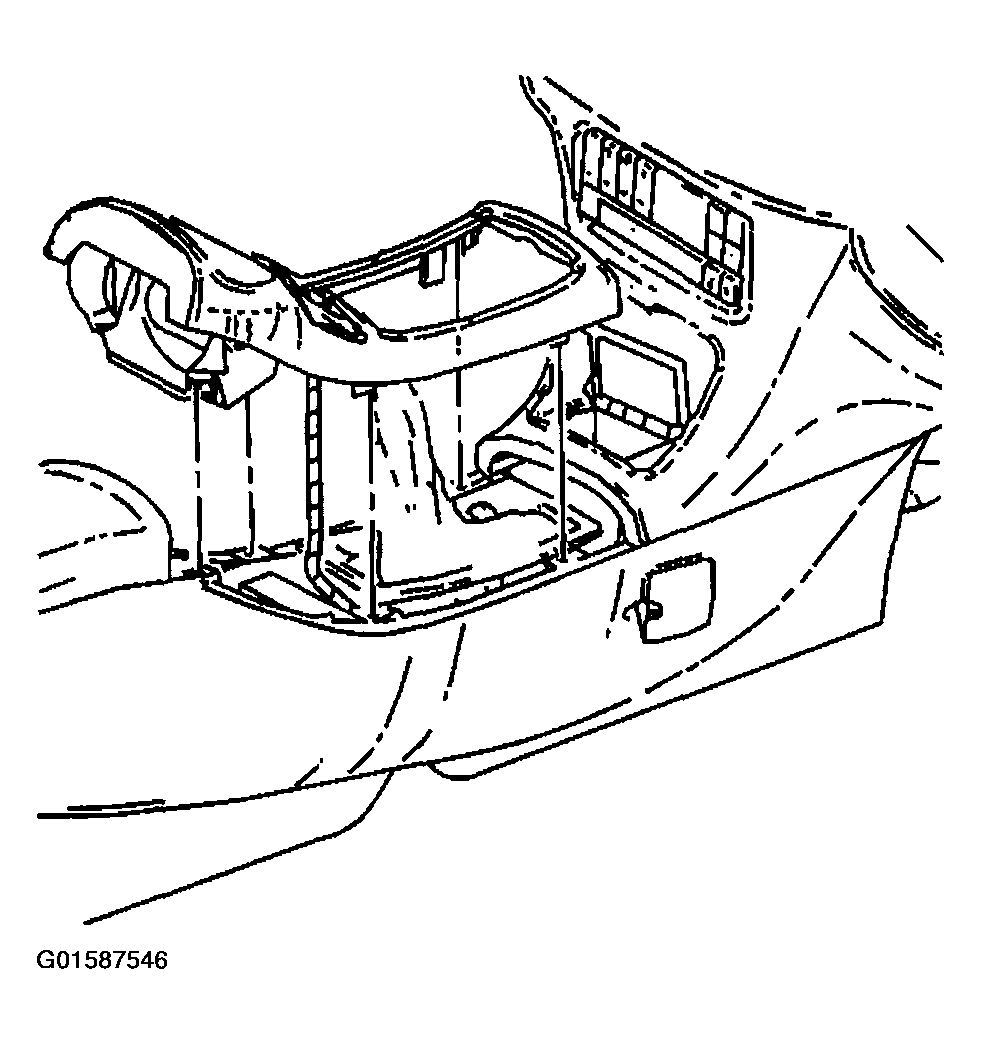

    Fig 1: Removing Front Floor Console Trim Plate From Vehicle
    G01587546Courtesy of GENERAL MOTORS CORP.
