Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the traction control switch. Refer to TRACTION CONTROL SWITCH REPLACEMENT in Antilock Brake System.
  2. Position the front floor console trim plate tabs to the retainers in the front floor console.
  3. Install the front floor console trim plate pressing down until the tabs are fully seated.

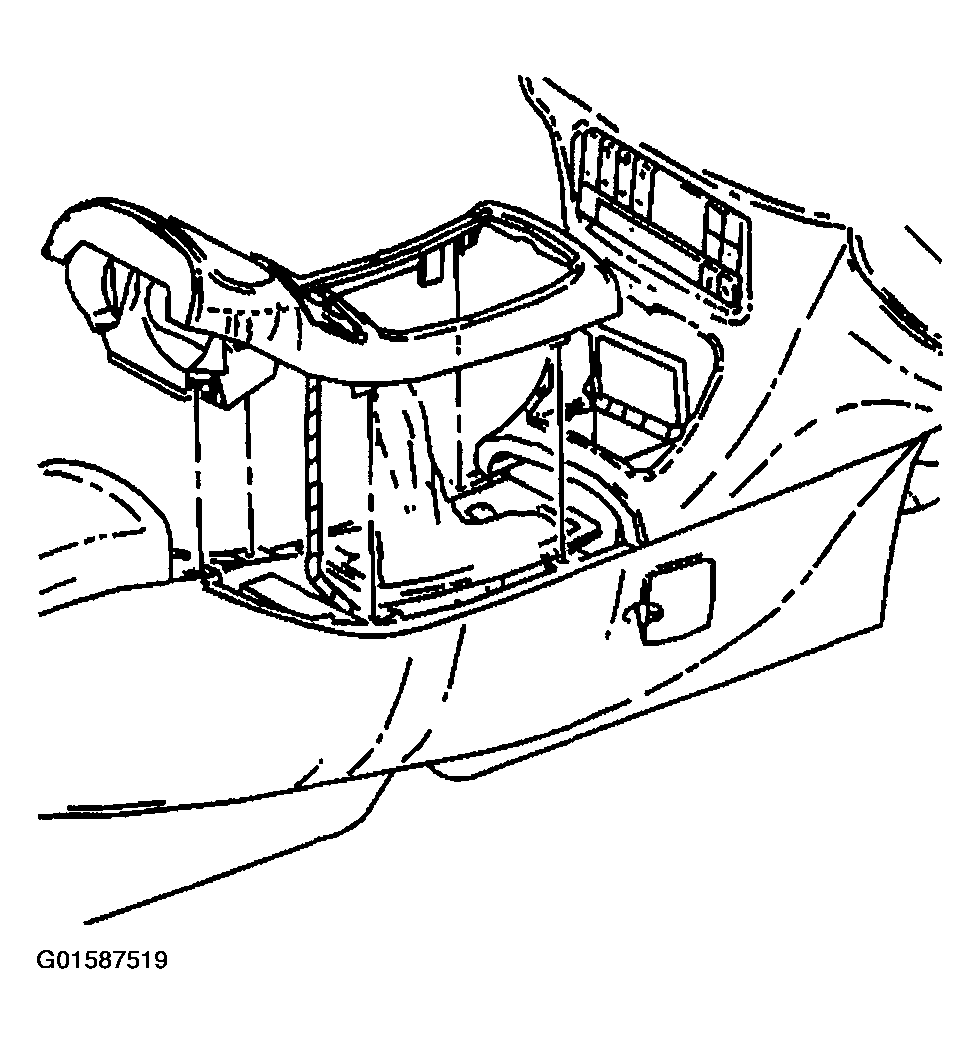

    Fig 1: Installing Front Floor Console Trim Plate
    G01587519Courtesy of GENERAL MOTORS CORP.
