Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
  2. Remove the bolts from the bottom of the steering column filler.
  3. Pull the steering column filler rearward and upward, releasing the retaining clips from the IP.
  4. Disconnect the electrical connector from the driver information center (DIC), if equipped.

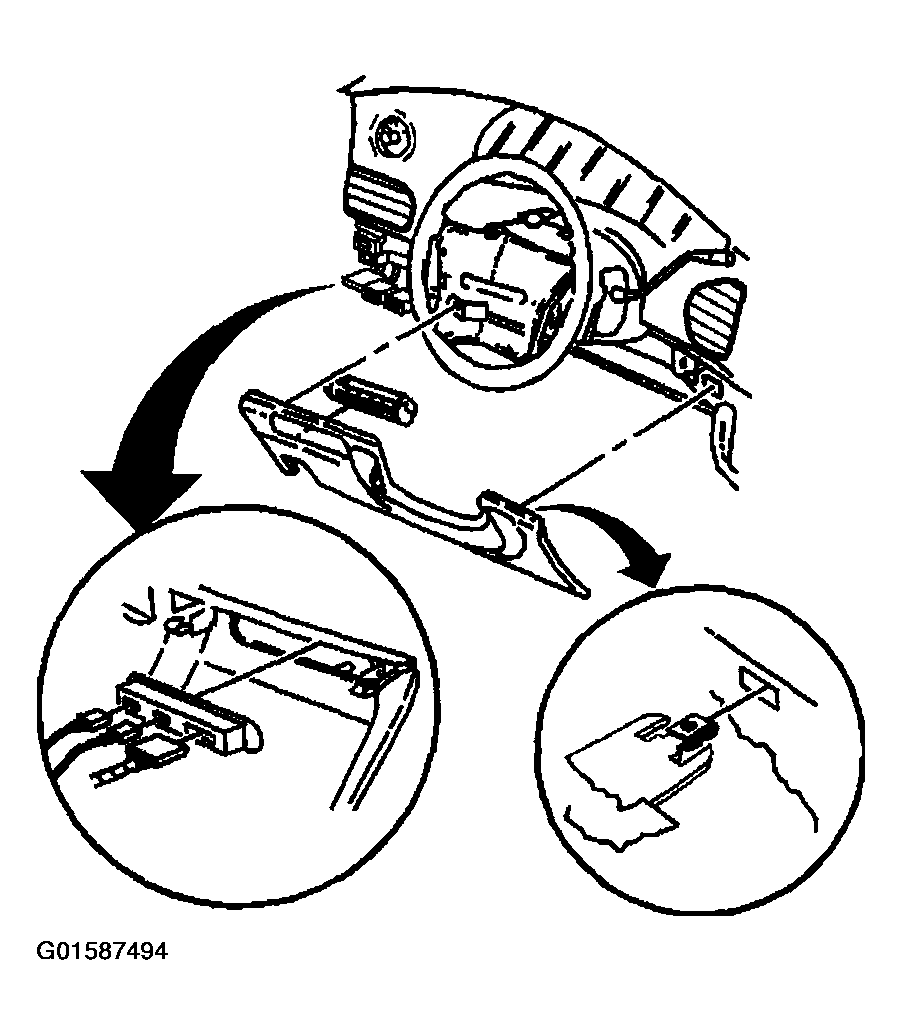

    Fig 1: Disconnecting Driver Information Center (DIC) Electrical Connector
    G01587494Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering column filler.
