Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the driver information center (DIC), if equipped.

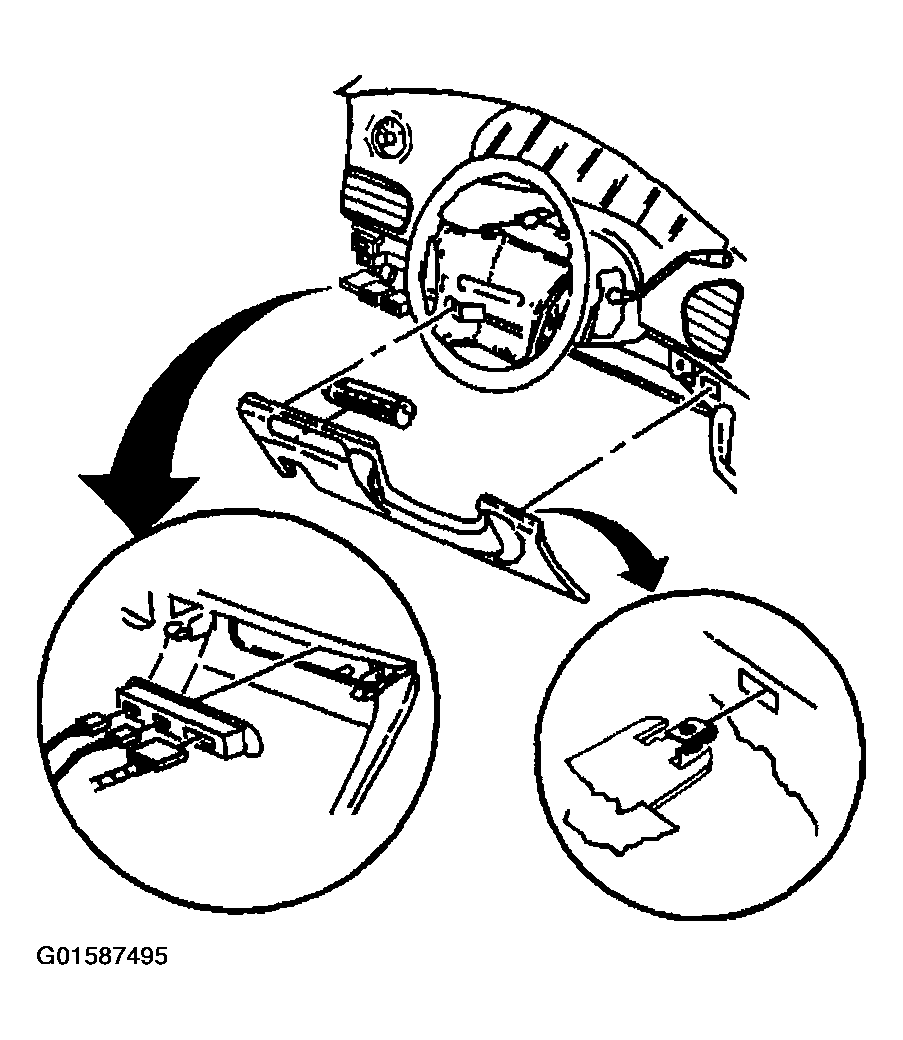

    Fig 1: Connecting Driver Information Center (DIC) Electrical Connector
    G01587495Courtesy of GENERAL MOTORS CORP.
  2. Align the retaining clips and the locating pins on the steering column filler to the slots in the IP.
  3. Press the steering column filler in order to lock in the retainers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts to the bottom of the steering column filler.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  5. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
