Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster to the instrument panel (I/P).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts which secure the knee bolster to the steering column support.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

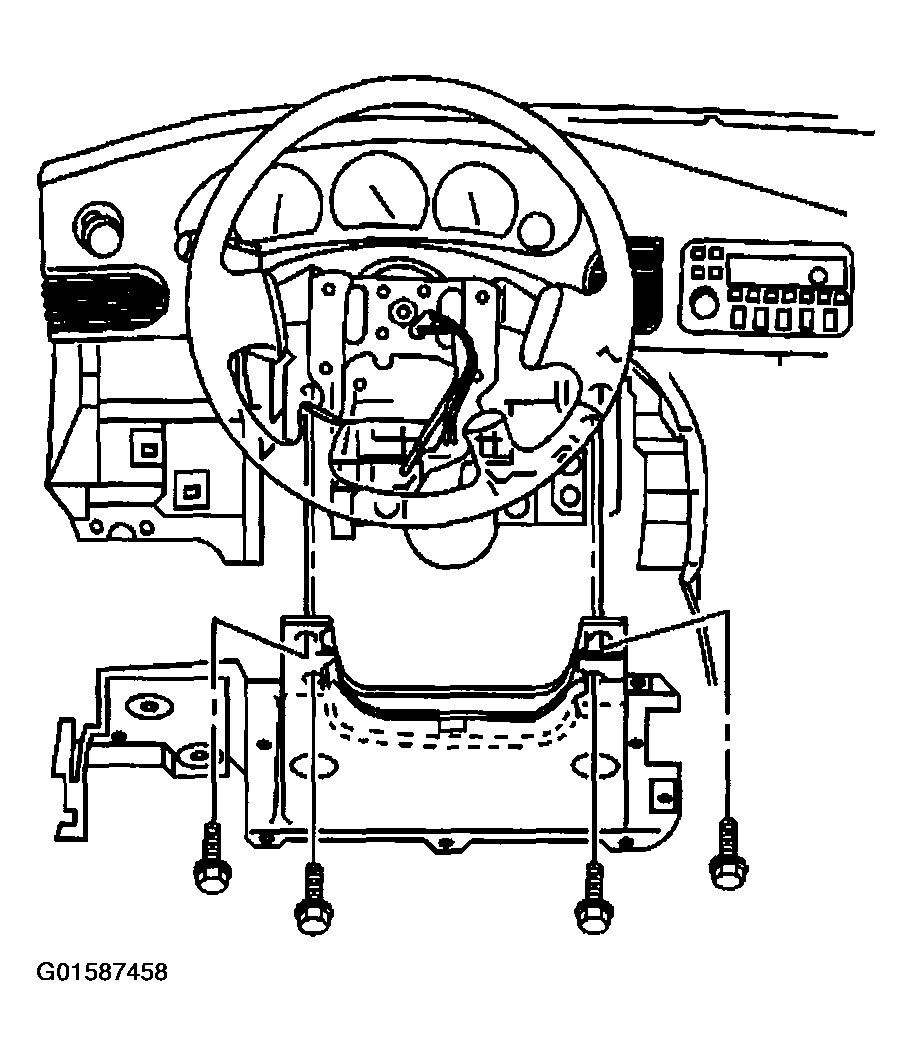

    Fig 1: Installing Knee Bolster To Steering Column Support Mounting Bolts
    G01587458Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts which secure the knee bolster to the I/P.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

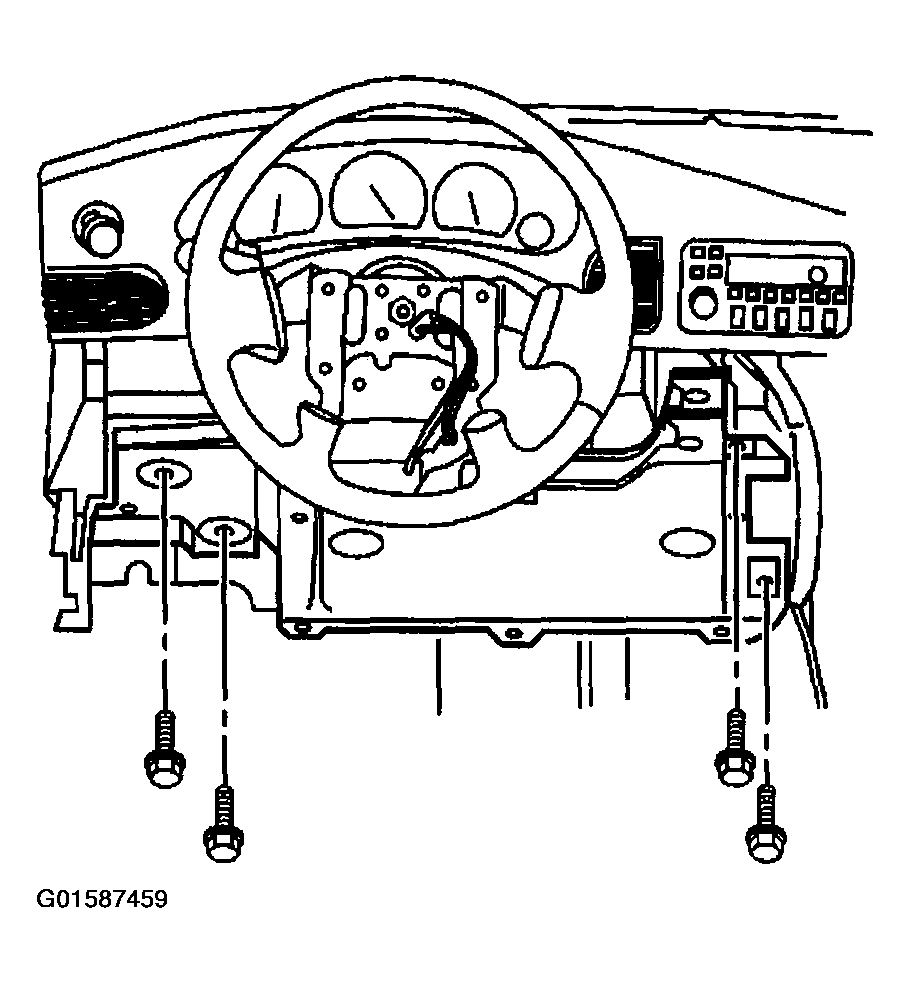

    Fig 2: Installing Knee Bolster & I/P Mounting Bolts
    G01587459Courtesy of GENERAL MOTORS CORP.
  4. Install the steering column opening filler. Refer to STEERING COLUMN FILLER REPLACEMENT  .
  5. Install the left I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
