Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
Disconnect the required lamp from the cluster turning counterclockwise.

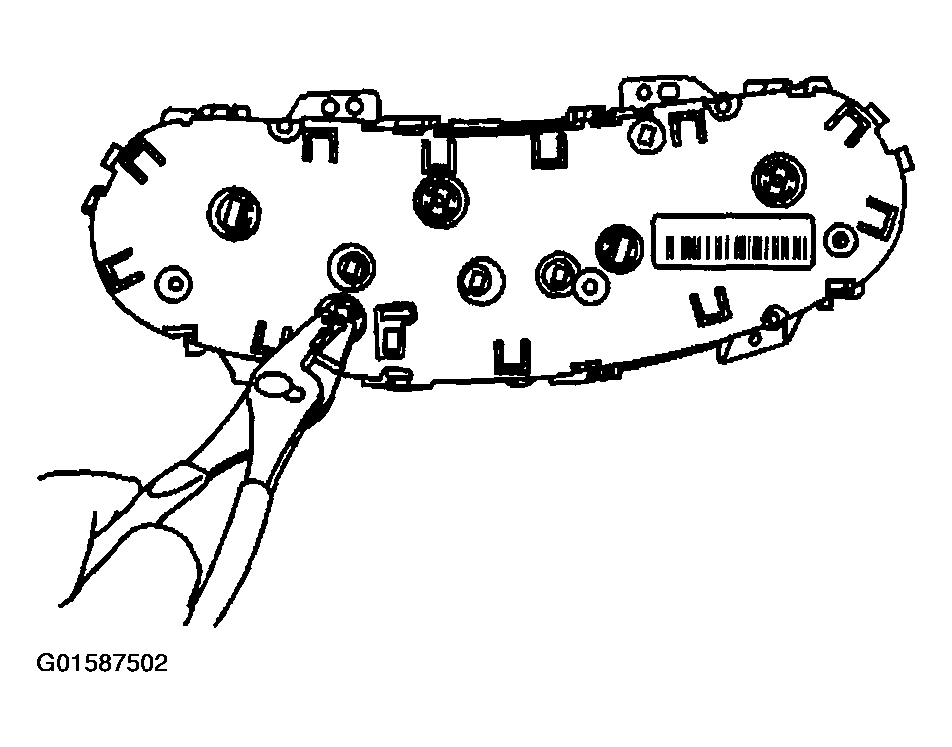

Fig 1: Disconnecting I/P Cluster Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the lamp from the cluster

Fig 2: Removing I/P Cluster Lamp From Cluster
Courtesy of GENERAL MOTORS CORP.
Remove the bulb from the lamp socket, by pulling out.

Fig 3: Removing Bulb From I/P Cluster Lamp Socket
Courtesy of GENERAL MOTORS CORP.
