Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the lamp socket pressing into place until fully seated.

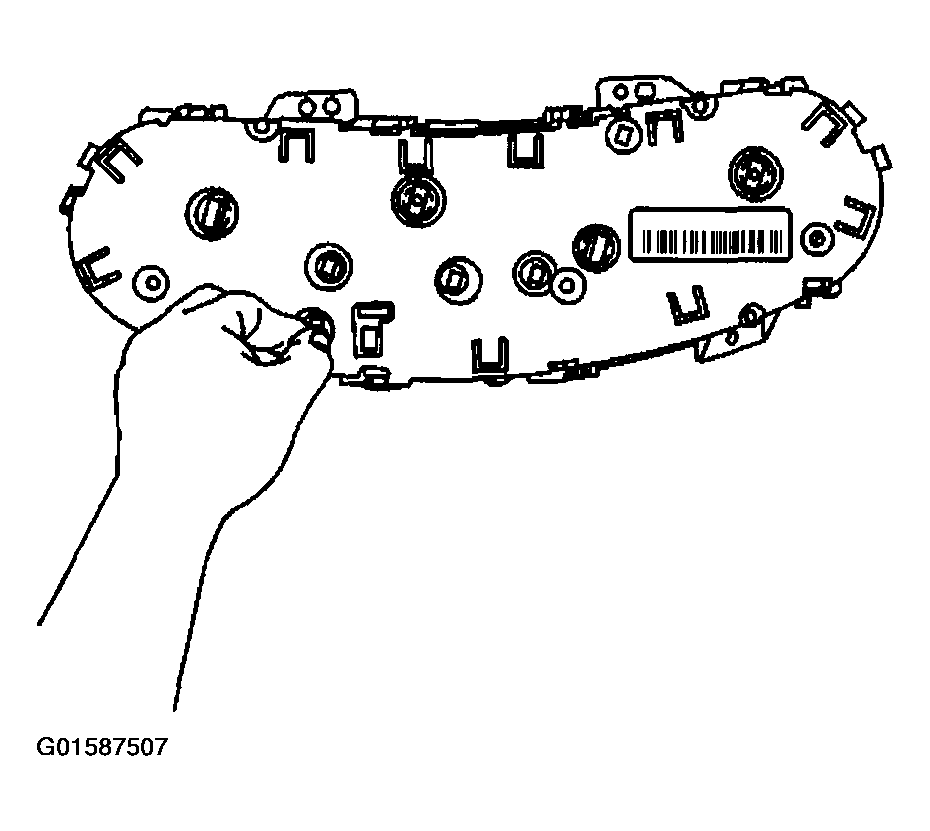

Fig 1: Installing Bulb From I/P Cluster Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Install the required lamp to the cluster.

Fig 2: Installing Required Lamp To I/P Cluster
Courtesy of GENERAL MOTORS CORP.
Connect the required lamp to the cluster turning clockwise.

Fig 3: Connecting I/P Cluster Lamp
Courtesy of GENERAL MOTORS CORP.
Install the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
