Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column opening filler. Refer to STEERING COLUMN FILLER REPLACEMENT  .
  2. Disconnect the electrical connectors from the driver information center.
  3. Depress the retainers on the driver information center, use a small flat-bladed tool.
  4. Remove the driver information center from the steering column filler.

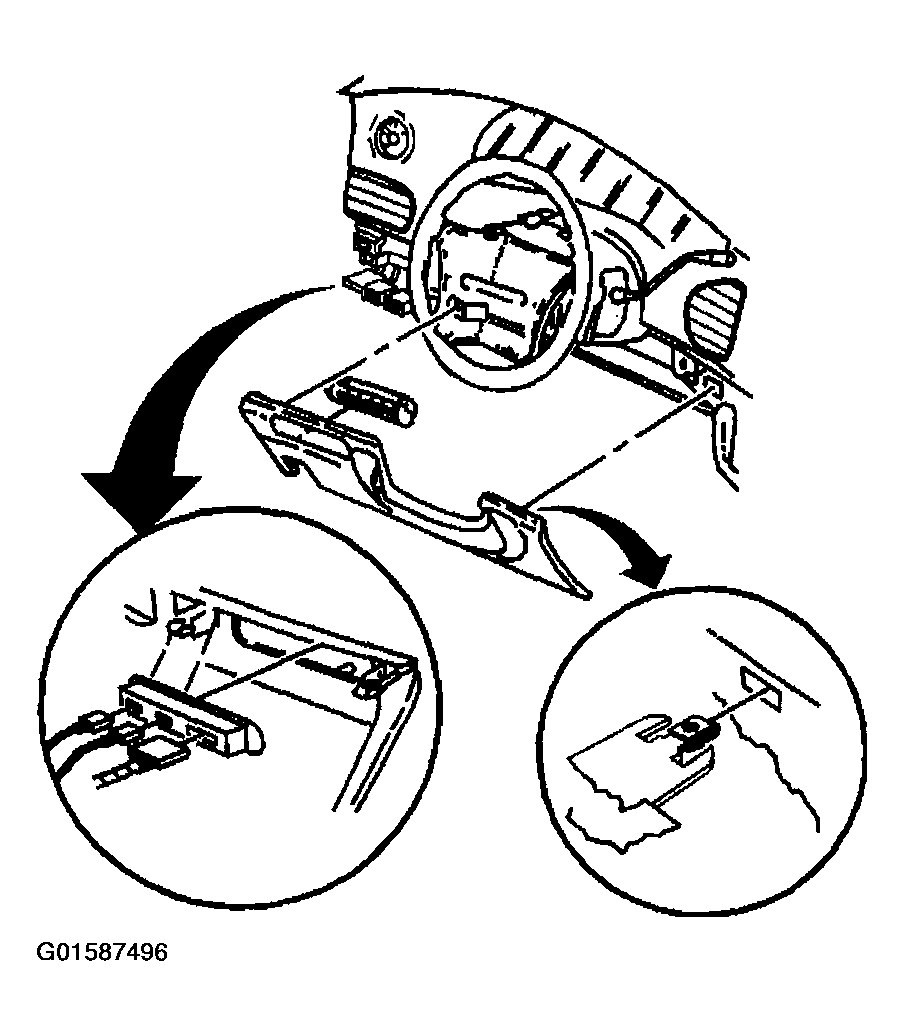

    Fig 1: Removing Driver Information Center From Steering Column Filler
    G01587496Courtesy of GENERAL MOTORS CORP.
