Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the front floor console armrest to the hinge at the front floor console.

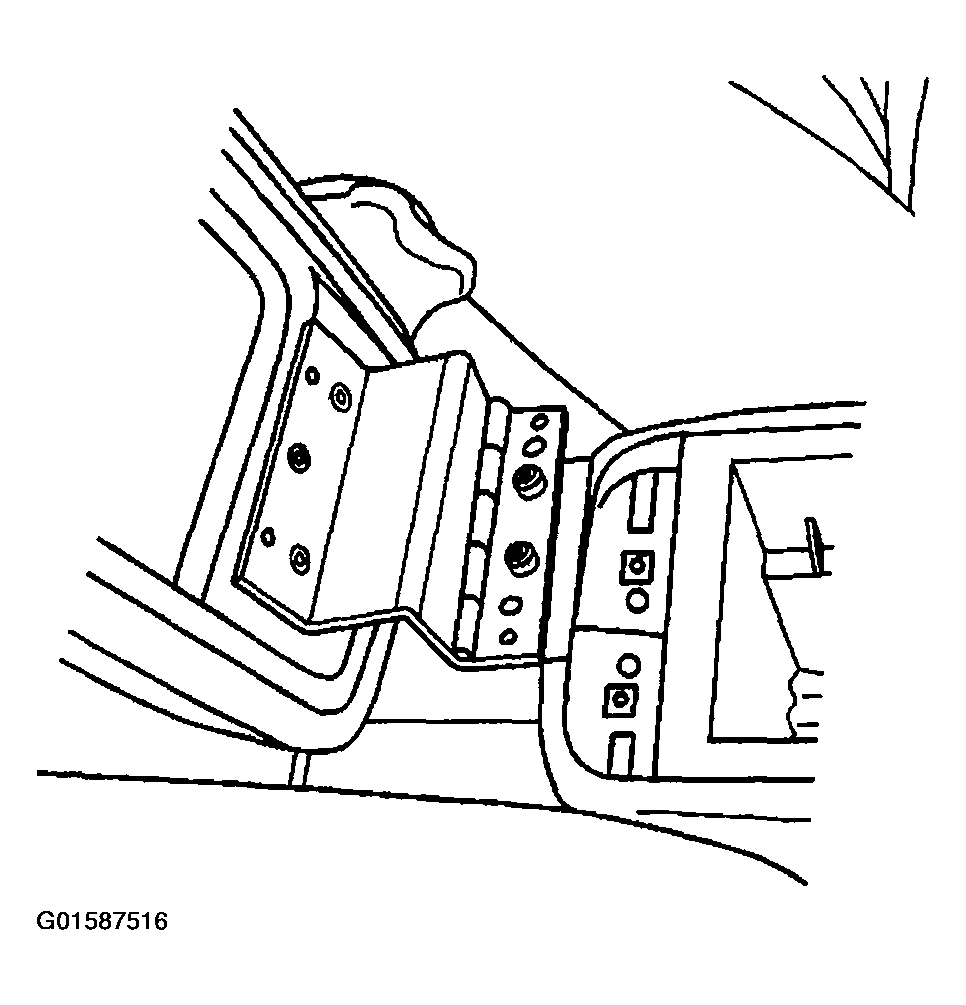

Fig 1: Installing Front Floor Console Armrest
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the front floor console armrest hinge.
Tighten

Tighten the screws to 2 N.m (18 lb in).

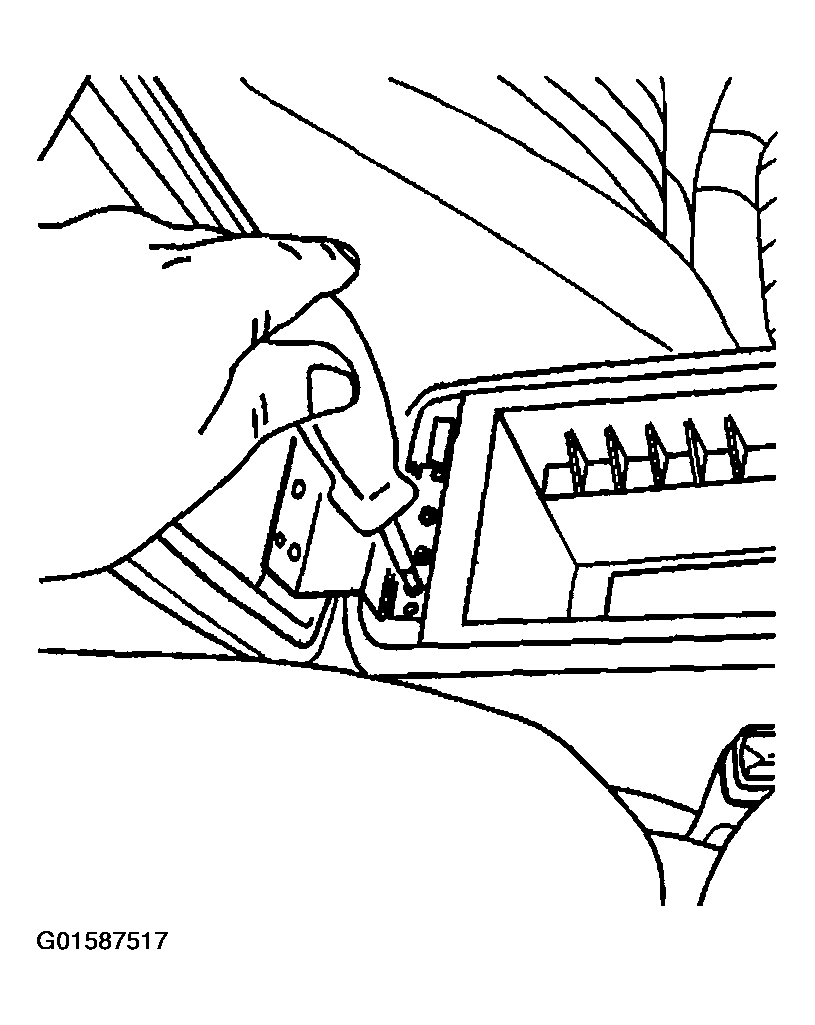

Fig 2: Installing Screws To Front Floor Console Armrest Hinge
Courtesy of GENERAL MOTORS CORP.
Lower the front floor console armrest.
