Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06)  .
  2. Remove the console compartment door panel screws.

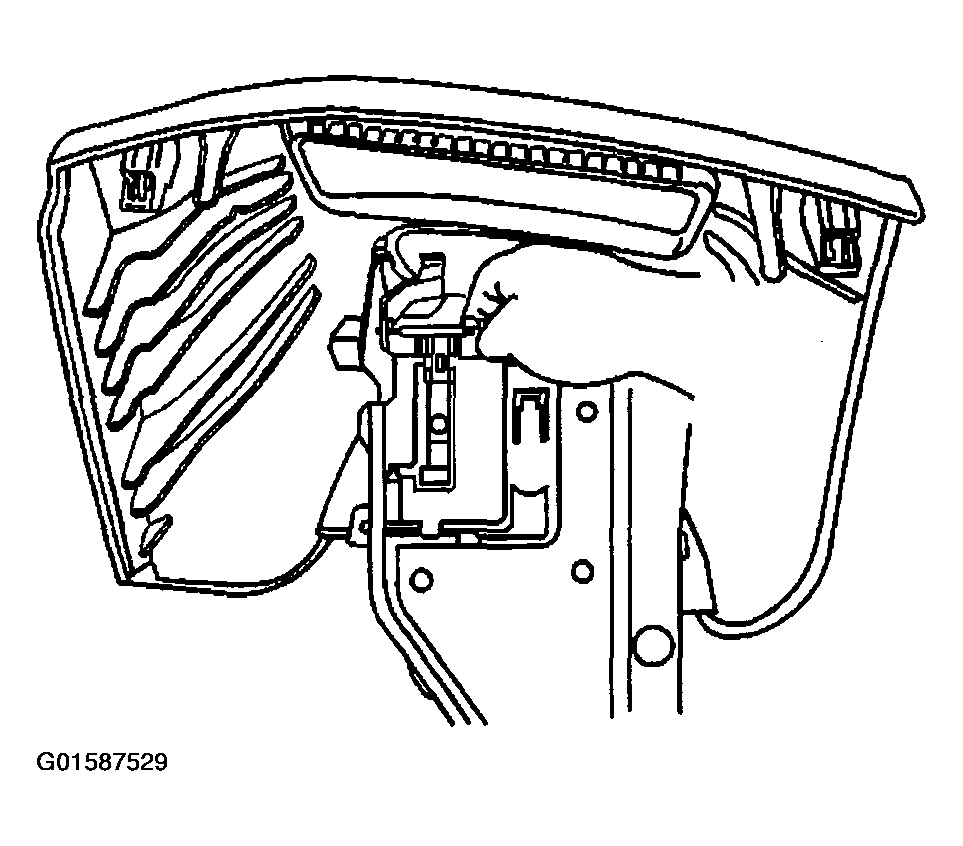

    Fig 1: Removing Console Compartment Door Panel Screws
    G01587529Courtesy of GENERAL MOTORS CORP.
  3. Remove the console front compartment screws.

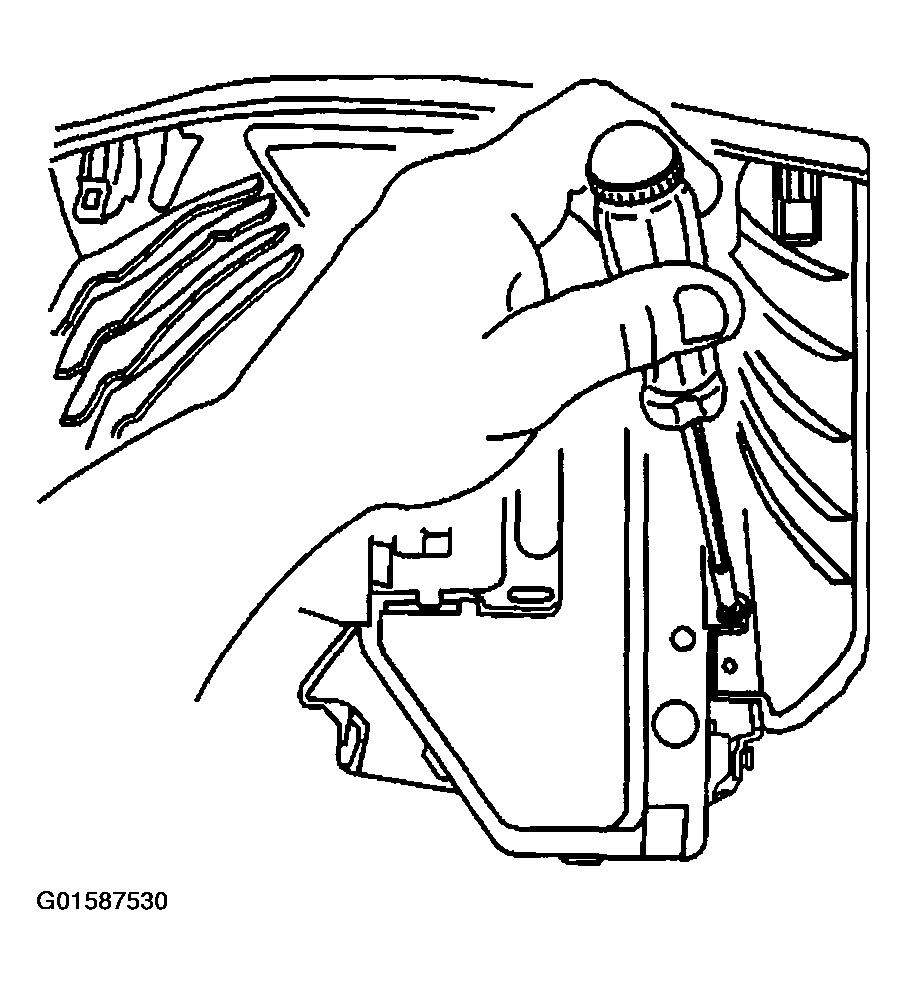

    Fig 2: Removing Console Front Compartment Screws
    G01587530Courtesy of GENERAL MOTORS CORP.
  4. Remove the console front compartment from the floor console by pulling out.

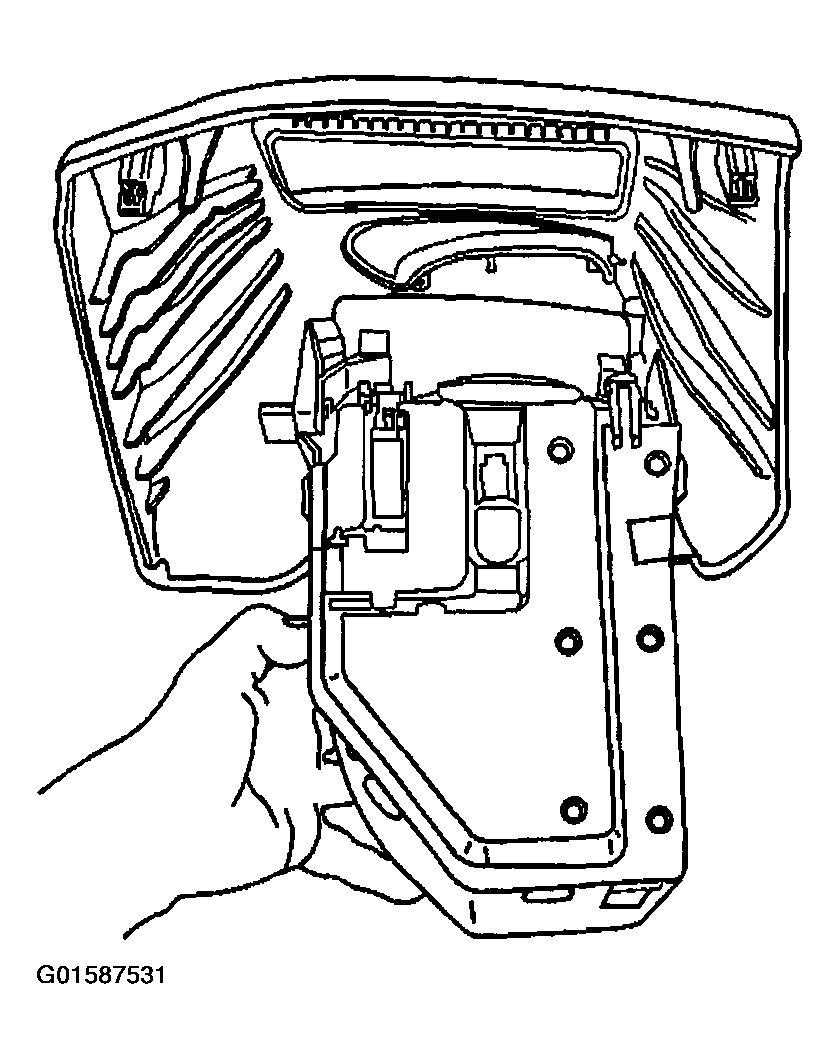

    Fig 3: Removing Front Compartment Console From Floor Console
    G01587531Courtesy of GENERAL MOTORS CORP.
