Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the console front compartment to the floor console.

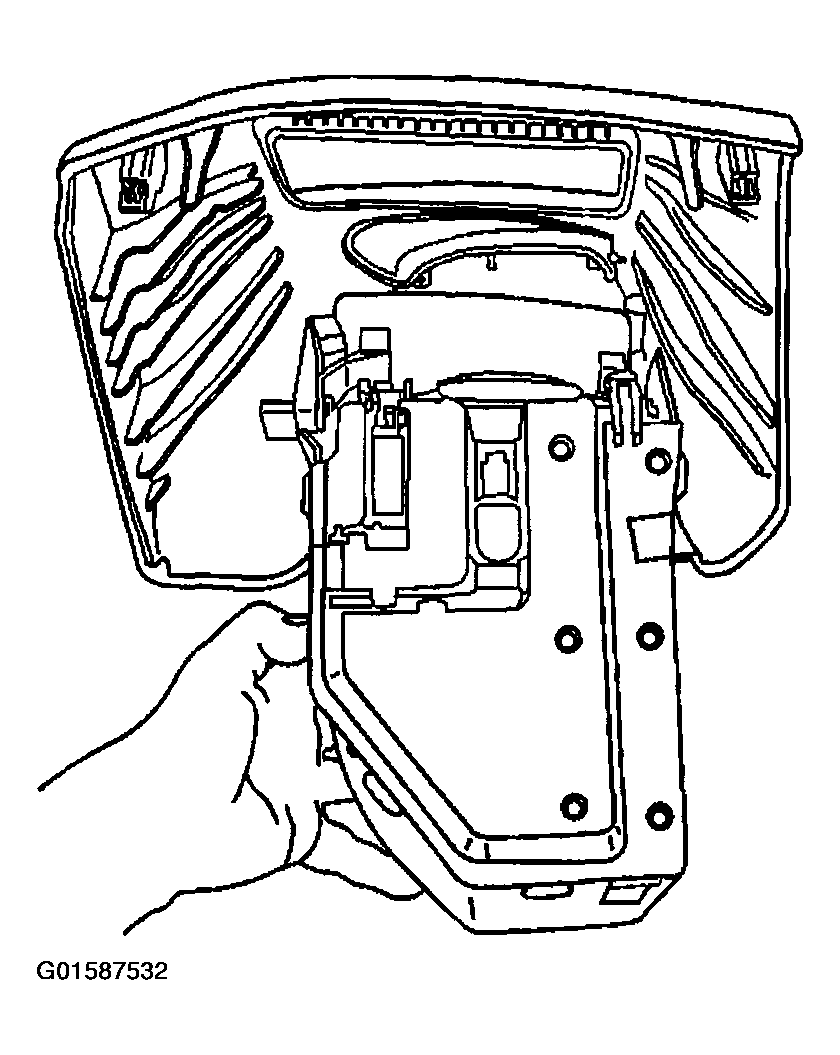

    Fig 1: Installing Front Compartment Console To Floor Console
    G01587532Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the console front compartment screws.

    Tighten

    Tighten the console front compartment screws to 2 N.m (18 lb in).

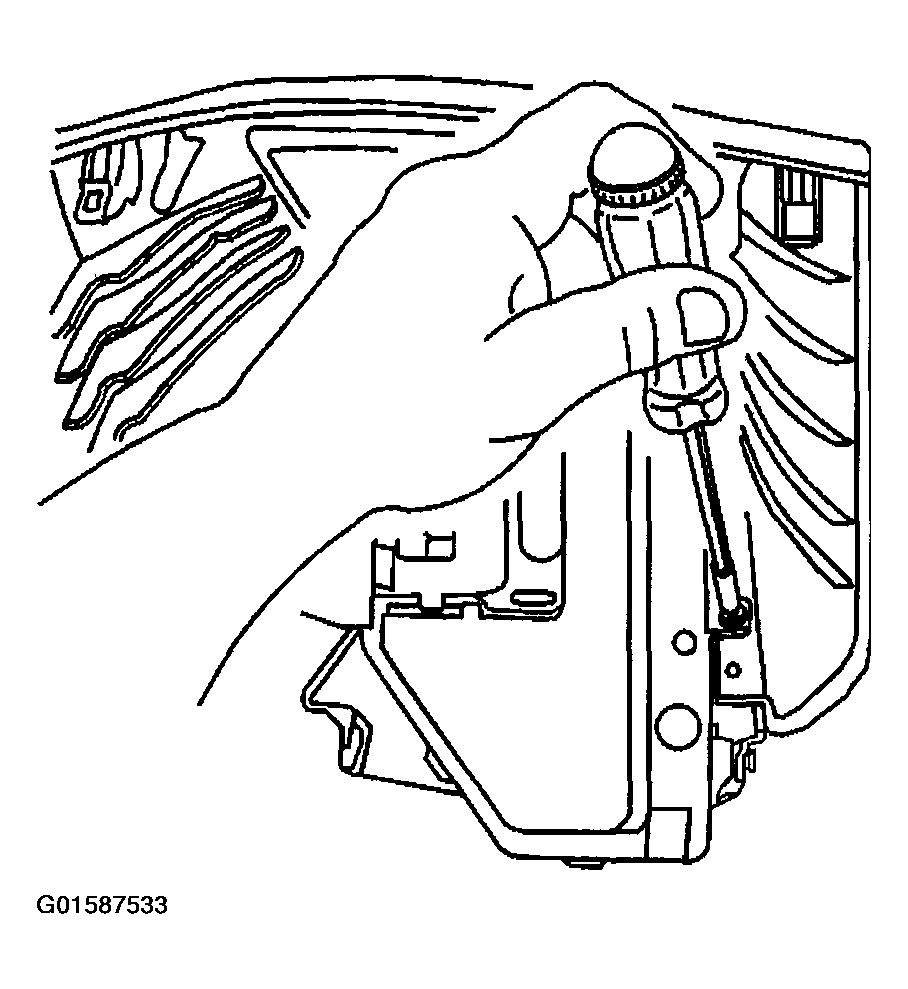

    Fig 2: Installing Front Compartment Console Screws
    G01587533Courtesy of GENERAL MOTORS CORP.
  3. Install the console front compartment door panel screws.

    Tighten

    Tighten the console compartment door panel screws to 2 N.m (18 lb in).

  4. Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06)  .

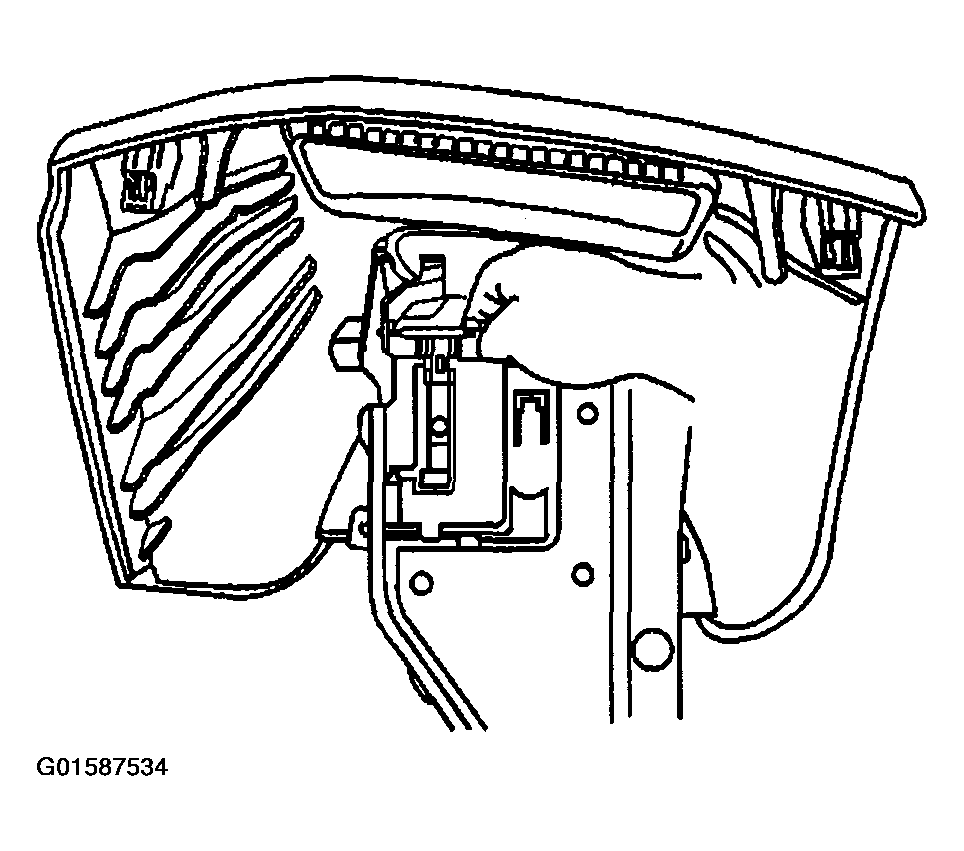

    Fig 3: Installing Front Compartment Console Door Panel Screws
    G01587534Courtesy of GENERAL MOTORS CORP.
