Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38778 Door Trim Pad Clip Remover. See Special Tools and Equipment .

Use J 38778 in order to remove the insulator retainers from the right instrument panel (I/P).
Adjust the carpeting for access.

Fig 1: Removing Closeout/Insulator Panel Retainers
Courtesy of GENERAL MOTORS CORP.
Disconnect the courtesy lamp from the I/P insulator by turning the lamp 1/4 turn counterclockwise.
Remove the right I/P insulator.

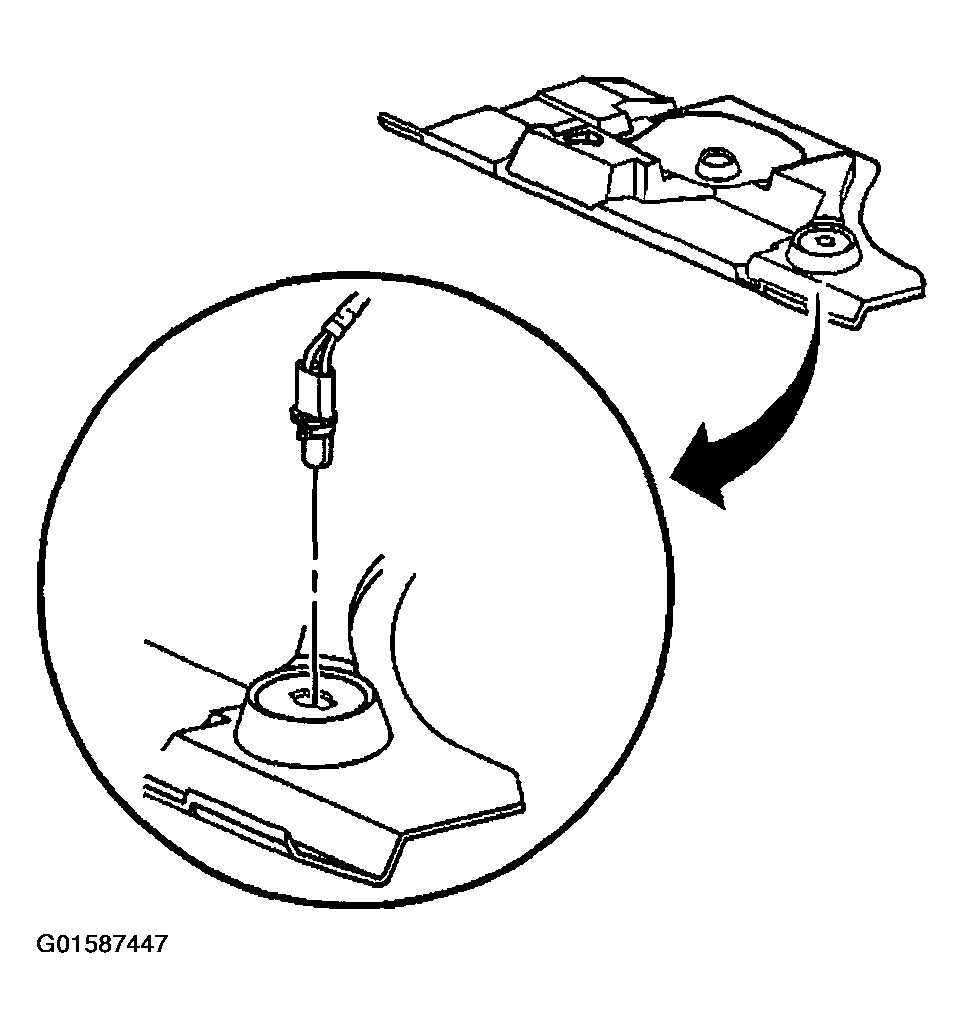

Fig 2: Disconnecting Courtesy Lamp From I/P Insulator
Courtesy of GENERAL MOTORS CORP.
