Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right I/P insulator to the floorpan beneath the I/P.
  2. Install the courtesy lamp to the I/P insulator. Rotate the lamp 1/4 turn clockwise to secure the lamp.

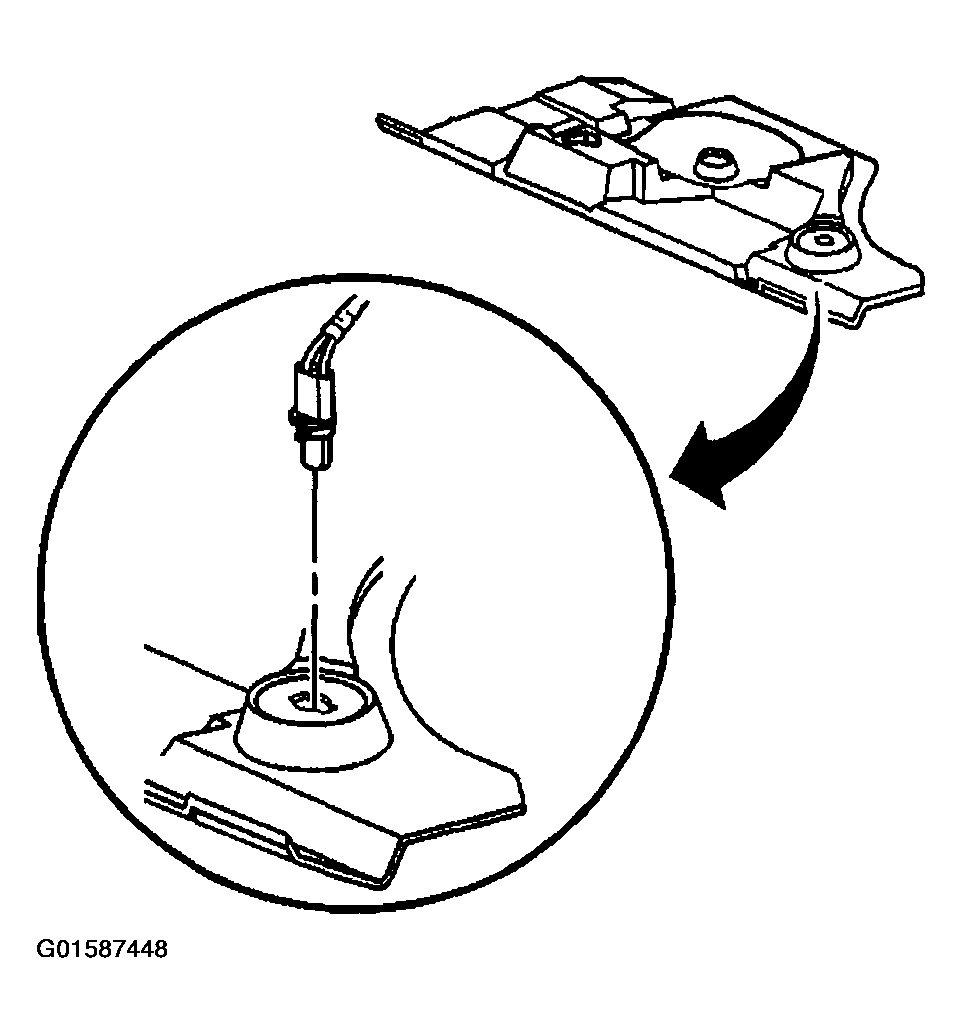

    Fig 1: Connecting Courtesy Lamp To I/P Insulator
    G01587448Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the right I/P insulator does not block the floor heater outlet.
  3. Install the right I/P insulator retainers.
  4. Return the carpet to the original position.
    Fig 2: Installing Right I/P Insulator Retainers
    G01587449Courtesy of GENERAL MOTORS CORP.
