Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38778 Door Trim Pad Clip Remover. See Special Tools and Equipment .

Use J 38778 in order remove the left instrument panel (I/P) insulator retainers from the filler panel on the steering column opening.

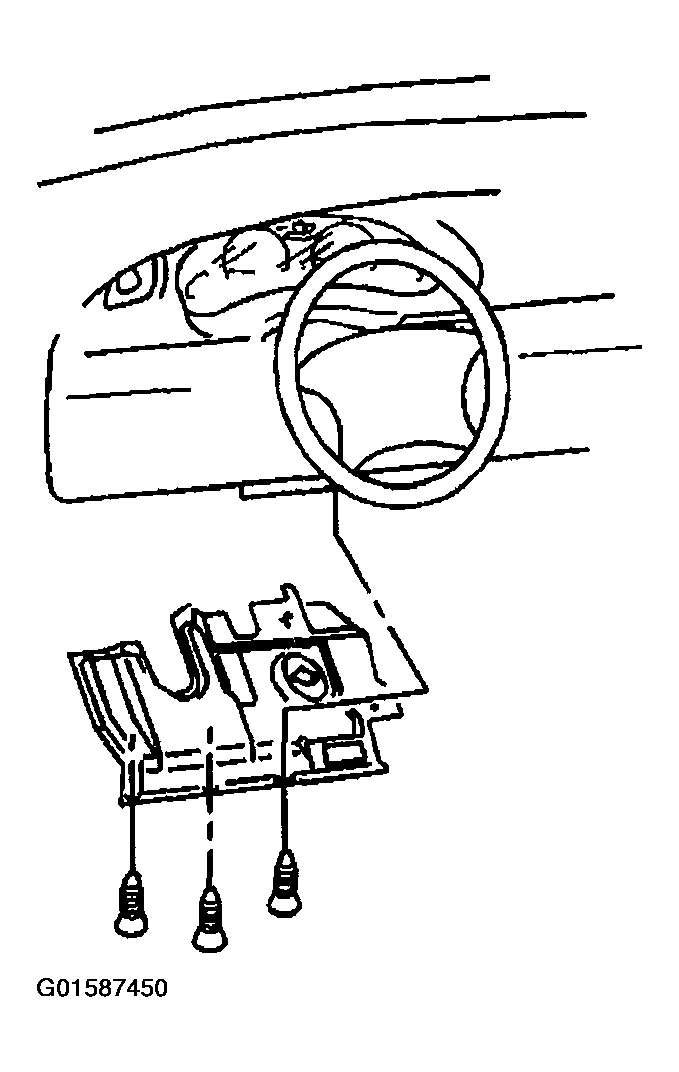

Fig 1: Removing Left Instrument Panel (I/P) Insulator Retainers
Courtesy of GENERAL MOTORS CORP.
Disconnect the courtesy lamp from the I/P insulator by turning the lamp 1/4 turn counterclockwise.

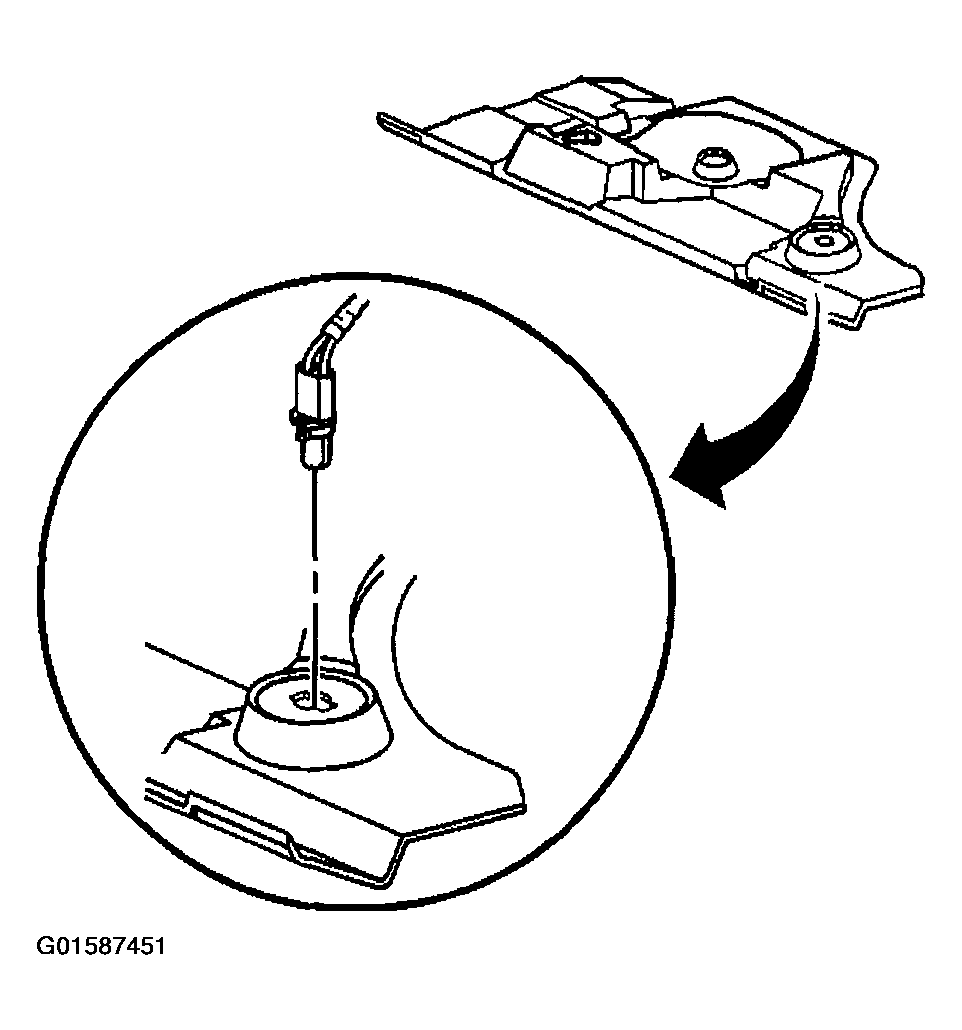

Fig 2: Disconnecting Courtesy Lamp From I/P Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the left I/P insulator from the stud at the accelerator pedal.

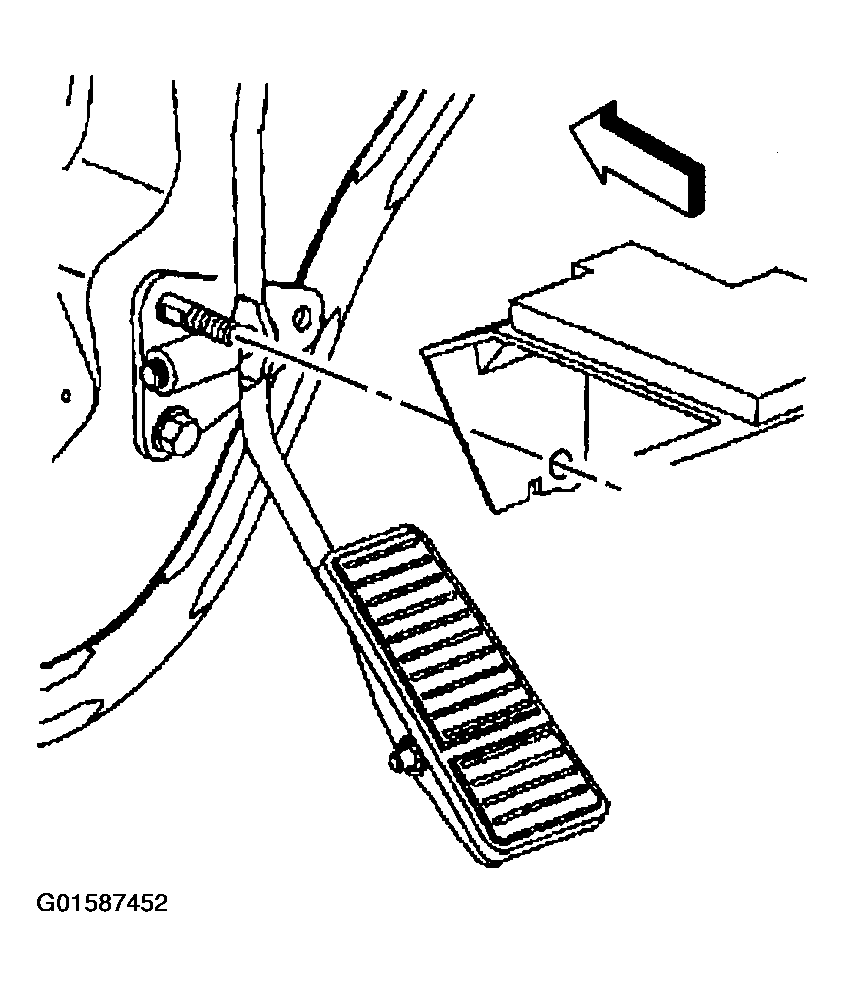

Fig 3: Removing Left I/P Insulator From Stud At Accelerator Pedal
Courtesy of GENERAL MOTORS CORP.
Remove the left I/P insulator.
