Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the left I/P insulator to the I/P.

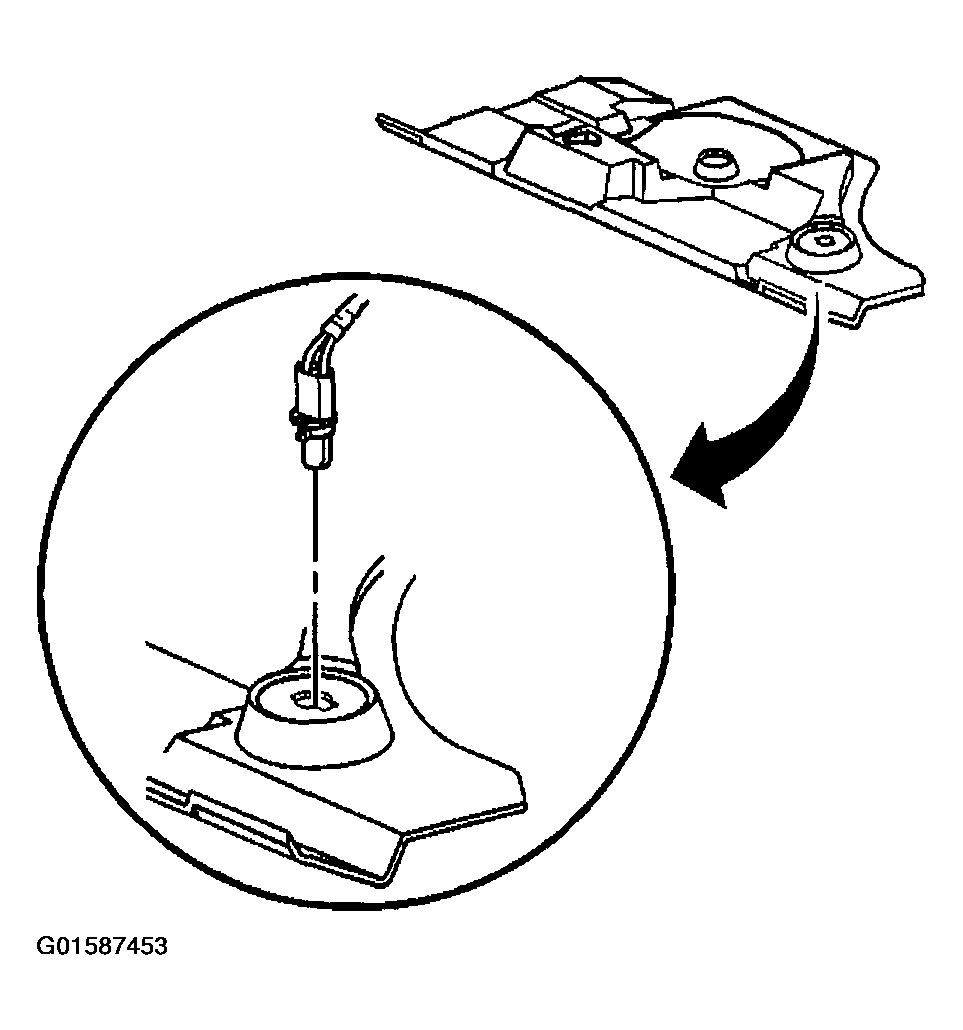

Install the courtesy lamp to the I/P insulator then rotate 1/4 turn clockwise to secure.

Fig 1: Installing Courtesy Lamp To I/P Insulator
Courtesy of GENERAL MOTORS CORP.

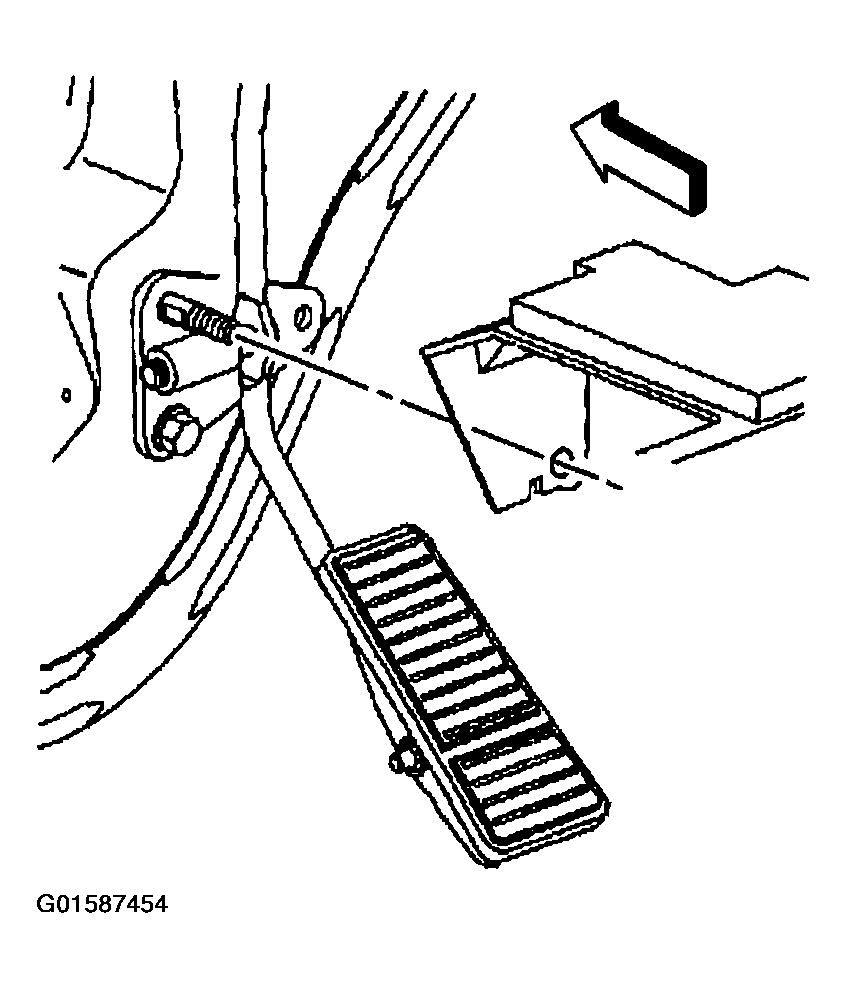

Install the left I/P insulator to the stud at the accelerator pedal.

Fig 2: Installing Left I/P Insulator To Stud At Accelerator Pedal
Courtesy of GENERAL MOTORS CORP.

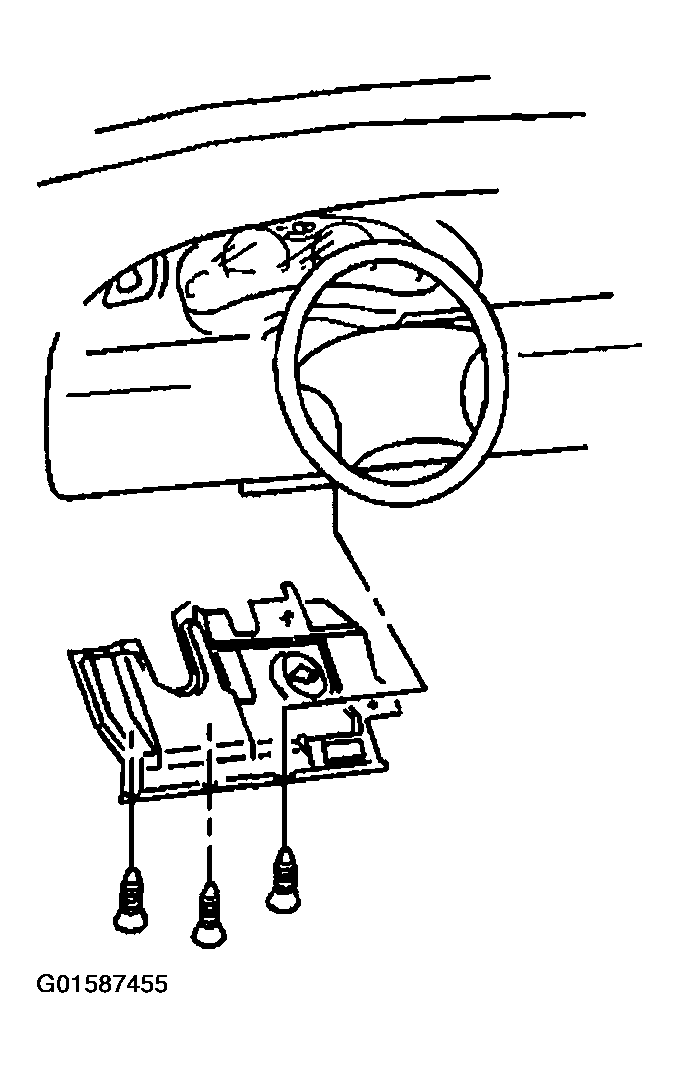

Install the left I/P insulator retainers to the filler panel on the steering column opening.

Fig 3: Installing Left I/P Insulator Retainers
Courtesy of GENERAL MOTORS CORP.
