Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the connector through the retainer. Align the lighter receptacle retainer to the slot in the opening.
  2. Install the retainer by pressing into place until fully seated.

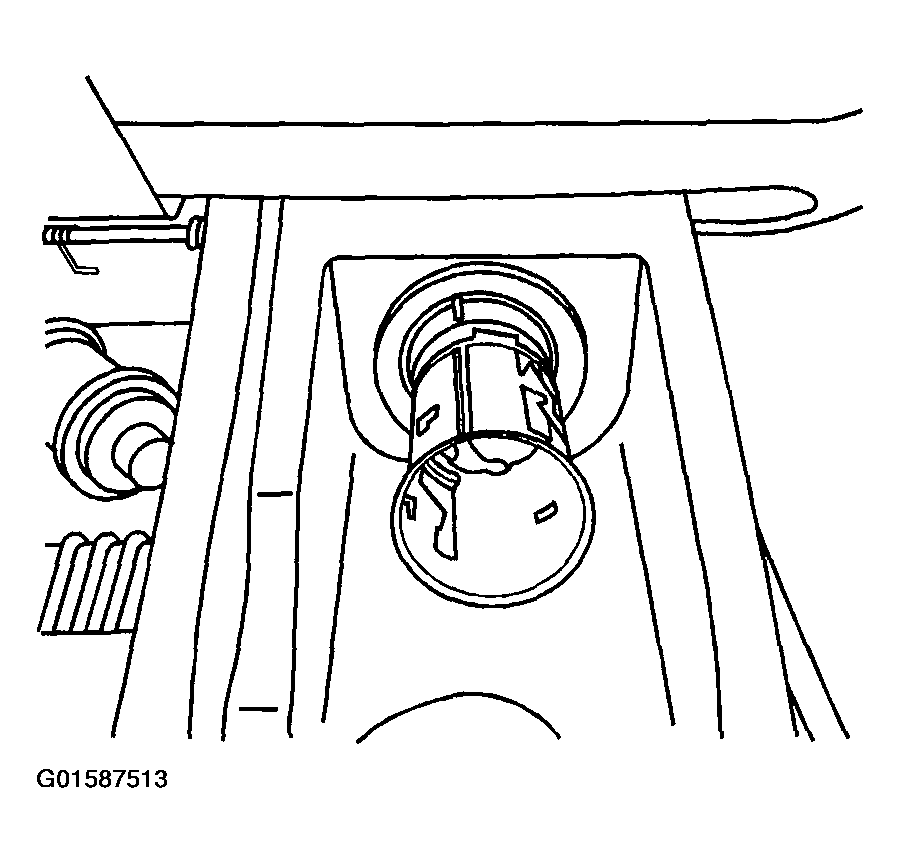

    Fig 1: Installing Lighter Receptacle
    G01587513Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the receptacle.
  4. Align the tabs on the receptacle to the slots in the retainer. Install the lighter receptacle by pressing into place until fully seated.
  5. Install the lighter fuse.
