Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ashtray.
  2. Position the instrument panel ashtray (2) to the Instrument panel accessory trim plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws (1) to the instrument panel ashtray bracket.

    Tighten

    Tighten the instrument panel ashtray bracket screws to 2 N.m (18 lb in).

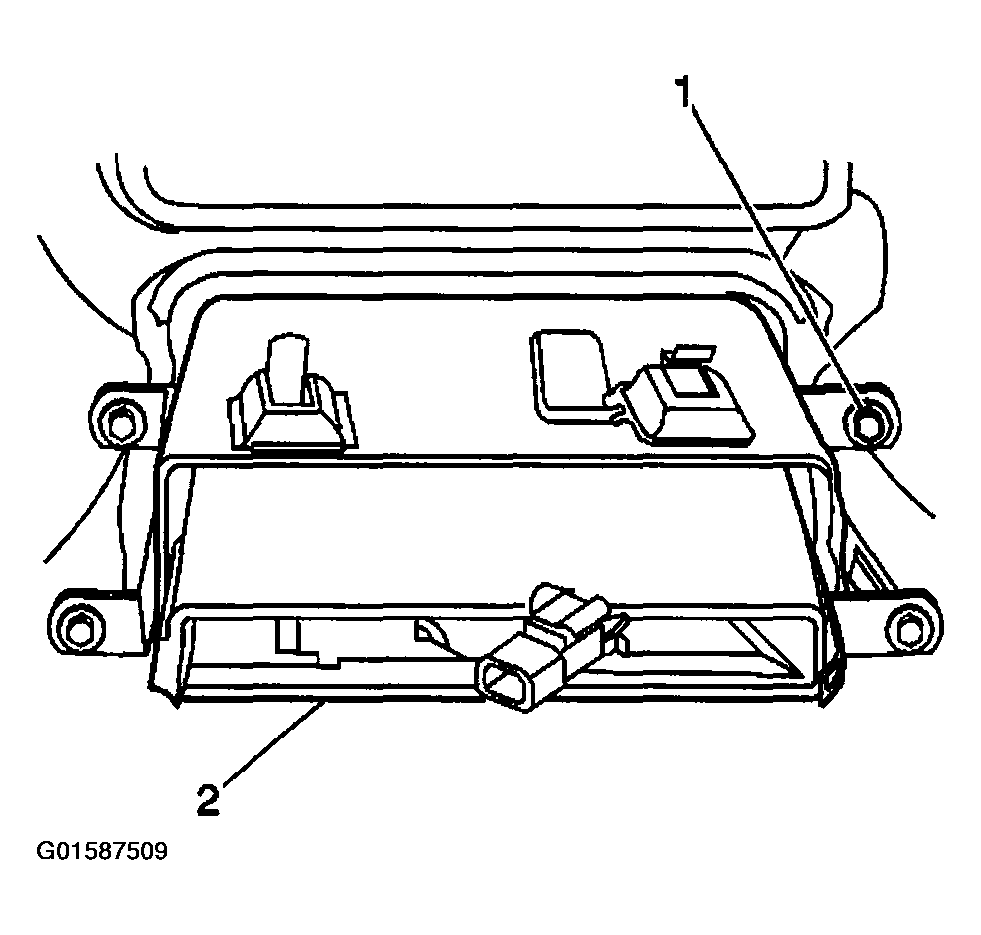

    Fig 1: Locating Instrument Panel Ashtray Bracket Retaining Screws
    G01587509Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  .
