Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

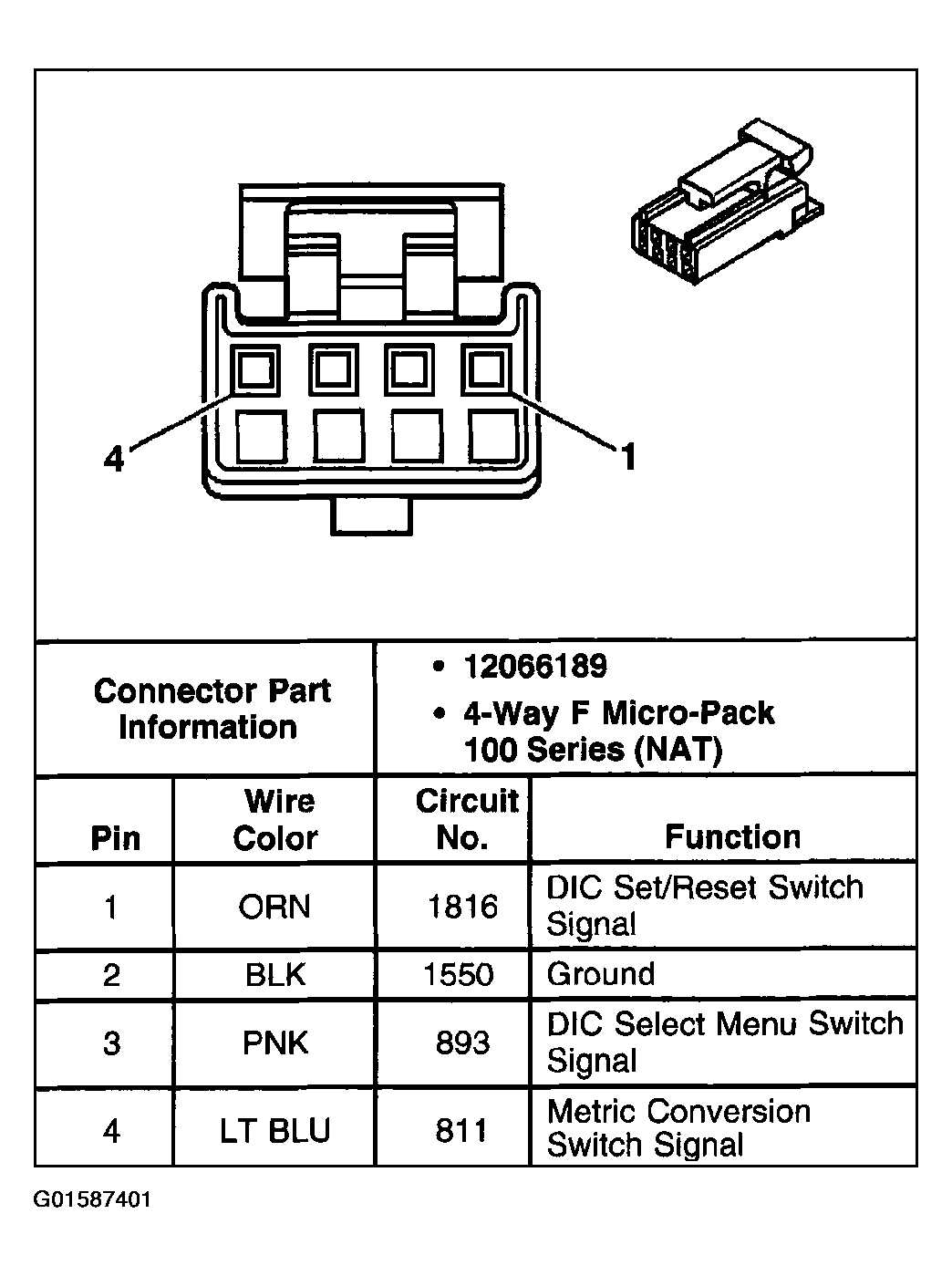

Fig 1: Driver Information Center (DIC) Switch Connector End View (Regal)

Courtesy of GENERAL MOTORS CORP.

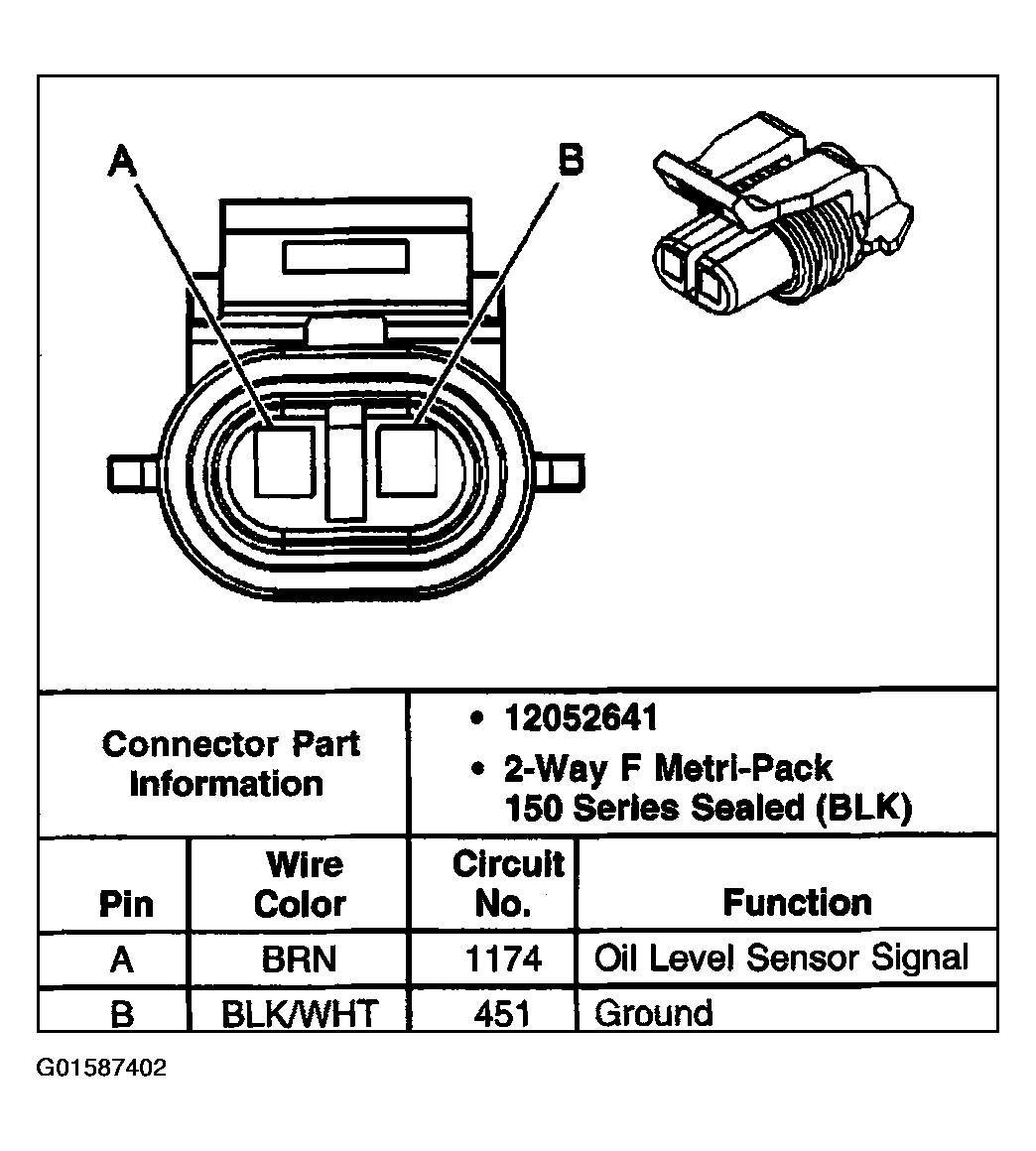

Fig 2: Engine Oil Level Sensor Connector End View (If Equipped)

Courtesy of GENERAL MOTORS CORP.

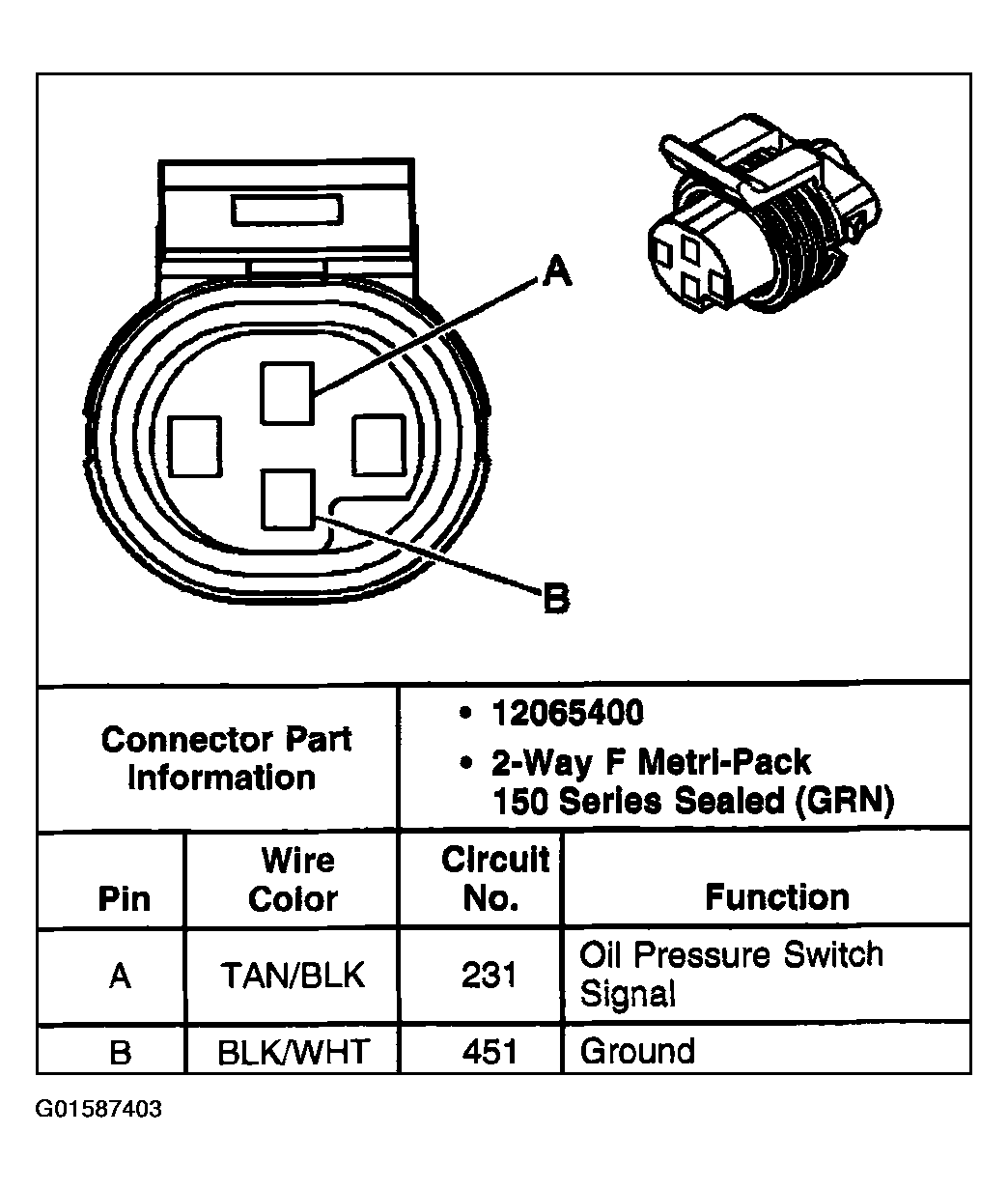

Fig 3: Engine Oil Pressure (EOP) Switch Connector End View (L36/L67)

Courtesy of GENERAL MOTORS CORP.

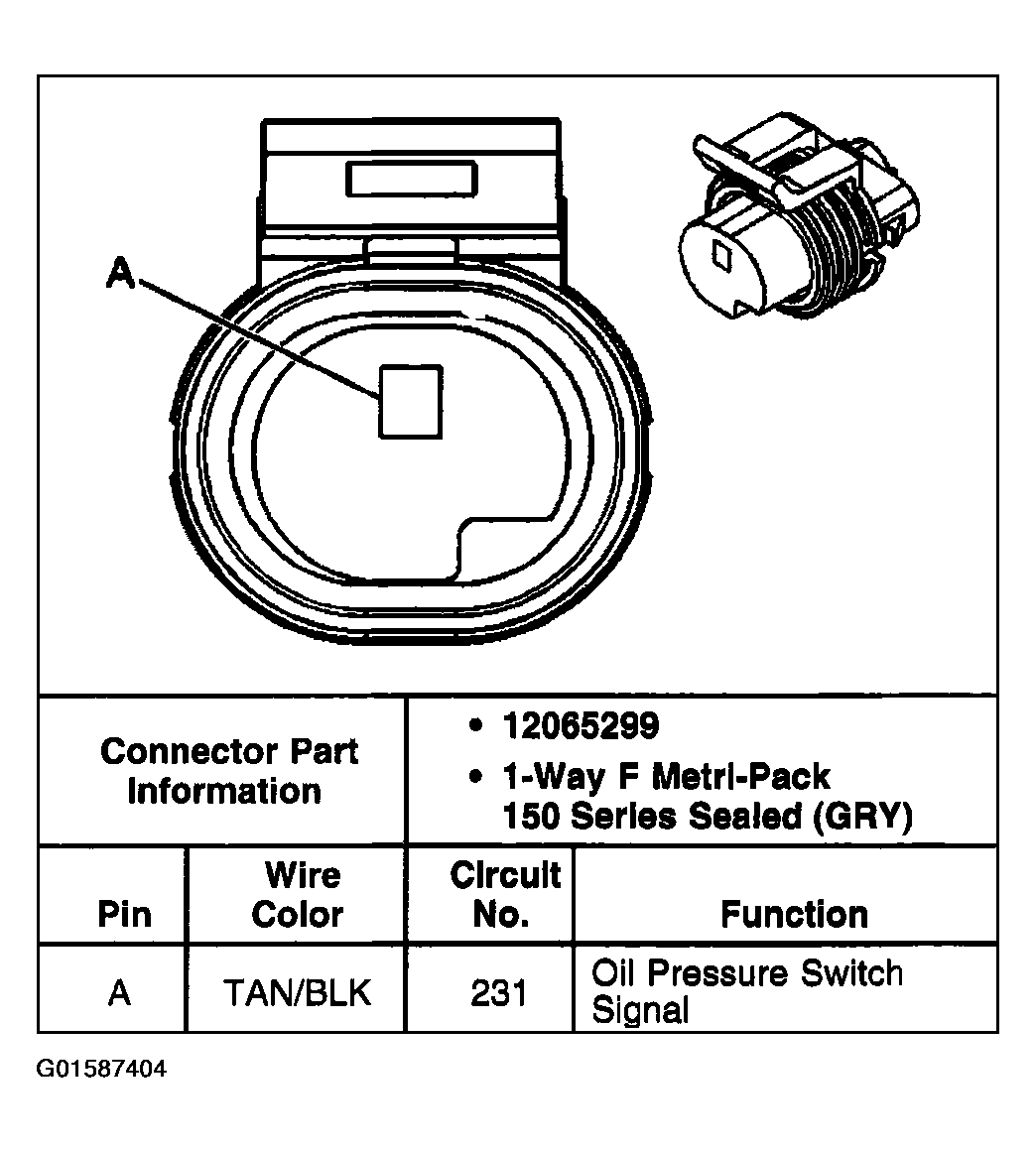

Fig 4: Engine Oil Pressure (EOP) Switch Connector End View (LG8)

Courtesy of GENERAL MOTORS CORP.

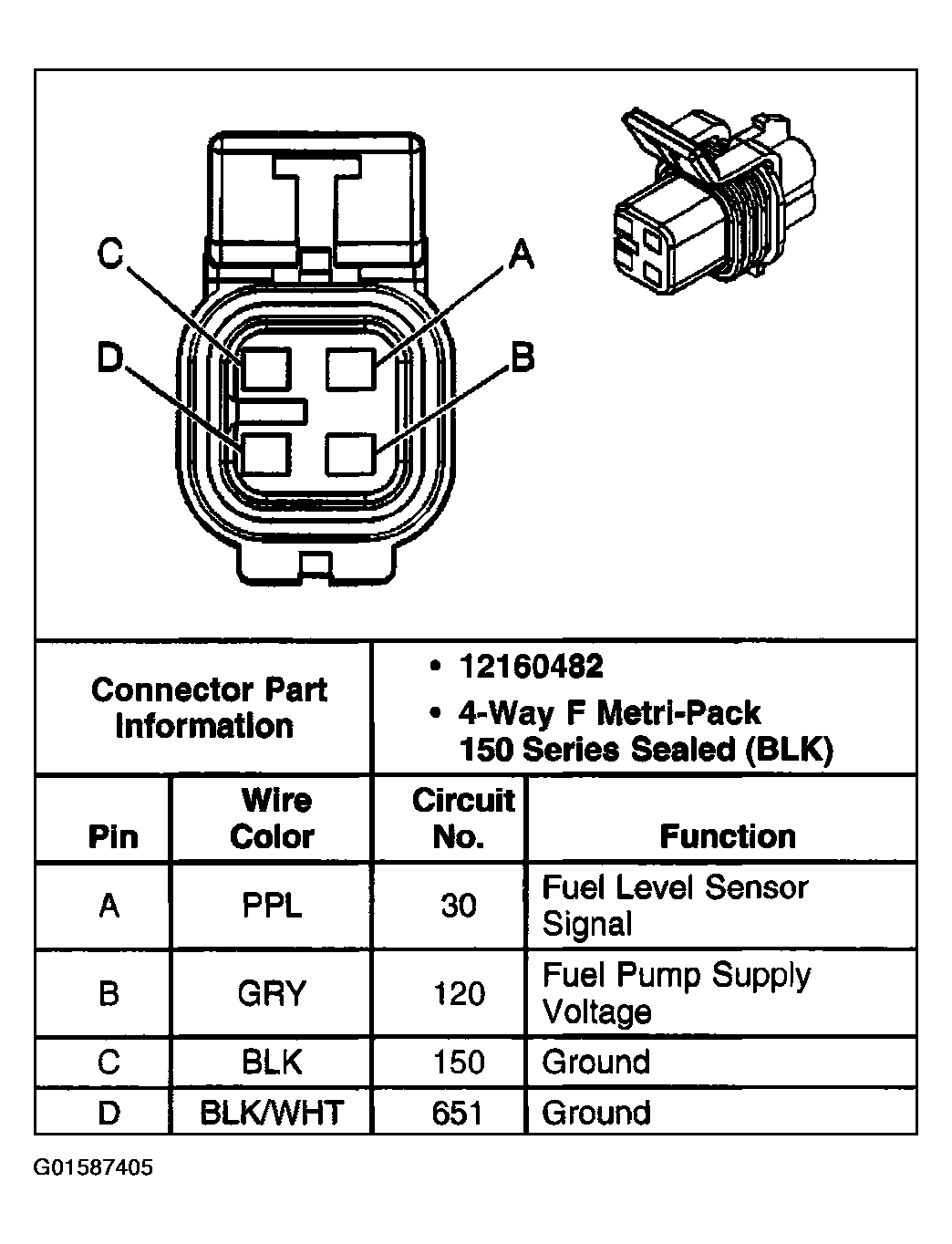

Fig 5: Fuel Pump And Sender Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

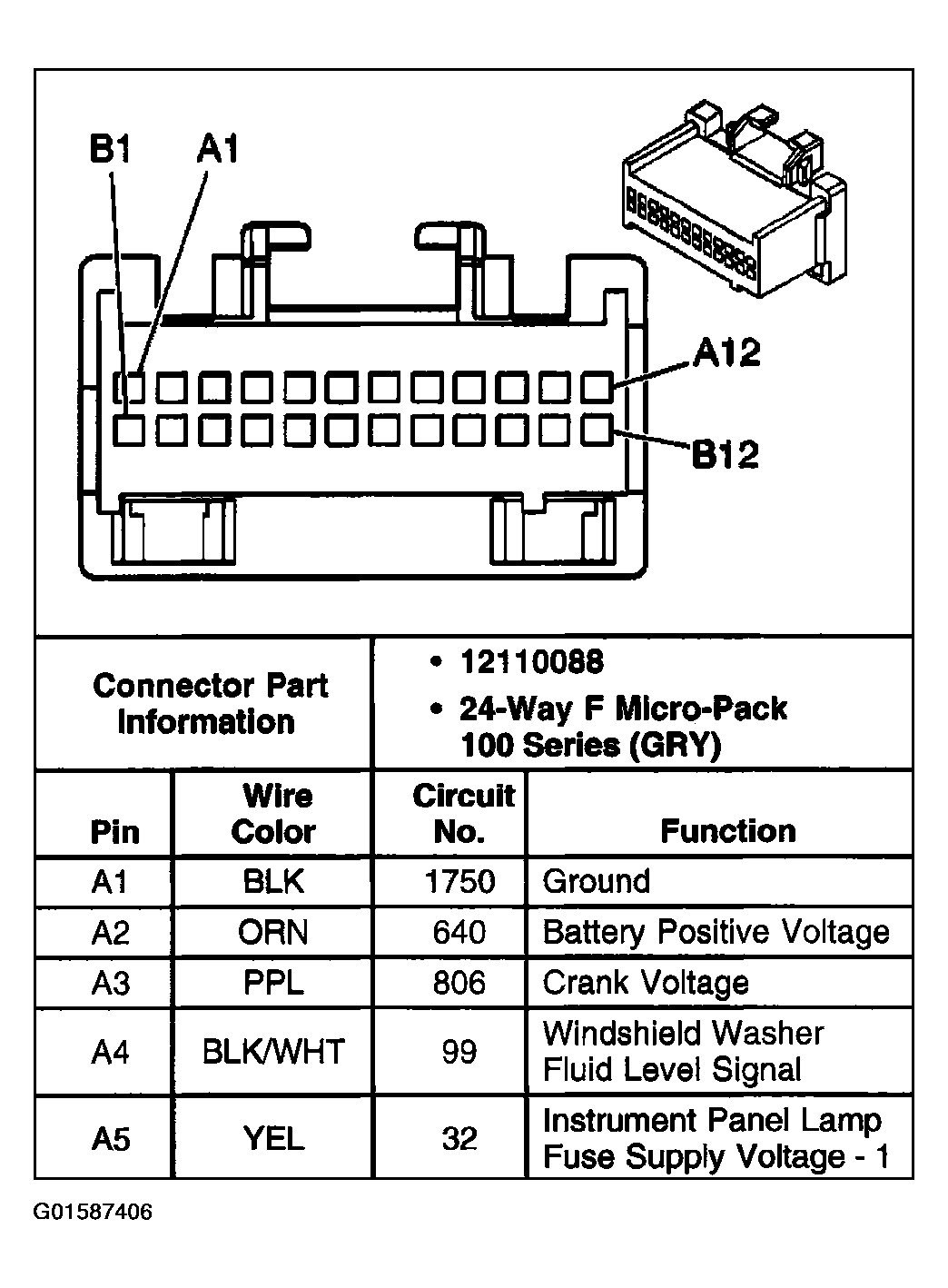

Fig 6: Instrument Panel Cluster (IPC) Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

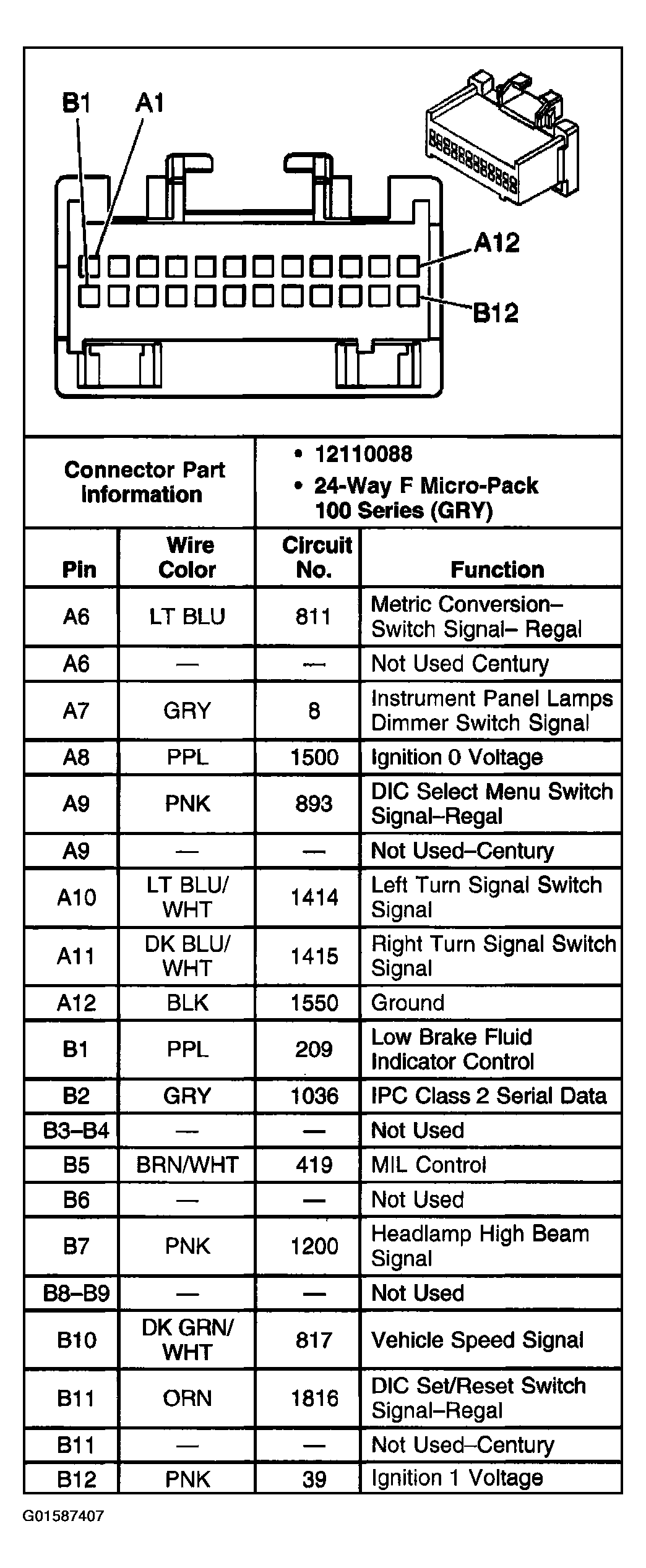

Fig 7: Instrument Panel Cluster (IPC) Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
