Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

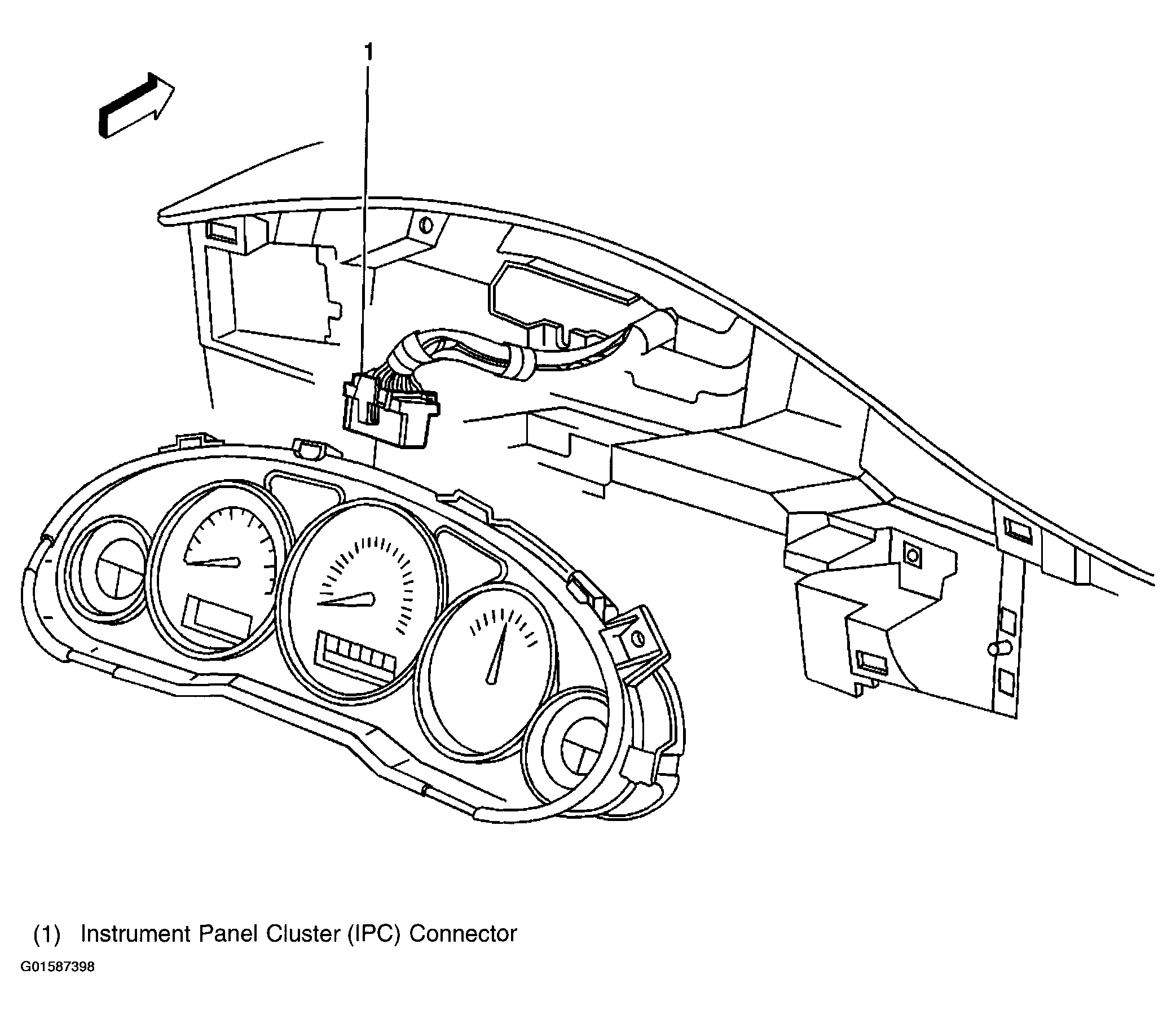

Fig 1: Left Center of Instrument Panel Component View
G01587398Courtesy of GENERAL MOTORS CORP.

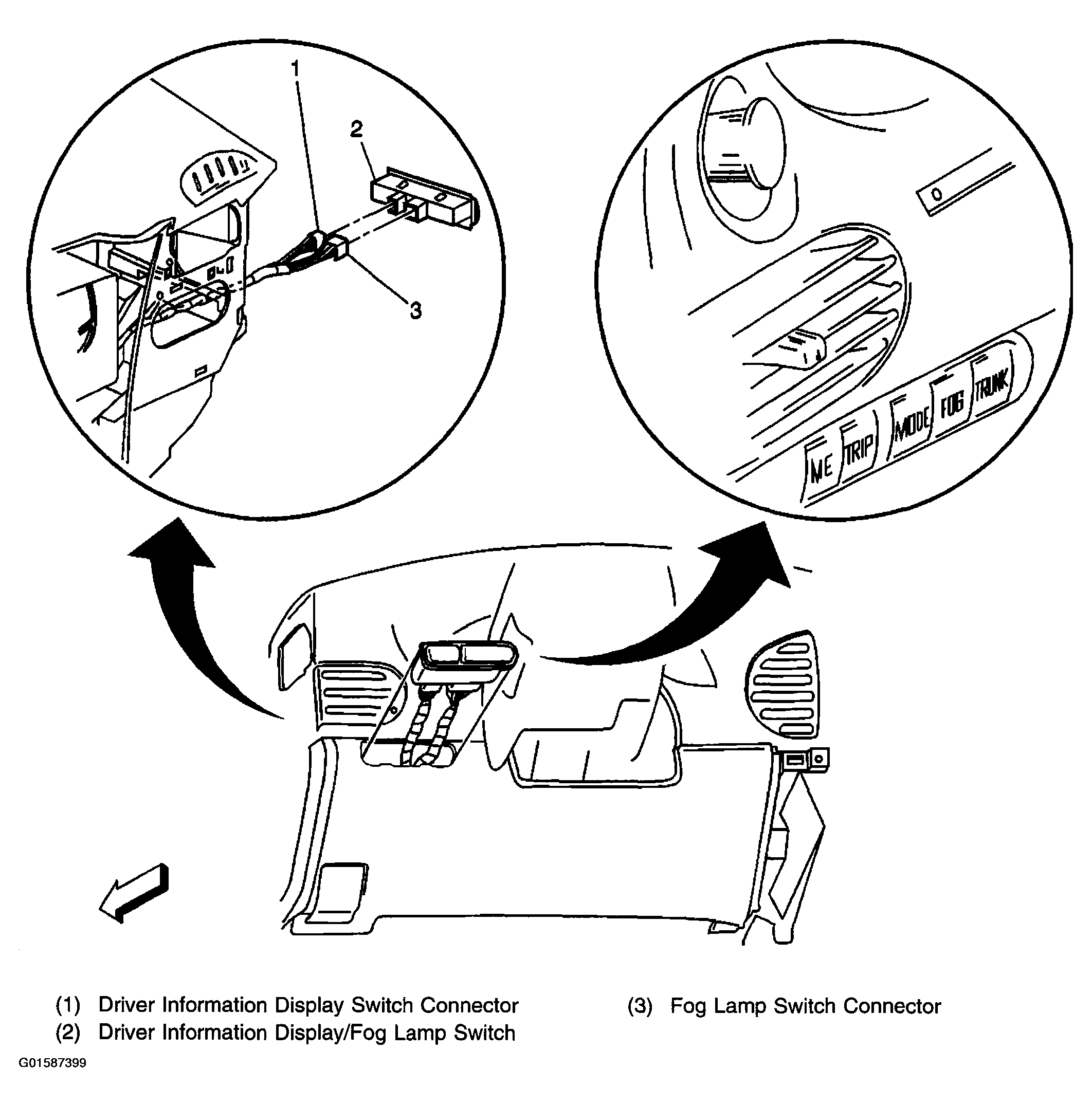

Fig 2: Lower Left Of Instrument Panel Component View
G01587399Courtesy of GENERAL MOTORS CORP.

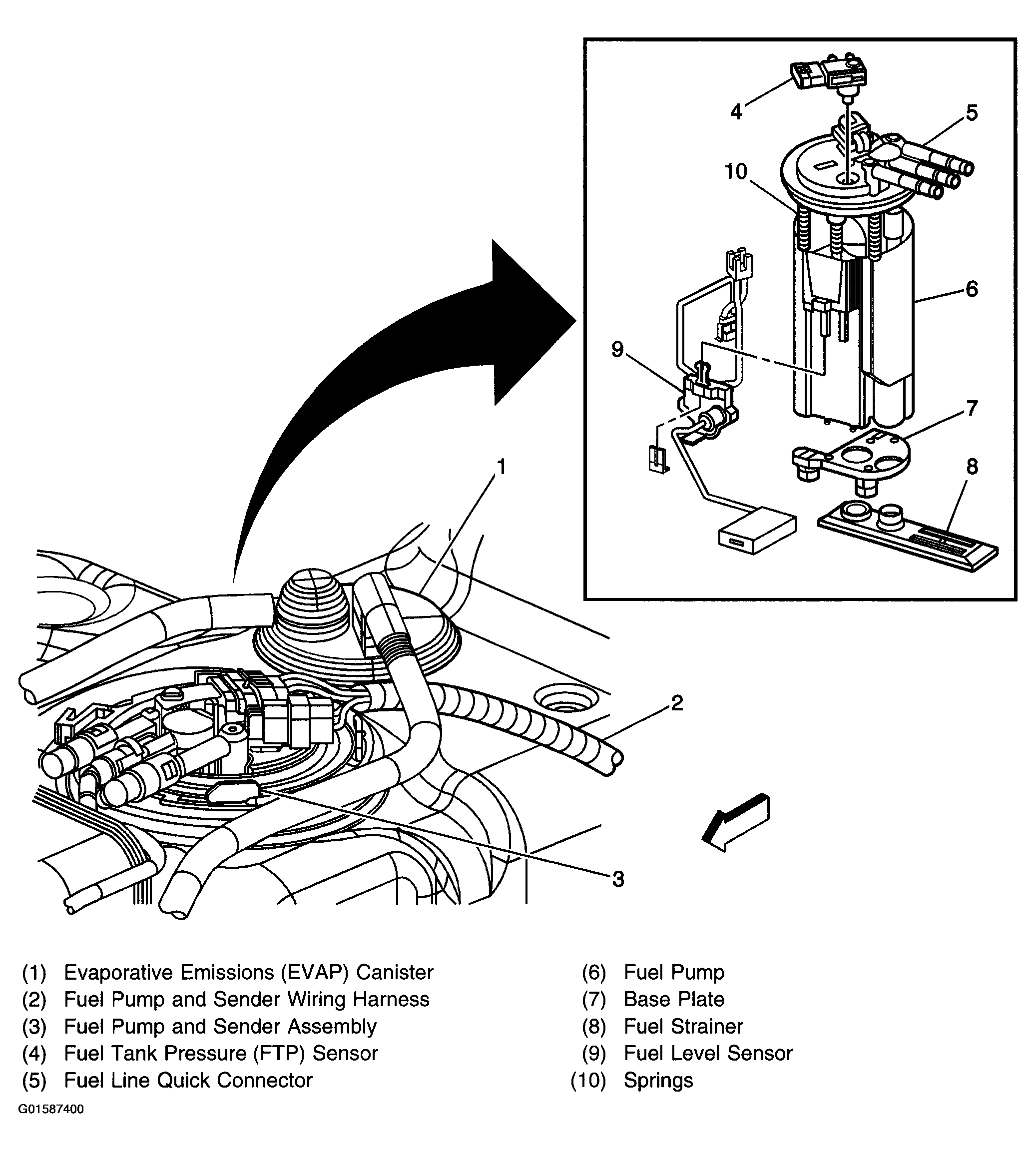

Fig 3: Fuel Tank Component View
G01587400Courtesy of GENERAL MOTORS CORP.
