Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover. See Special Tools and Equipment .

Remove the air inlet grille Panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
Using the J 38778, remove the wiper motor water deflector push-in retainer.
Remove the wiper motor water deflector from the wiper drive system module.

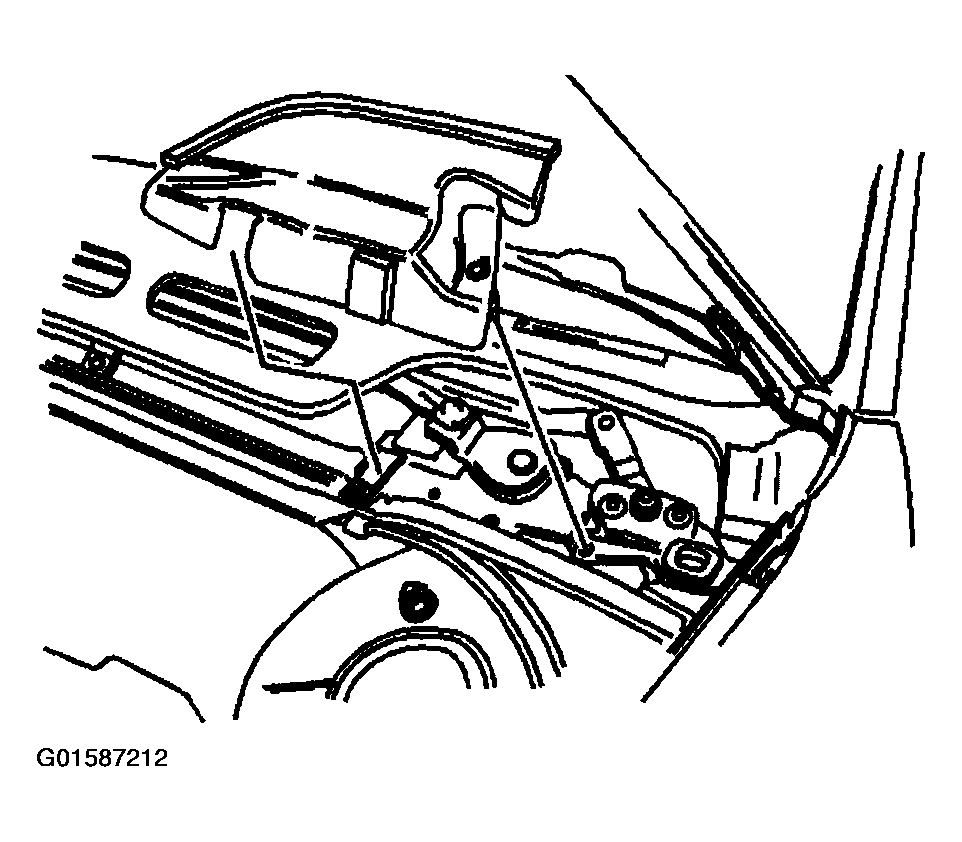

Fig 1: Removing Wiper Motor Water Deflector
Courtesy of GENERAL MOTORS CORP.
