Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor crank arm onto the wiper motor.
  2. Measure the gap between wiper motor crank arm and the bracket tab. If the gap is not 4 -8 mm (0.157-0.314 in), remove the wiper motor crank arm and repeat installation.

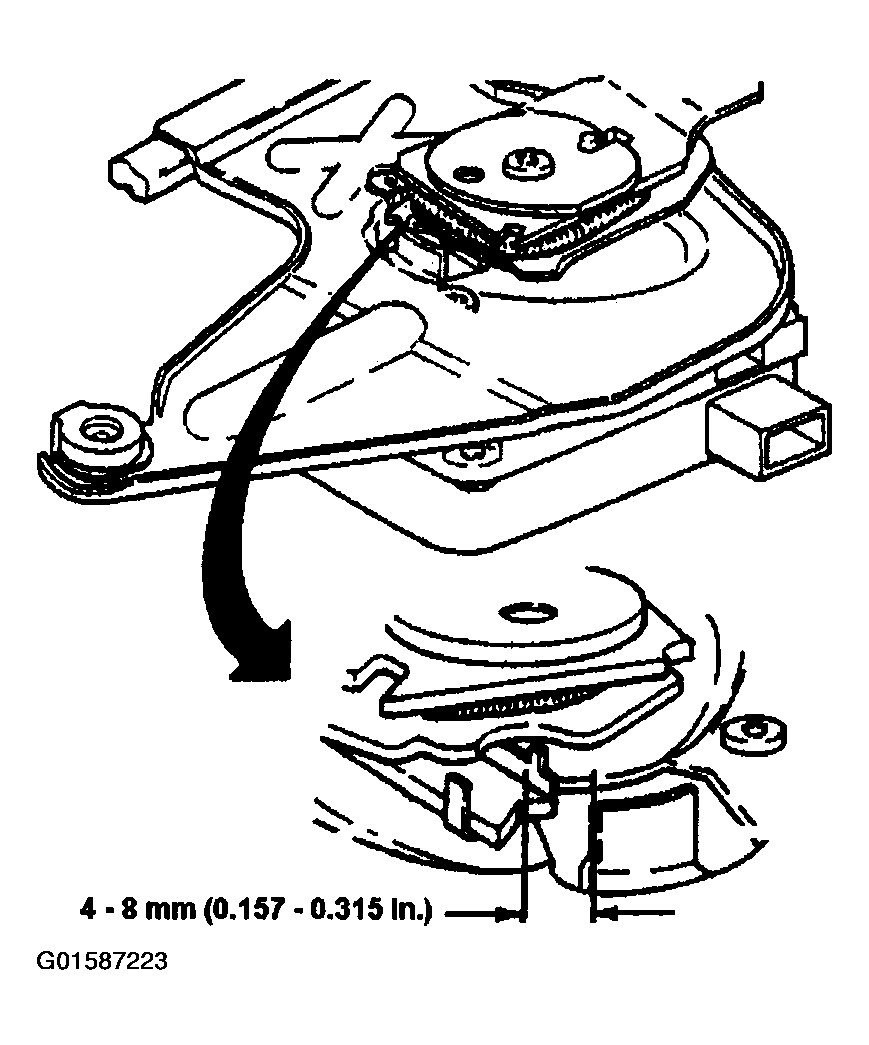

    Fig 1: Measuring Gap Between Wiper Motor Crank Arm & Bracket Tab
    G01587223Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper motor crank arm screw.

    Tighten

    Tighten the screw to 16 N.m (12 lb ft).

  4. Install the wiper motor crank arm cover.

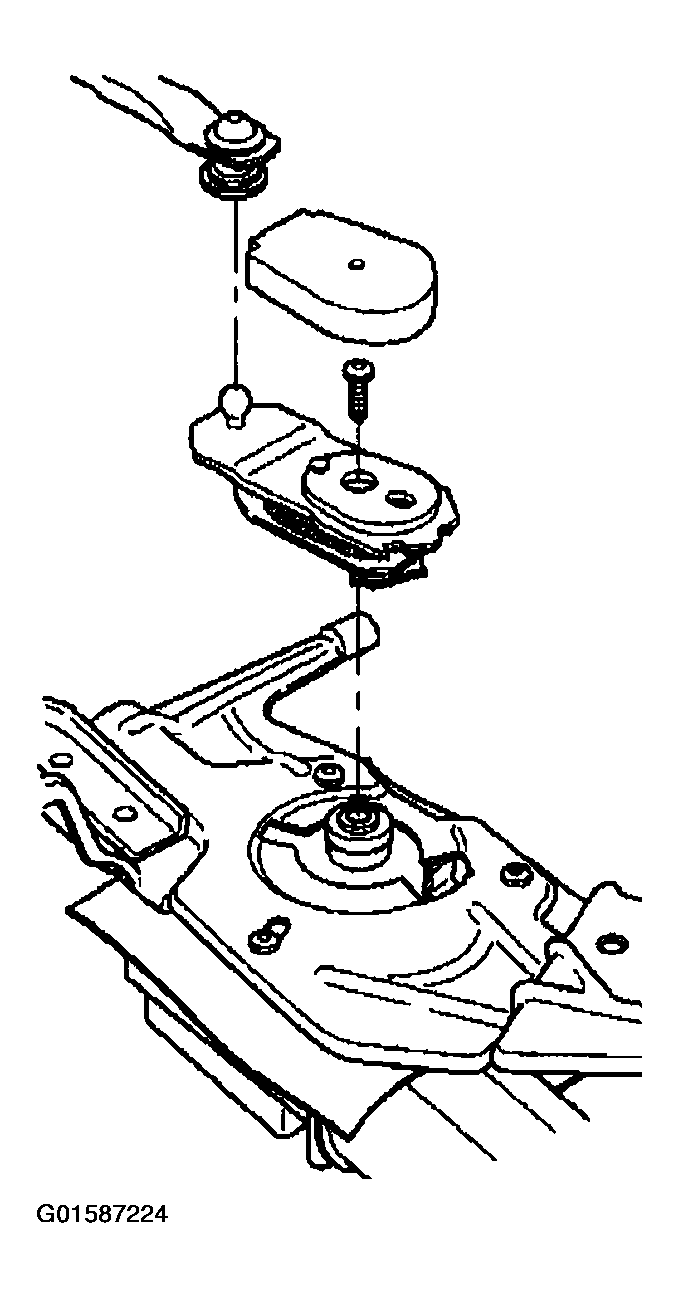

    Fig 2: Installing Wiper Motor Crank Arm, Cover & Screw
    G01587224Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39529,  install the wiper transmission to the wiper motor crank arm.
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  7. Install the wiper motor water deflector. Refer to WIPER MOTOR WATER DEFLECTOR REPLACEMENT  .
  8. Operate the windshield wipers and inspect for proper operation.
    Fig 3: View Of J 39232
    G01587225Courtesy of GENERAL MOTORS CORP.
