Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  3. Remove the wiper motor cover screws.

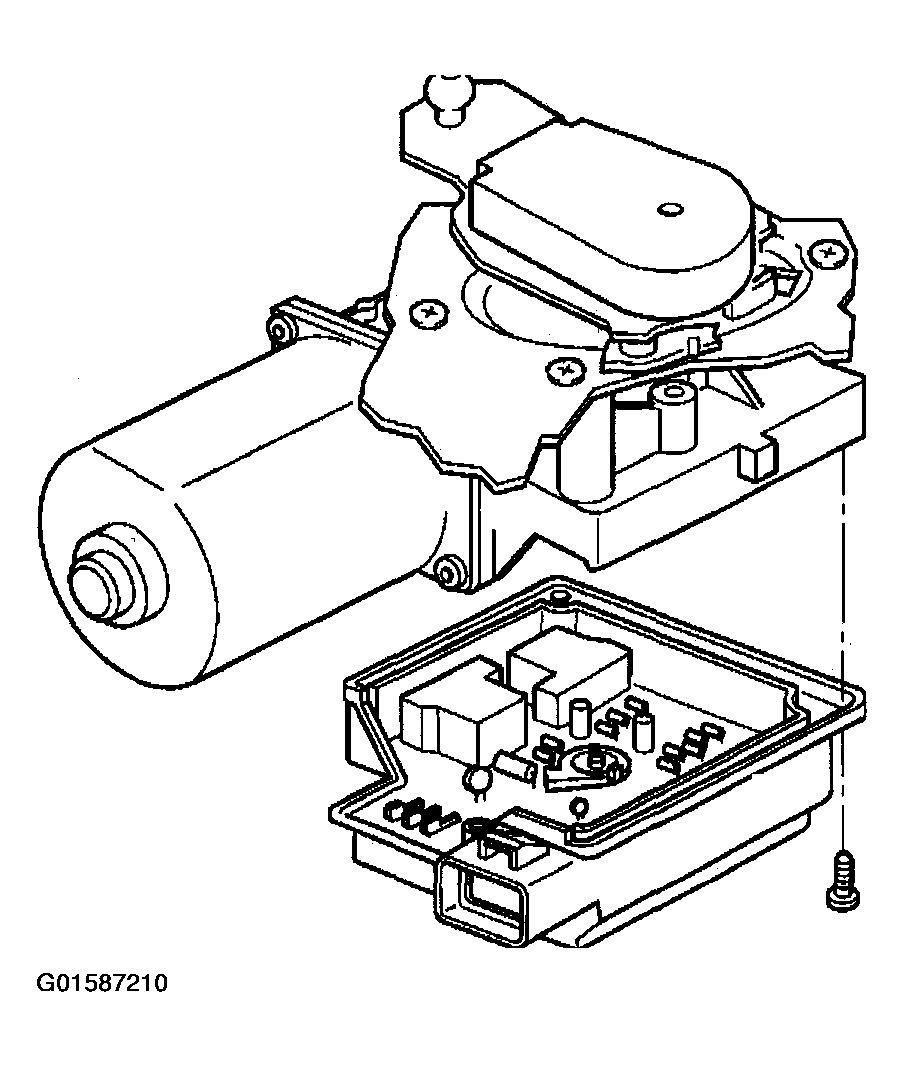

    Fig 1: Removing Wiper Motor Cover & Screws
    G01587210Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor cover from the wiper motor.
