Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container filler neck to the washer solvent container, pressing in until fully seated.
  2. Install the washer solvent container filler neck push-in retainer.
  3. Close the hood.

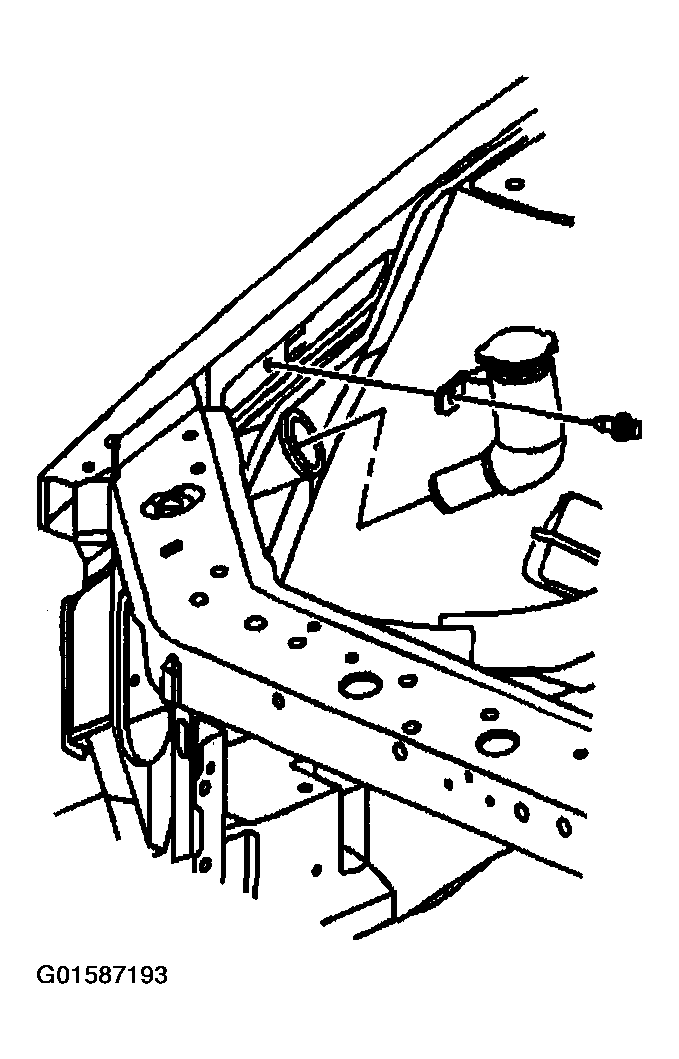

    Fig 1: Positioning Washer Solvent Container Filler Neck Push-In Retainer
    G01587193Courtesy of GENERAL MOTORS CORP.
