Wipers Inoperative-All Modes

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

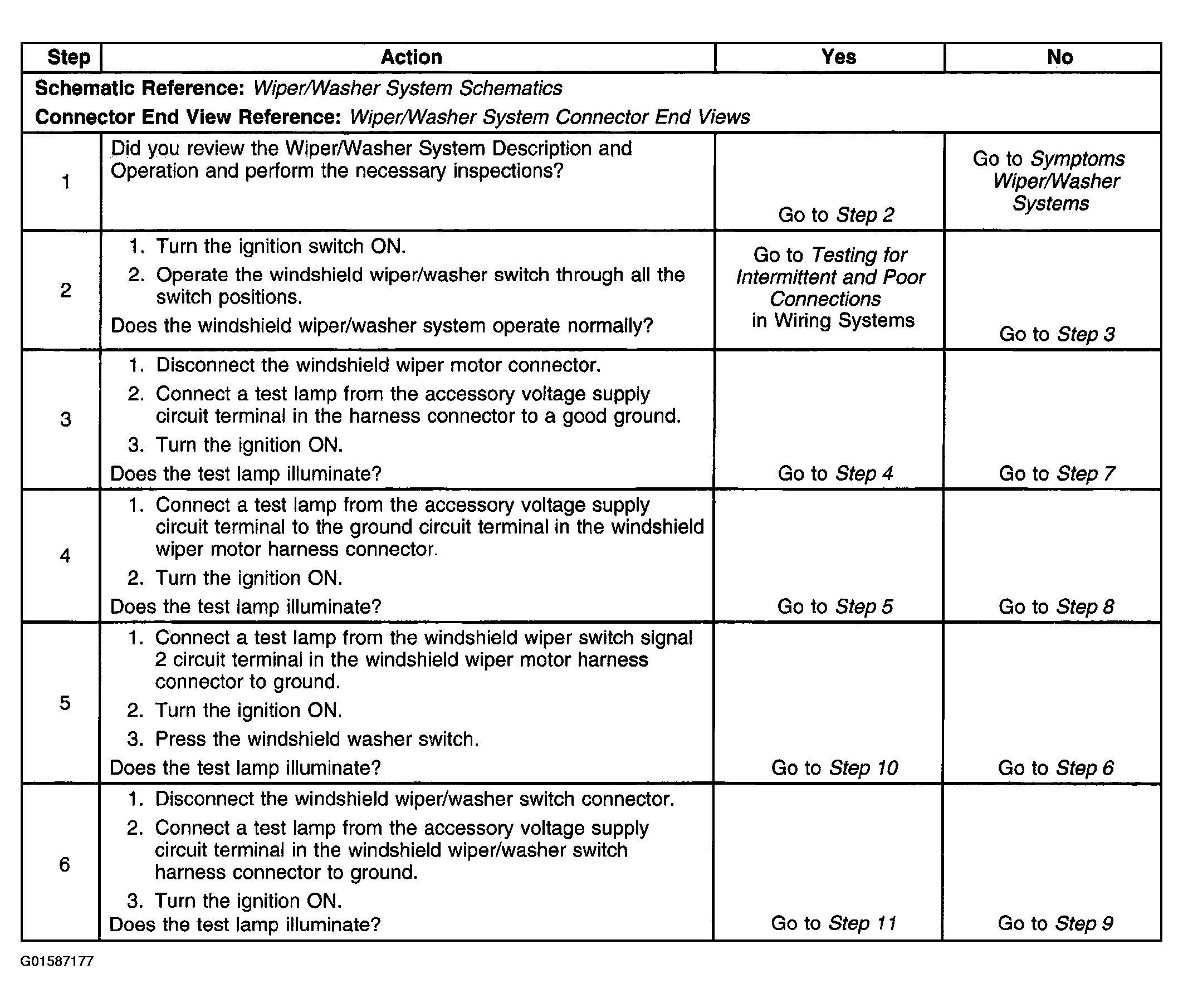

Fig 1: Wipers Inoperative-All Modes (Steps 1 - 6)

Courtesy of GENERAL MOTORS CORP.

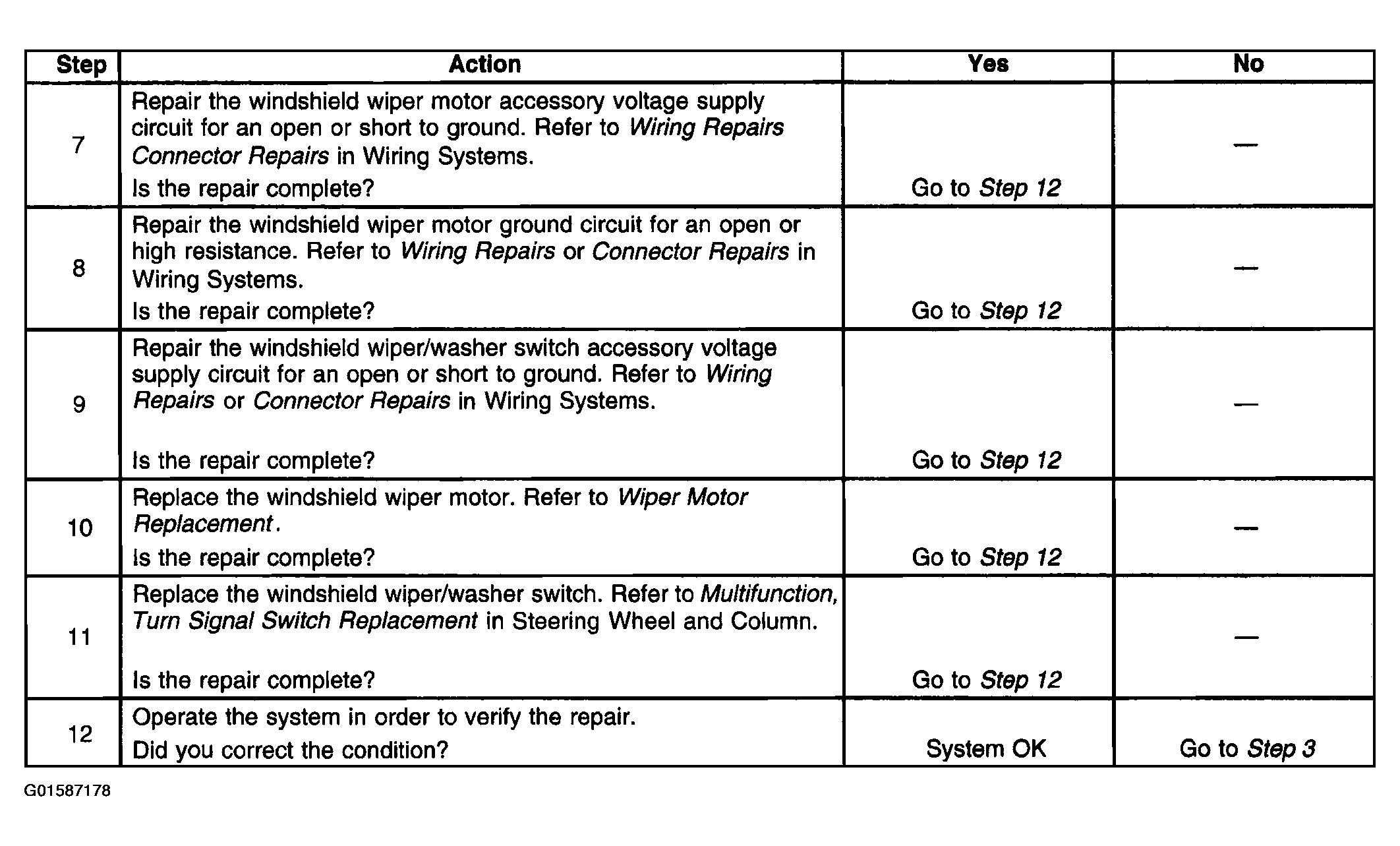

Fig 2: Wipers Inoperative-All Modes (Steps 7 - 12)

Courtesy of GENERAL MOTORS CORP.
