Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the assist handle covers.
  2. Remove the side rail lamp assist handle screws.

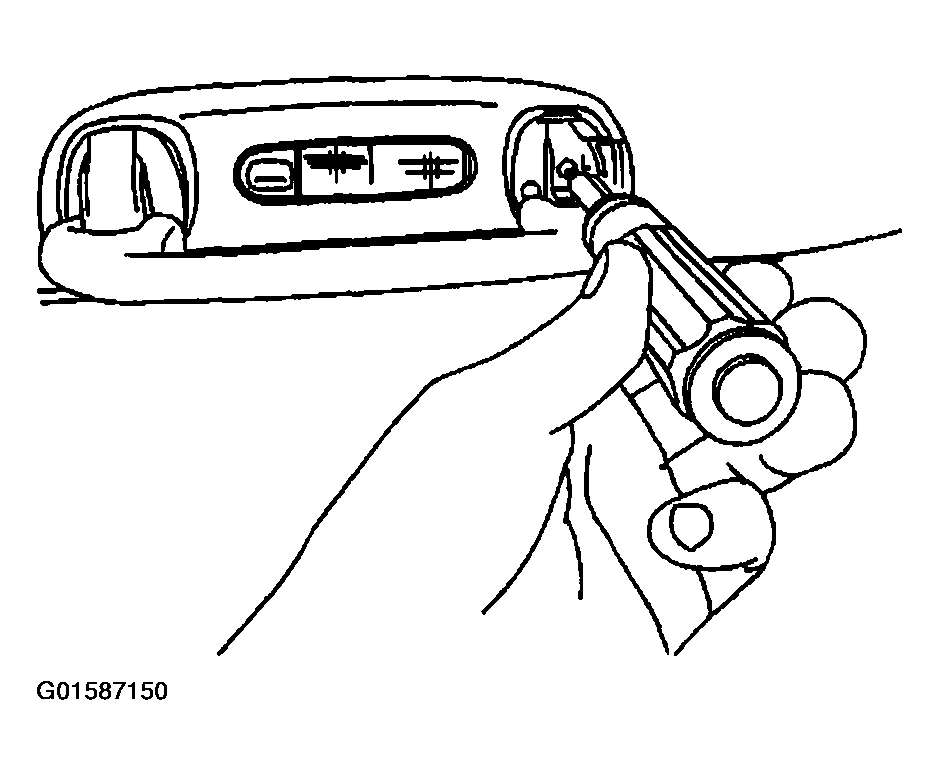

    Fig 1: Removing Side Rail Lamp Assist Handle Screws
    G01587150Courtesy of GENERAL MOTORS CORP.
  3. Remove the assist handle.

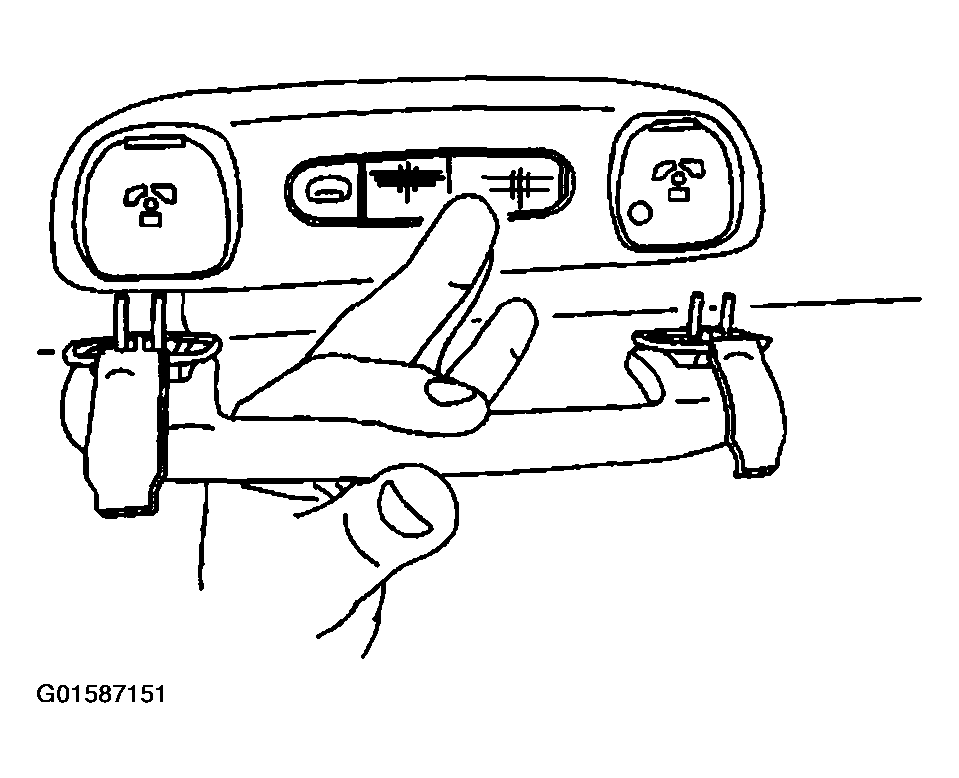

    Fig 2: Removing Assist Handle
    G01587151Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Note the location of the side rail lamp assist handle plastic retainers.
  4. Remove the side rail lamp base plate.

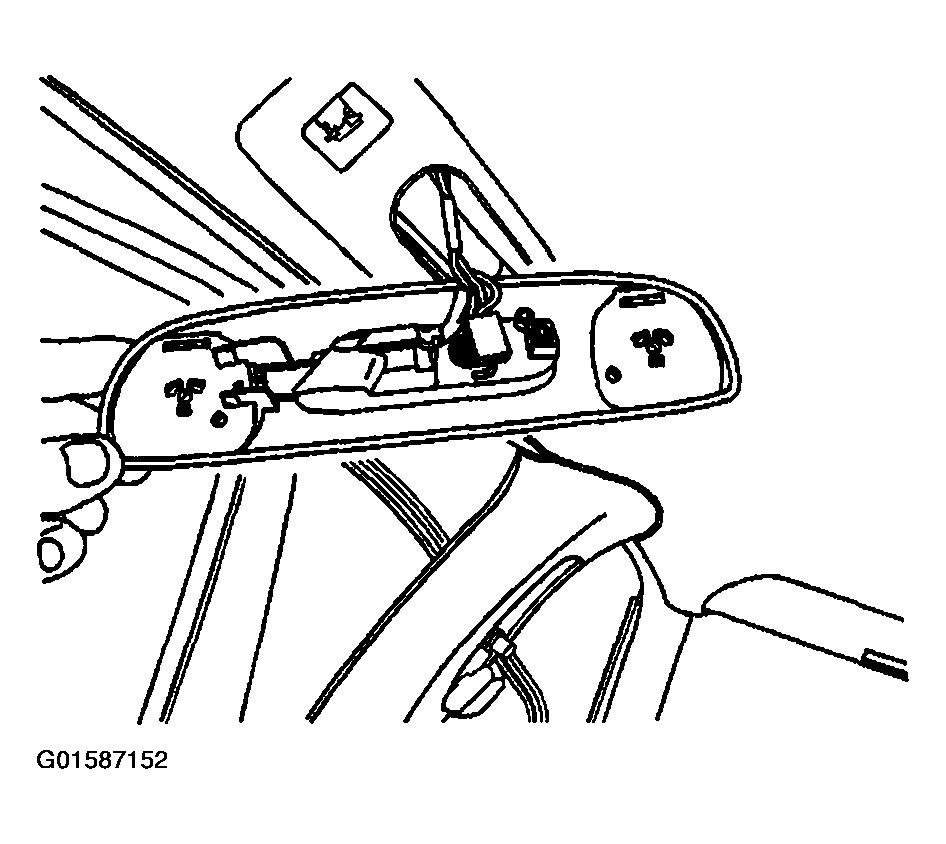

    Fig 3: Removing Side Rail Lamp Base Plate
    G01587152Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the side rail lamp.
  6. Remove the side rail lamp socket from the base plate by sliding off.

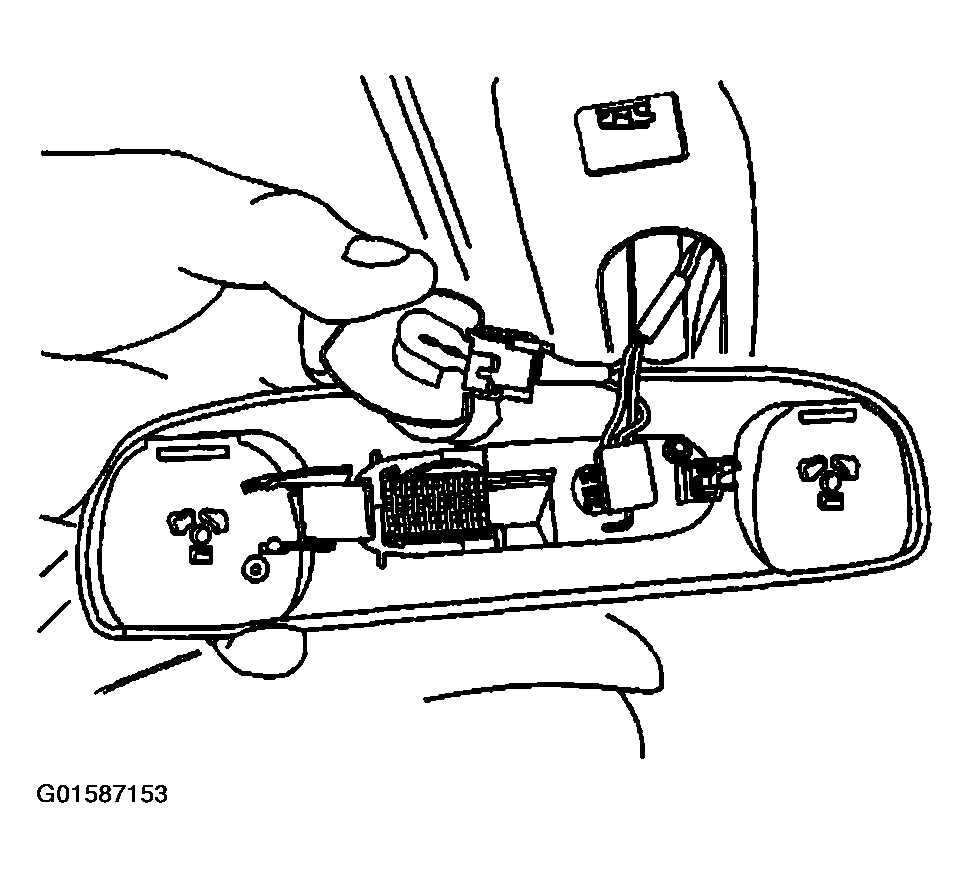

    Fig 4: Removing Side Rail Lamp Socket
    G01587153Courtesy of GENERAL MOTORS CORP.
  7. Remove the bulb.

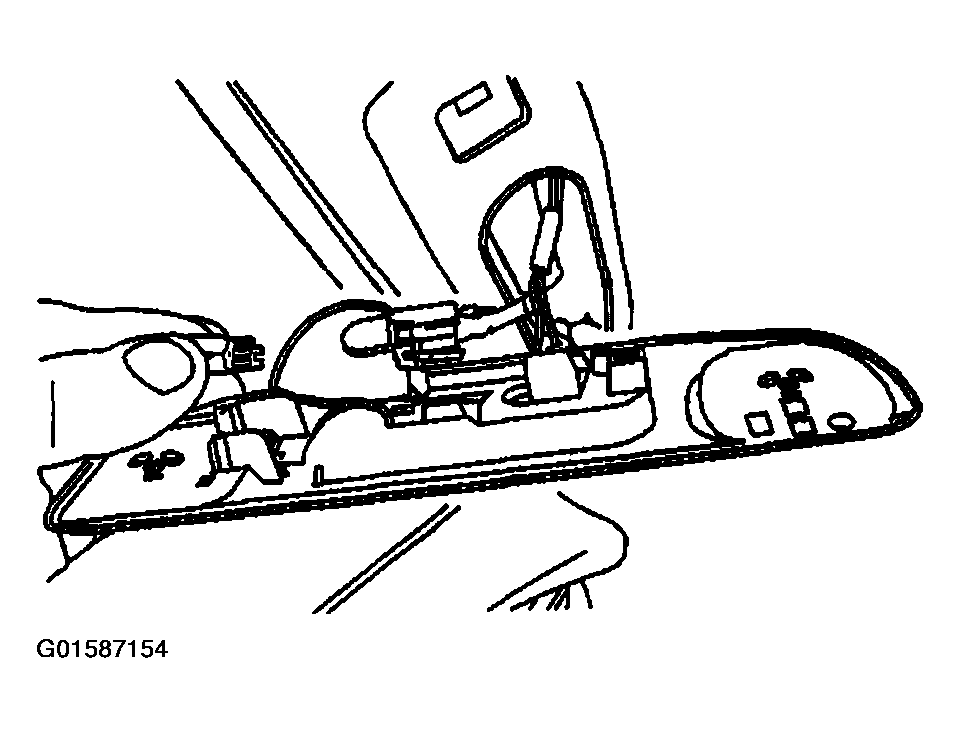

    Fig 5: Removing Side Rail Lamp Bulb
    G01587154Courtesy of GENERAL MOTORS CORP.
