Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (I/P) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages, and Console.
  3. Remove the I/P driver knee bolster bracket. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.
  4. Grasp the hazard and turn signal flasher and slide the flasher to the right to release the flasher tabs from the slots on the BCM bracket.
  5. Disconnect the electrical connector from the flasher.

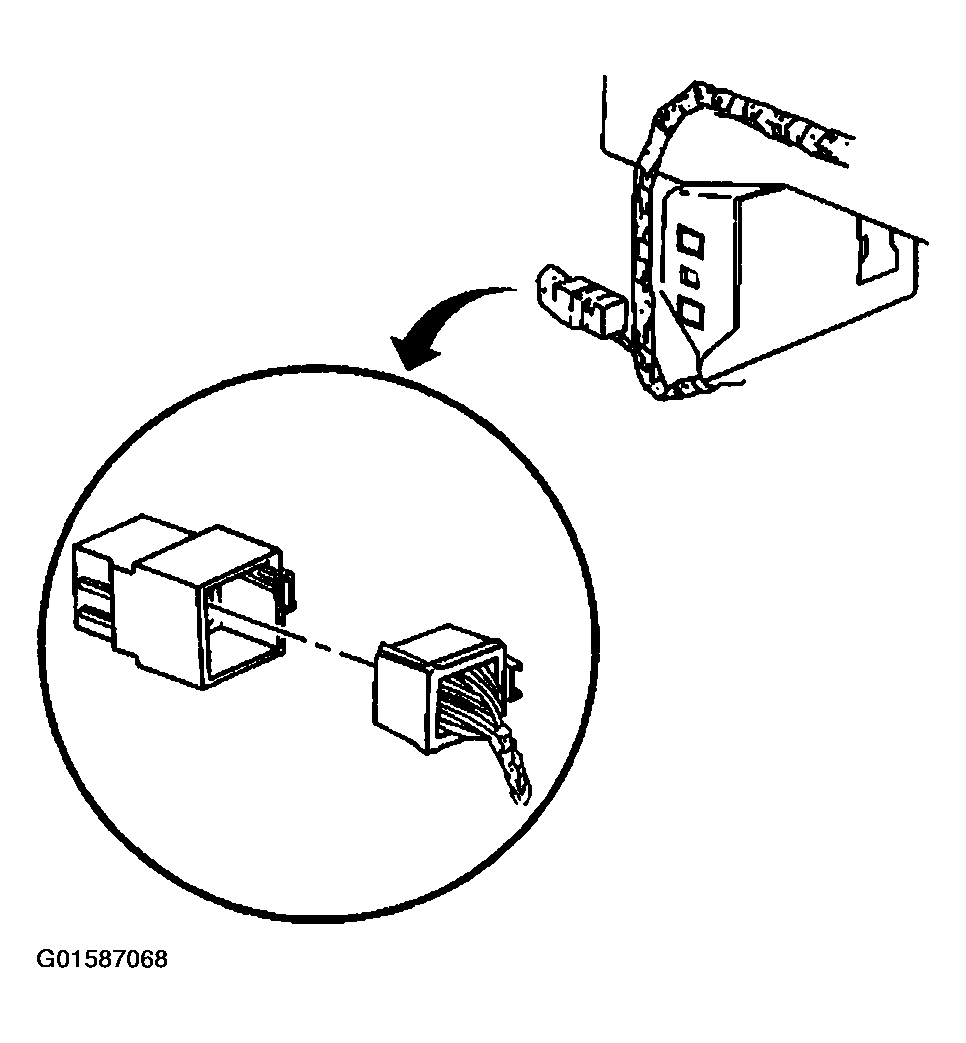

    Fig 1: Disconnecting Electrical Connector From Turn Signal/Hazard Warning Flasher
    G01587068Courtesy of GENERAL MOTORS CORP.
