Turn Signal Lamps and/or Indicators Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

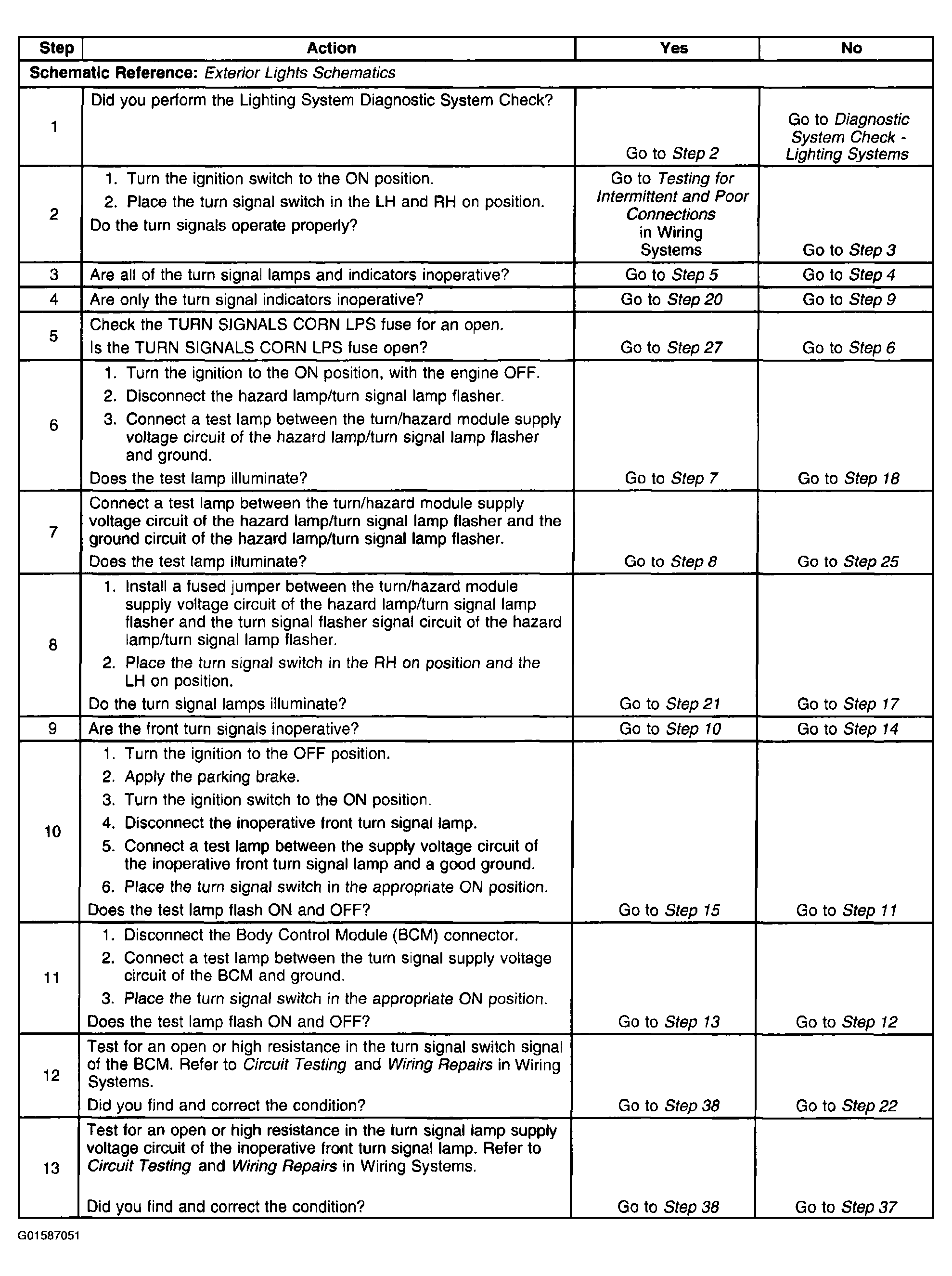

Fig 1: Turn Signal Lamps And/Or Indicators Inoperative (Steps 1 - 13)

Courtesy of GENERAL MOTORS CORP.

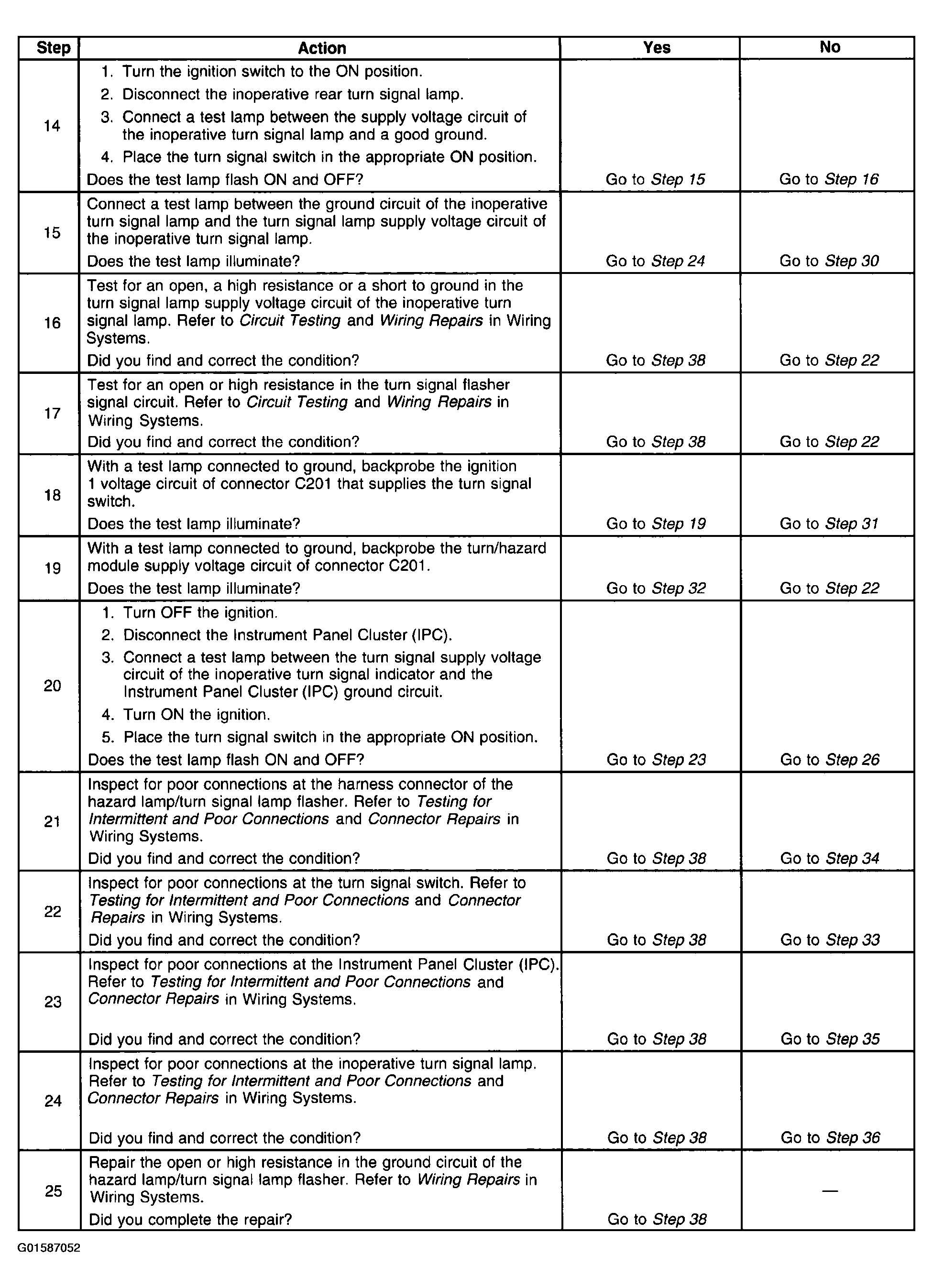

Fig 2: Turn Signal Lamps And/Or Indicators Inoperative (Steps 14 - 25)

Courtesy of GENERAL MOTORS CORP.

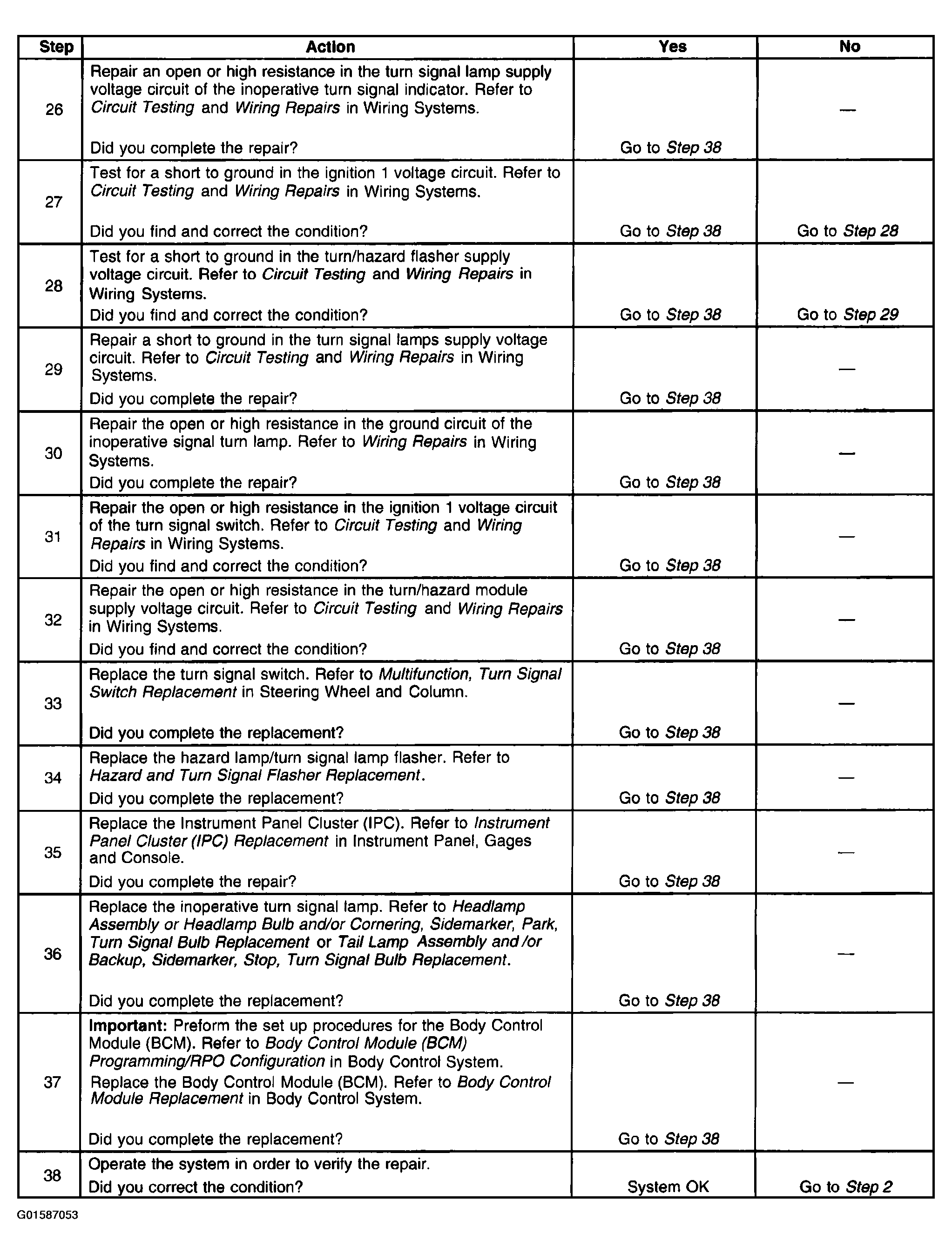

Fig 3: Turn Signal Lamps And/Or Indicators Inoperative (Steps 26 - 38)

Courtesy of GENERAL MOTORS CORP.
