Fog Lamps Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

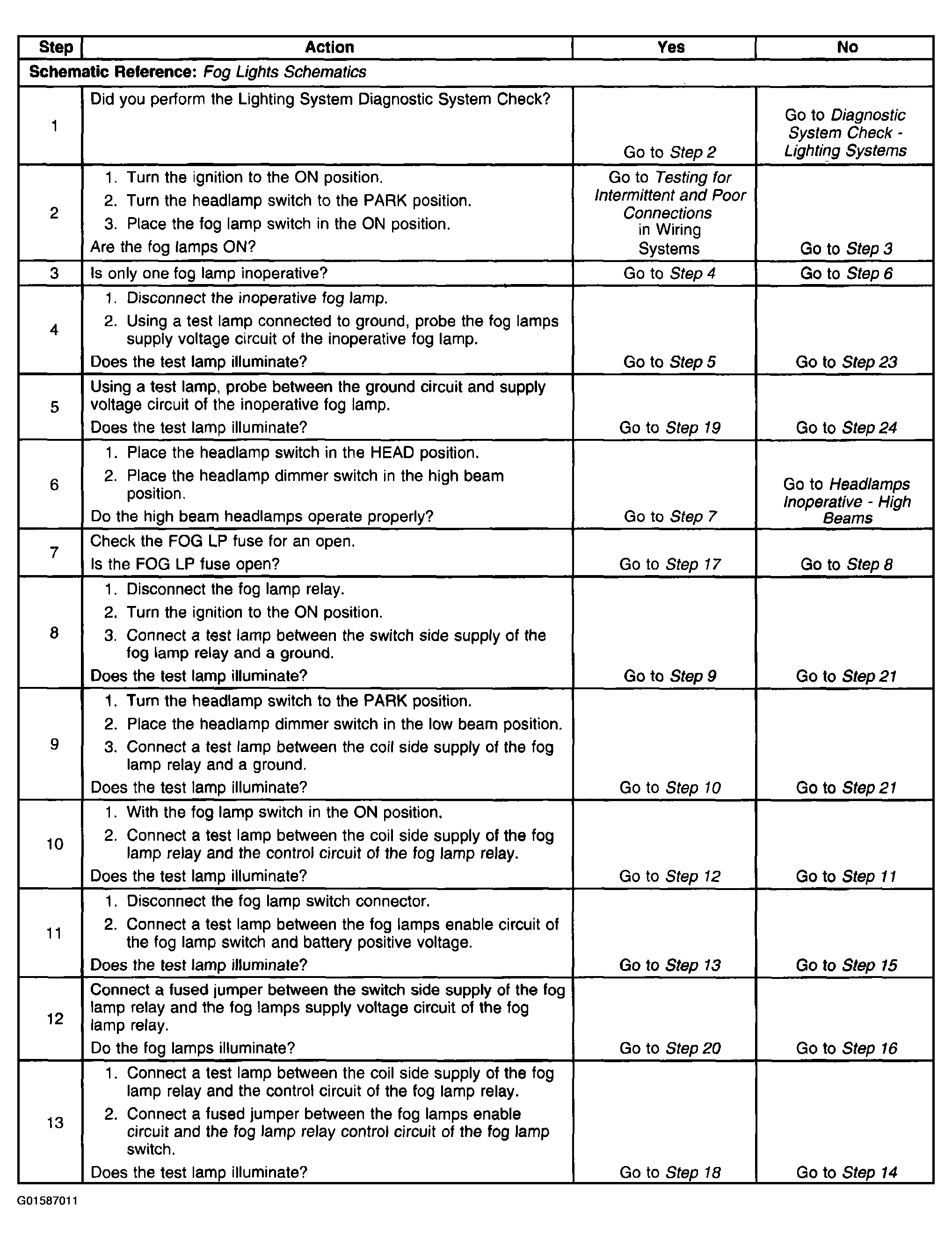

Fig 1: Fog Lamps Inoperative (Steps 1 - 13)

Courtesy of GENERAL MOTORS CORP.

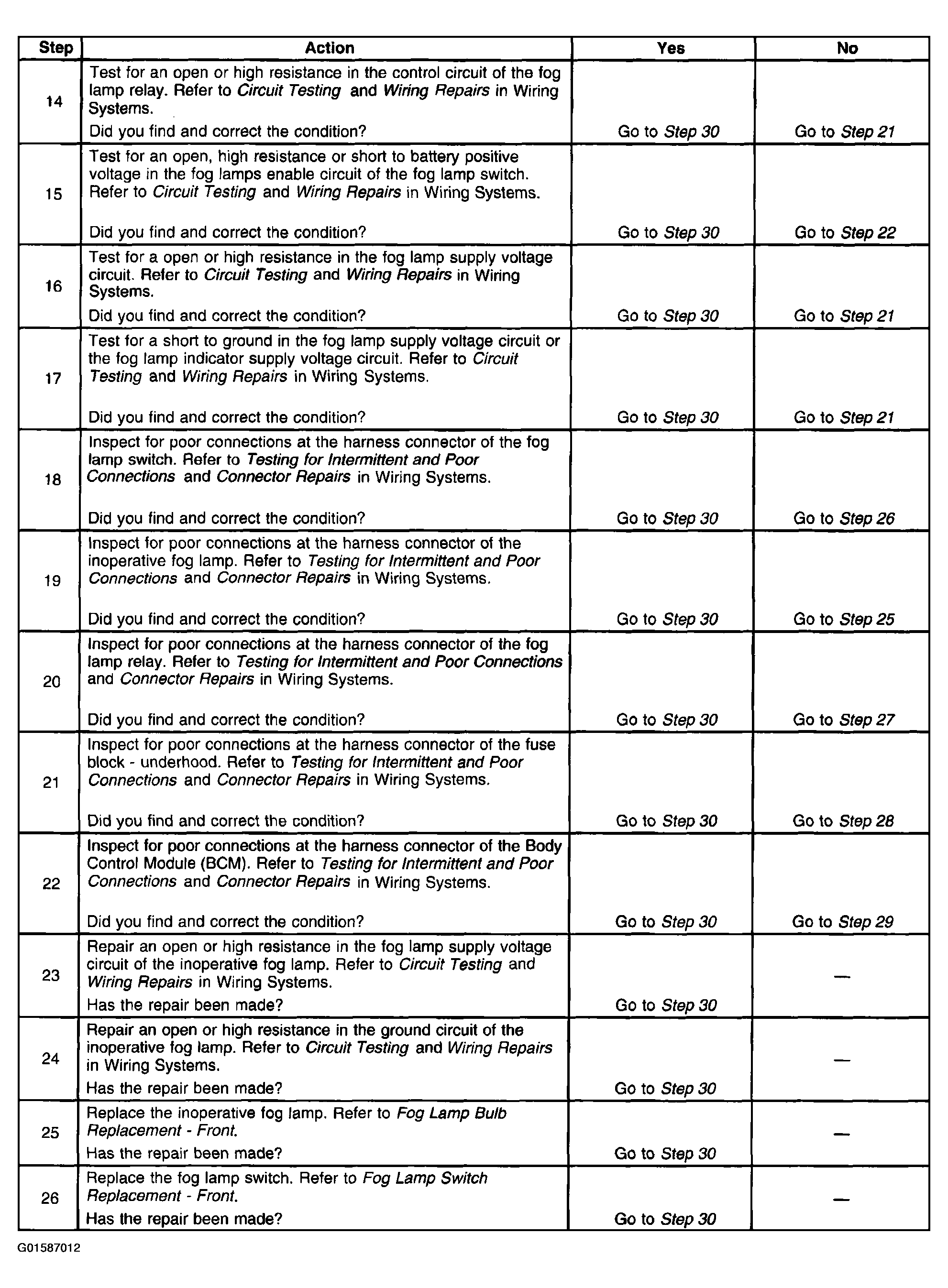

Fig 2: Fog Lamps Inoperative (Steps 14 - 26)

Courtesy of GENERAL MOTORS CORP.

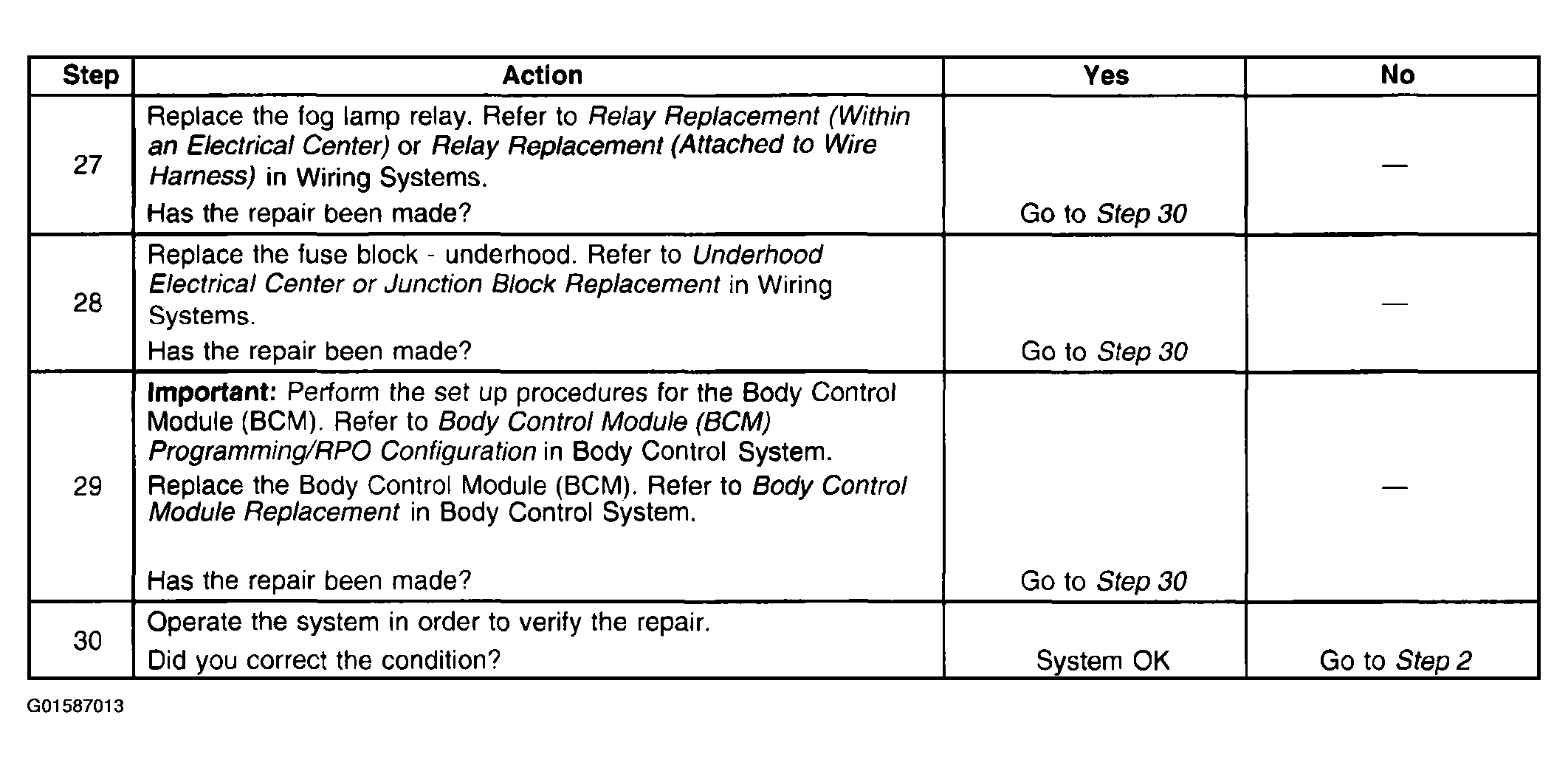

Fig 3: Fog Lamps Inoperative (Steps 27 - 30)

Courtesy of GENERAL MOTORS CORP.
