Test Description

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refers to the step numbers on the diagnostic table.

  1. 3. Checks for an open in the courtesy lamps ground circuit.

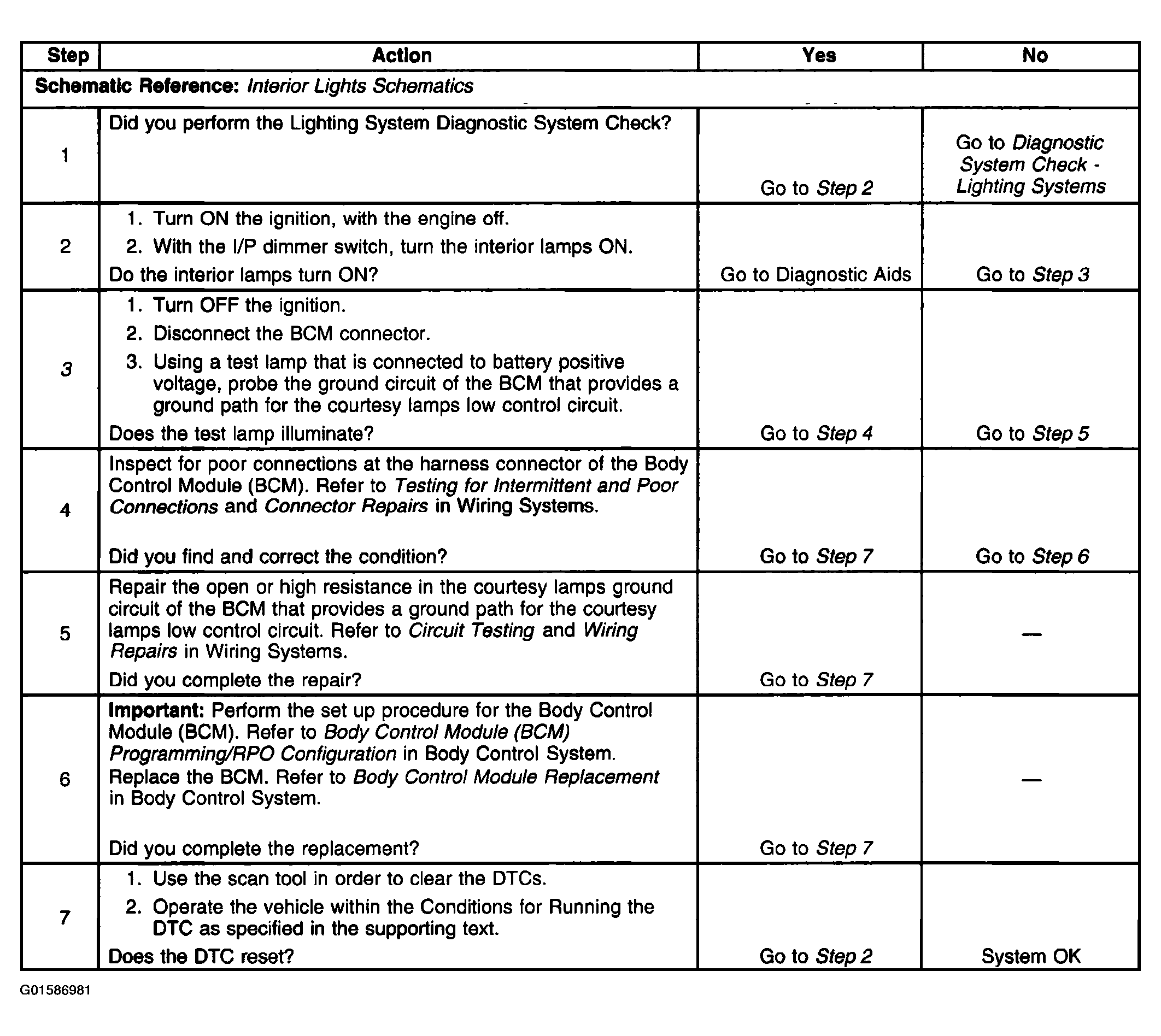

Fig 1: DTC B2559
G01586981Courtesy of GENERAL MOTORS CORP.
