Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the wires to the fuse block. Refer to FUSES & CIRCUIT BREAKERS .
Install the fuses and the relays to the fuse block. Refer to FUSES & CIRCUIT BREAKERS .

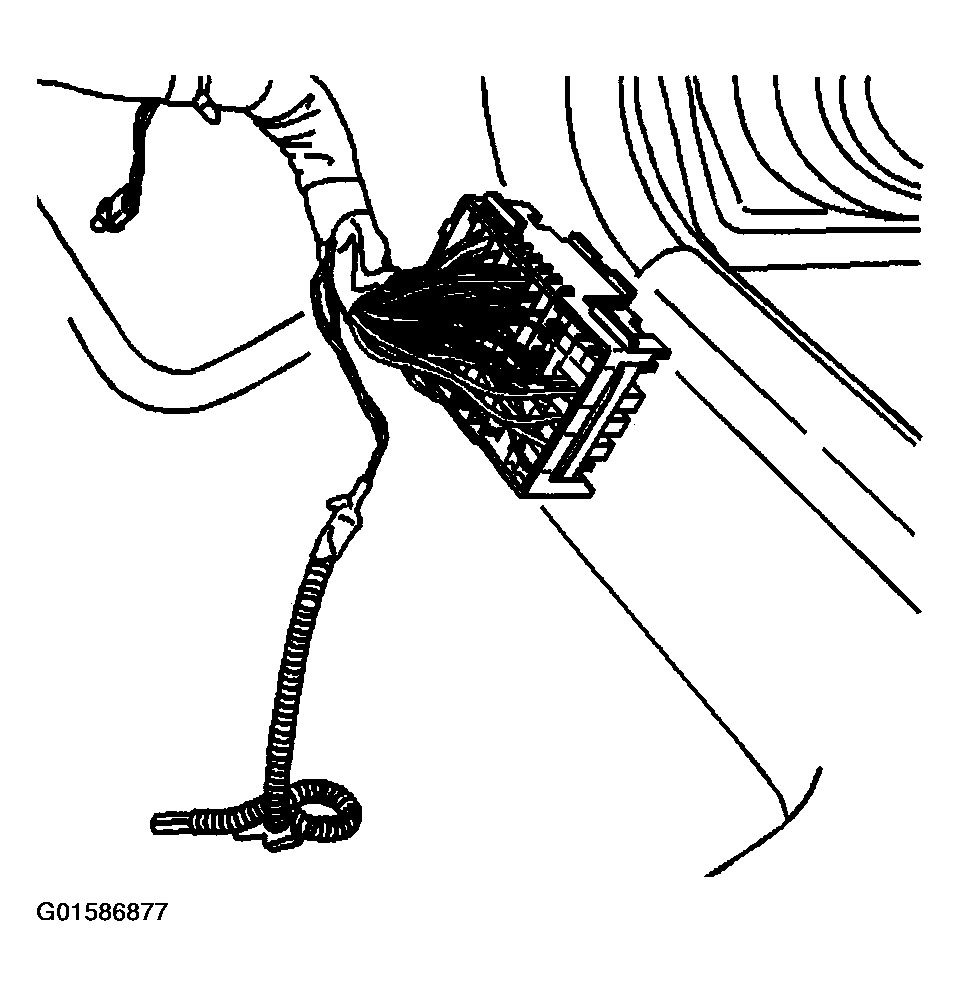

Fig 1: Locating Terminals & Wires In I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
Position the fuse block to the I/P. Install the fuse block to the fuse block bracket on the body wiring harness.

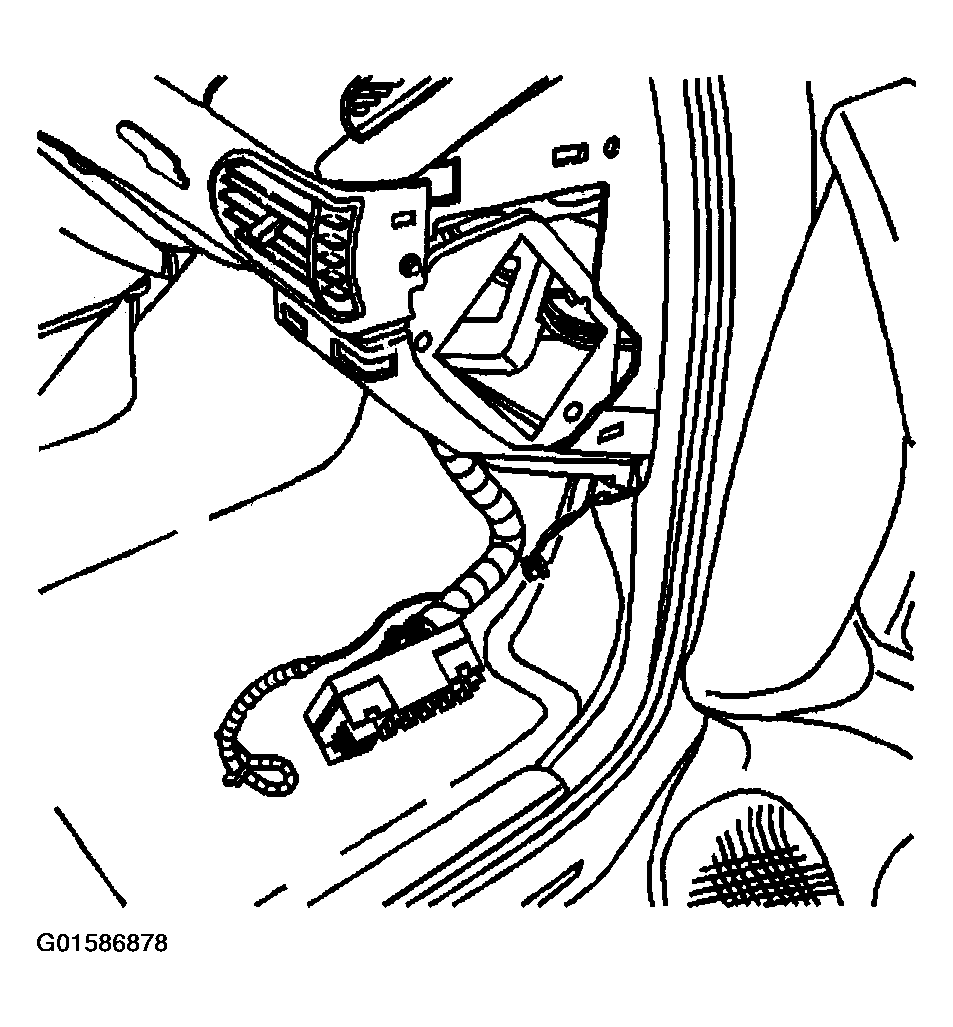

Fig 2: Installing Fuse Block To Fuse Block Bracket On Body Wiring Harness
Courtesy of GENERAL MOTORS CORP.
Install the wiring harness retainer (1) to the passenger knee bolster bracket (2).

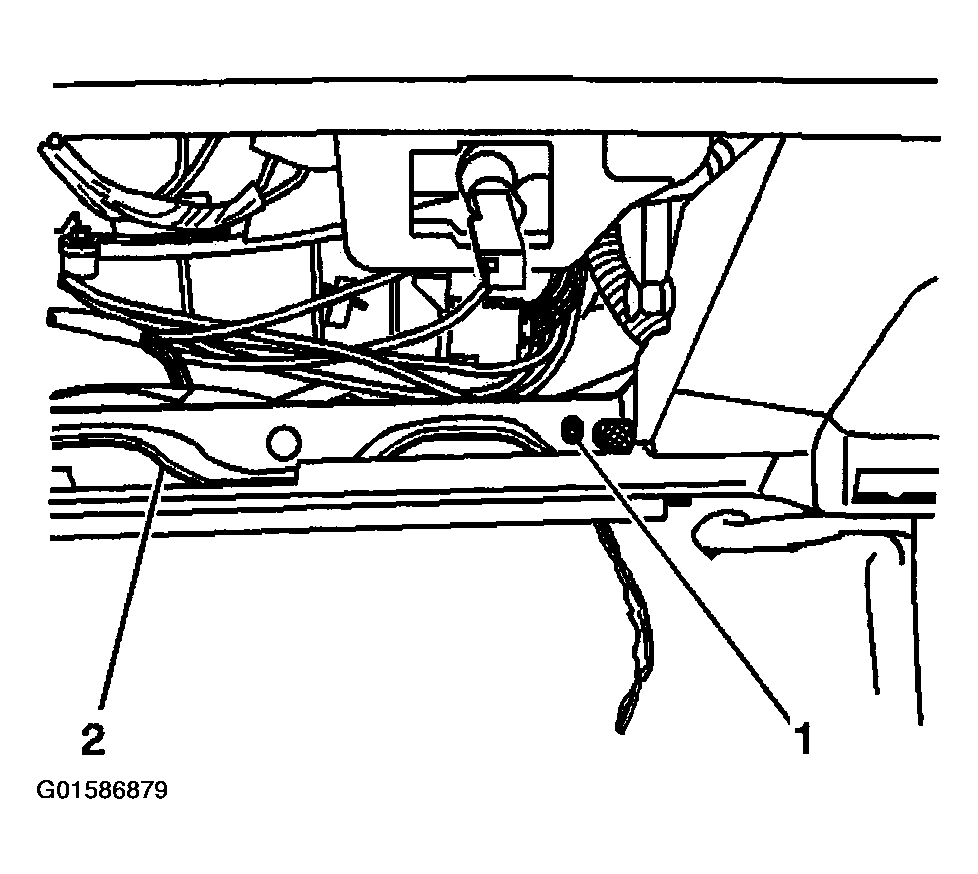

Fig 3: Identifying Wiring Harness Retainer & Passenger Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
Install the lamp harness retainer (1) to the passenger knee bolster bracket (2).

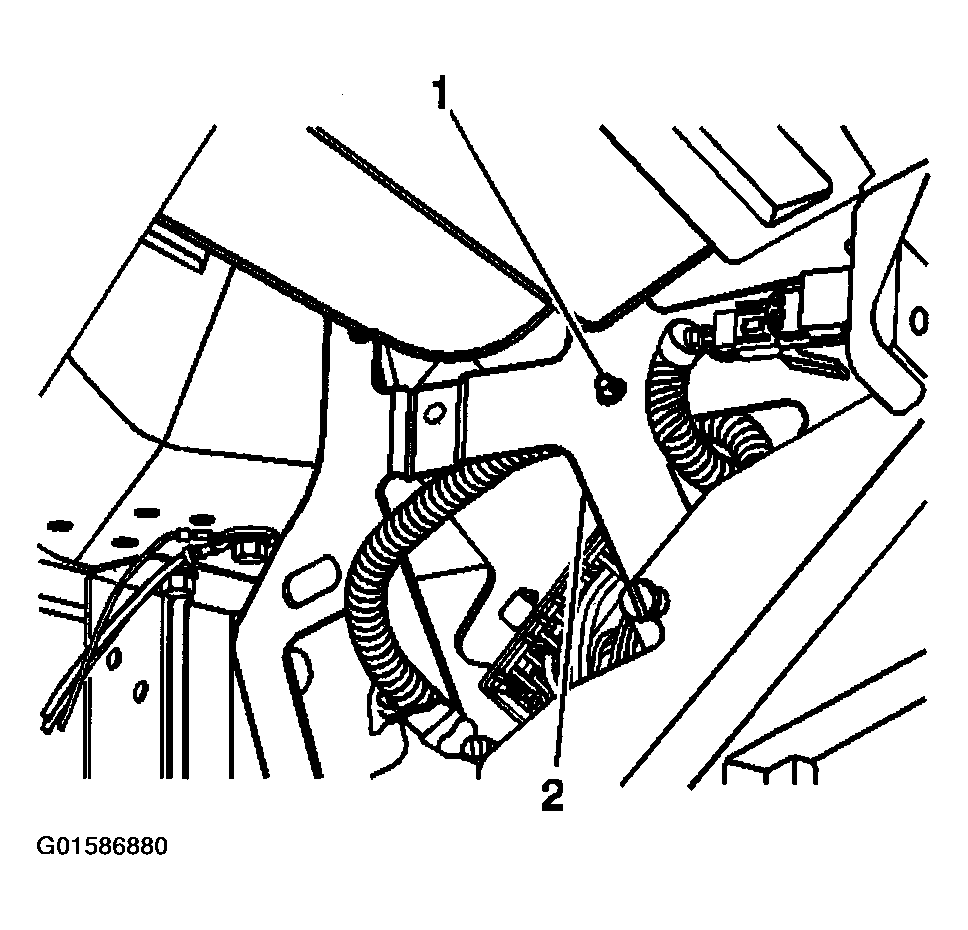

Fig 4: View Of Lamp Harness Retainer & Passenger Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.
Install the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages, and Console.
Install the access hole cover to the I/P fuse block.

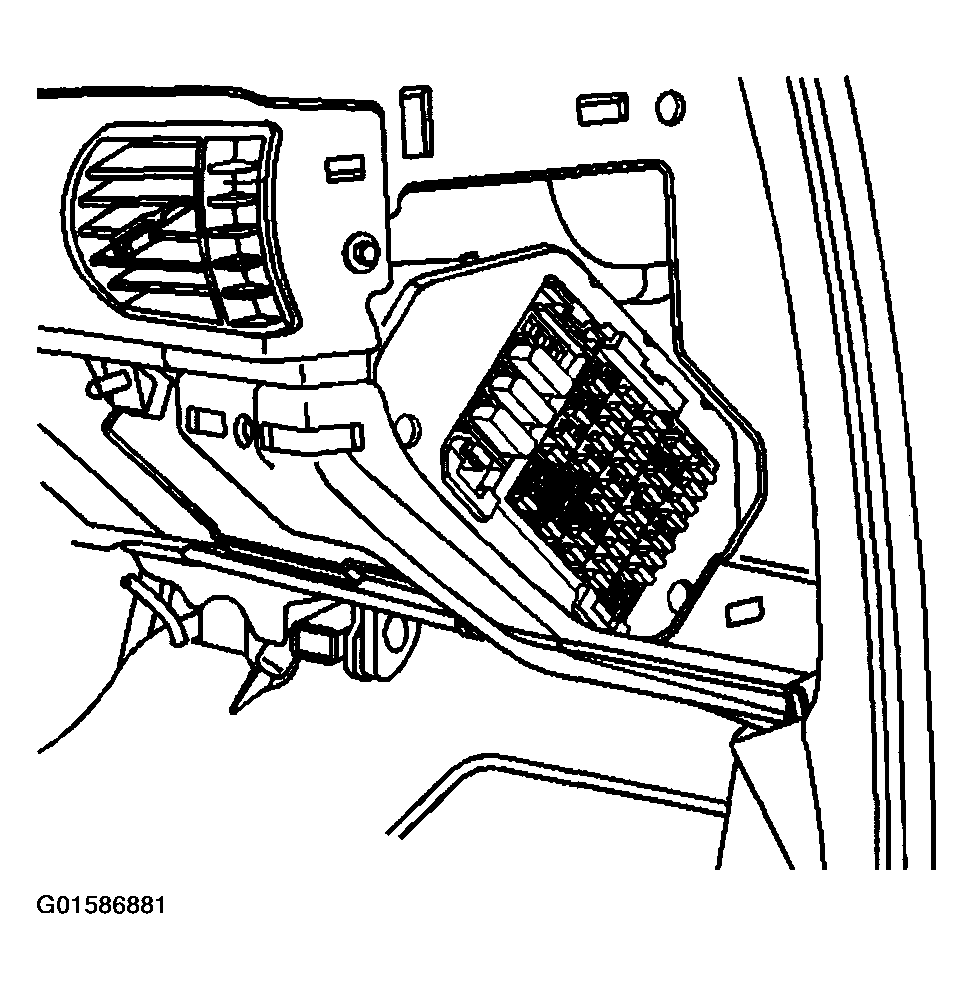

Fig 5: Identifying Access Hole & Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
