Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler rear hanger bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the inboard and the outboard rear bumper impact bar bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

    Fig 1: Installing Inboard Rear Bumper Impact Bar Bolt
    G01969220Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust pipe rear hanger insulators to the exhaust muffler rear hanger bracket.

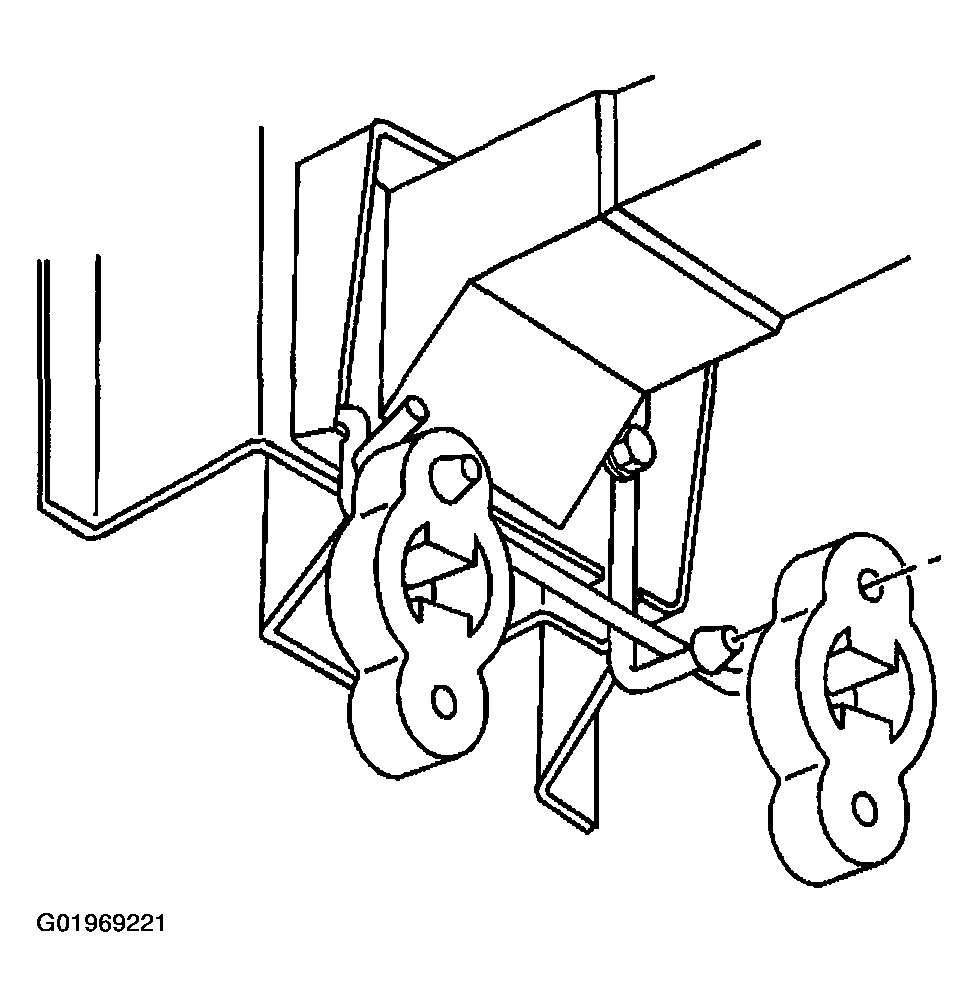

    Fig 2: Installing Exhaust Pipe Rear Hanger Insulators
    G01969221Courtesy of GENERAL MOTORS CORP.
  4. Remove the support from the exhaust system.
  5. Inspect the exhaust system for underbody contact.
  6. Lower the vehicle.
