Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation - A/T.
  2. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT in Engine Cooling.
  3. Remove the exhaust crossover heat shield bolts.

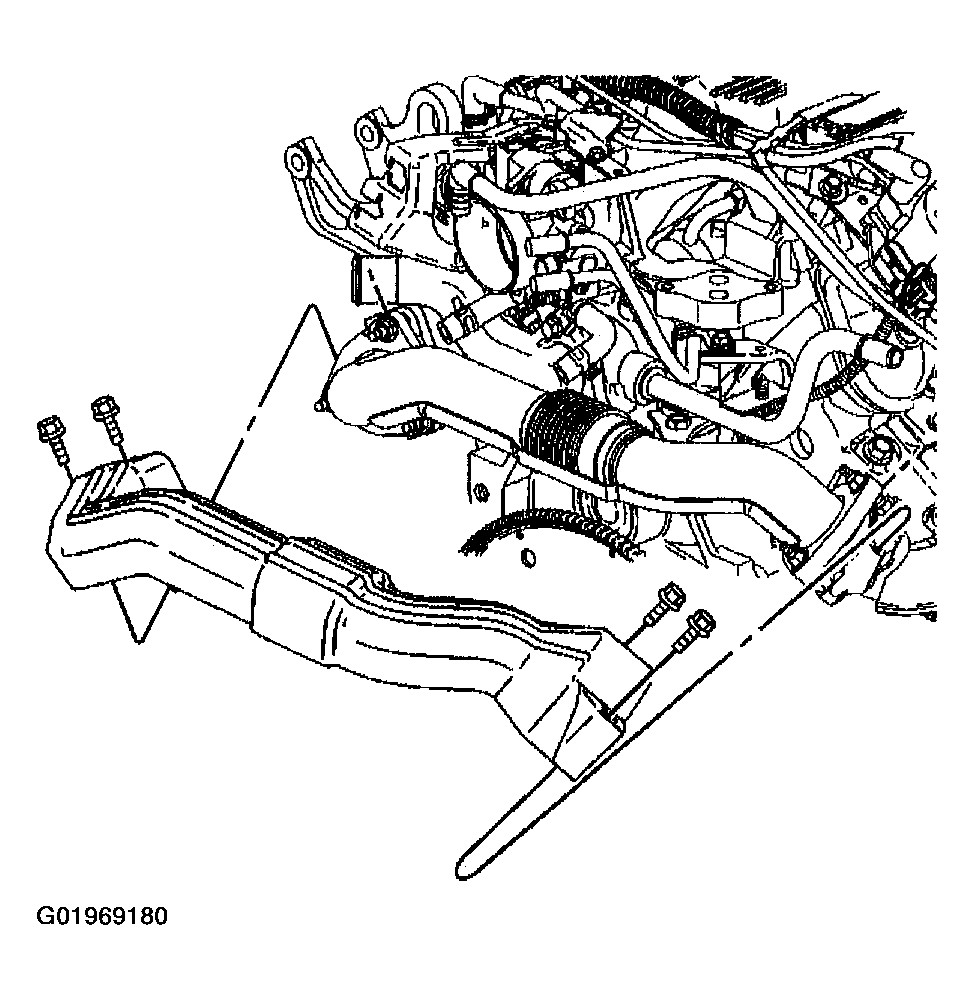

    Fig 1: Removing Exhaust Crossover Heat Shield & Bolts
    G01969180Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust crossover heat shield.
  5. Remove the exhaust crossover pipe nuts.

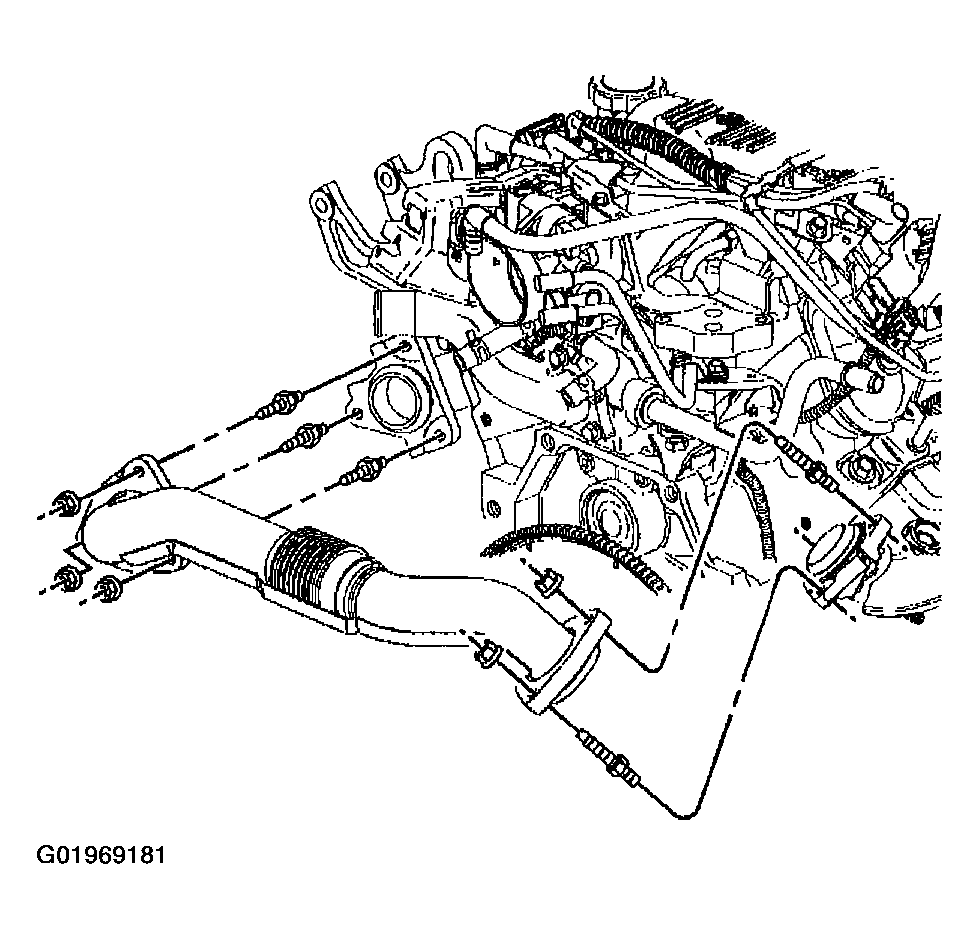

    Fig 2: Removing Exhaust Crossover Pipe & Nuts
    G01969181Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust crossover pipe.
