Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body outlet hose (4).

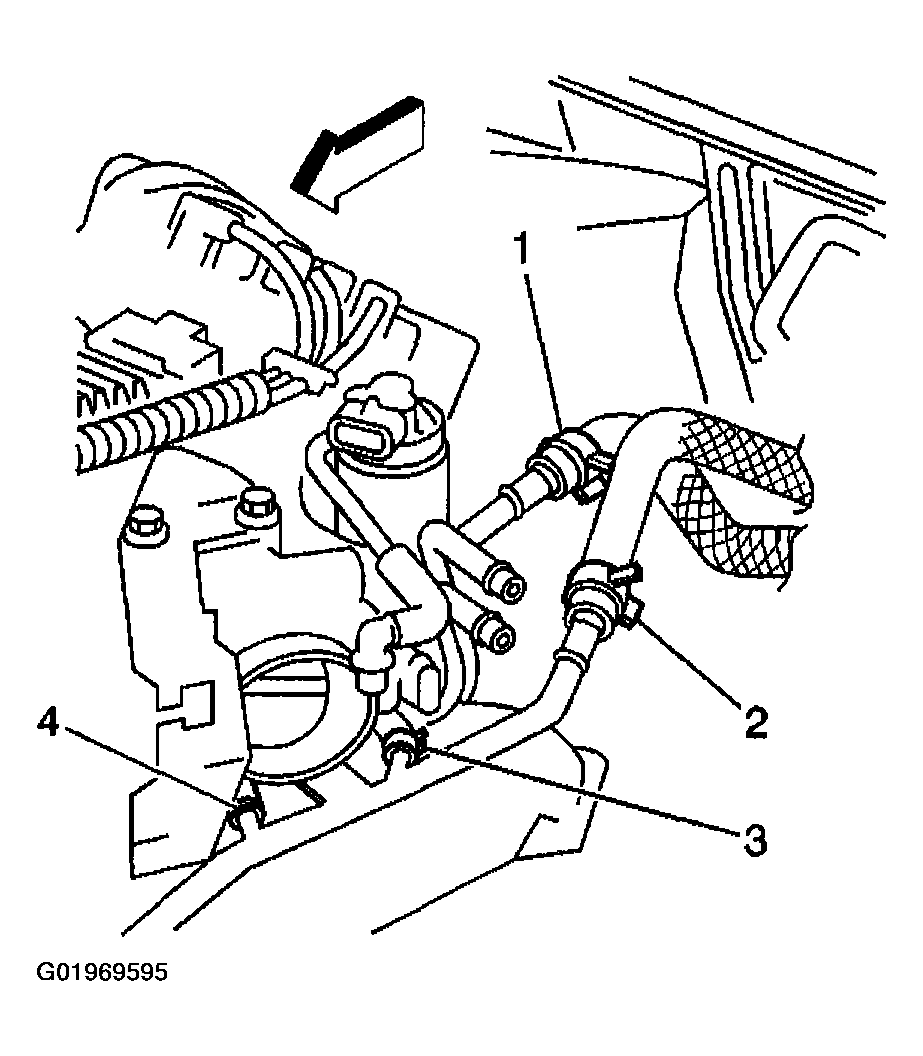

    Fig 1: Installing Throttle Body Inlet Hoses & Clamps
    G01969595Courtesy of GENERAL MOTORS CORP.
  2. Install the throttle body outlet hose and the clamp to the throttle body.
  3. Install the throttle body outlet hose (4) and the clamp to the coolant pipe.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  5. Install the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation - A/T.
