Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation - A/T.
  2. Partially drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  3. Use the J 38185  in order to reposition the hose clamp from the water outlet housing.
  4. Remove the radiator inlet hose from the water outlet housing.
  5. Remove the exhaust crossover pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT (3.1L) or EXHAUST CROSSOVER PIPE REPLACEMENT (3.8L) in Engine Exhaust.

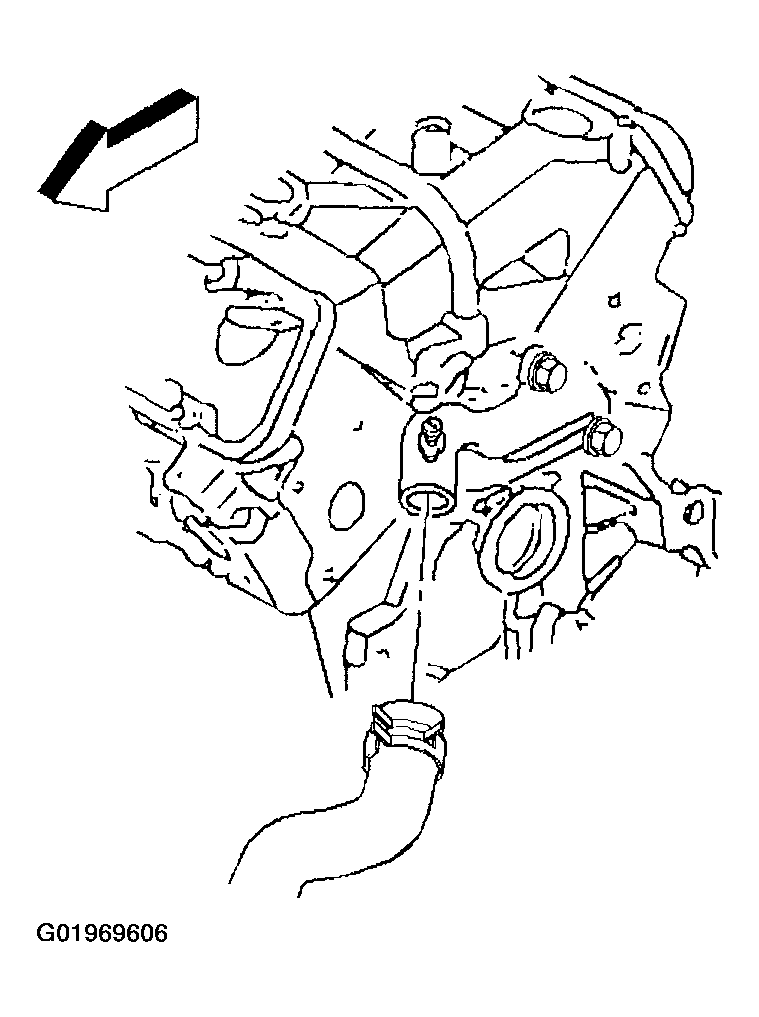

    Fig 1: Removing Radiator Inlet Hose From Water Outlet Housing
    G01969606Courtesy of GENERAL MOTORS CORP.
  6. Remove the water outlet housing bolts.
  7. Remove the water outlet housing and the gasket.

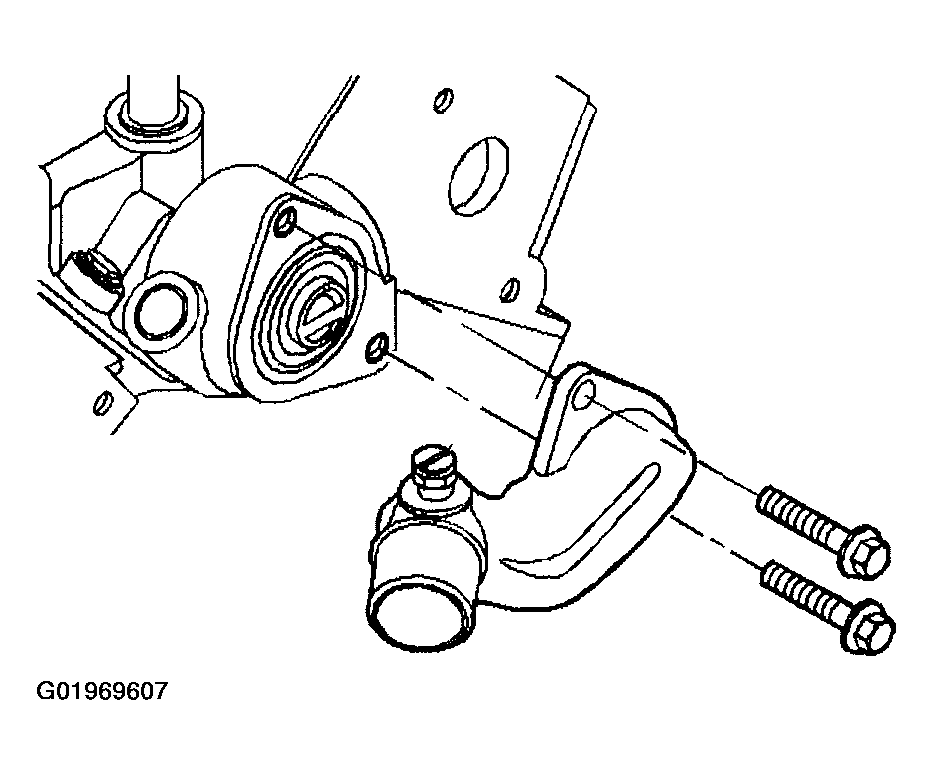

    Fig 2: Removing Water Outlet Housing & Bolts
    G01969607Courtesy of GENERAL MOTORS CORP.
  8. Remove the thermostat.
  9. Clean and inspect the water outlet housing gasket mating surfaces.

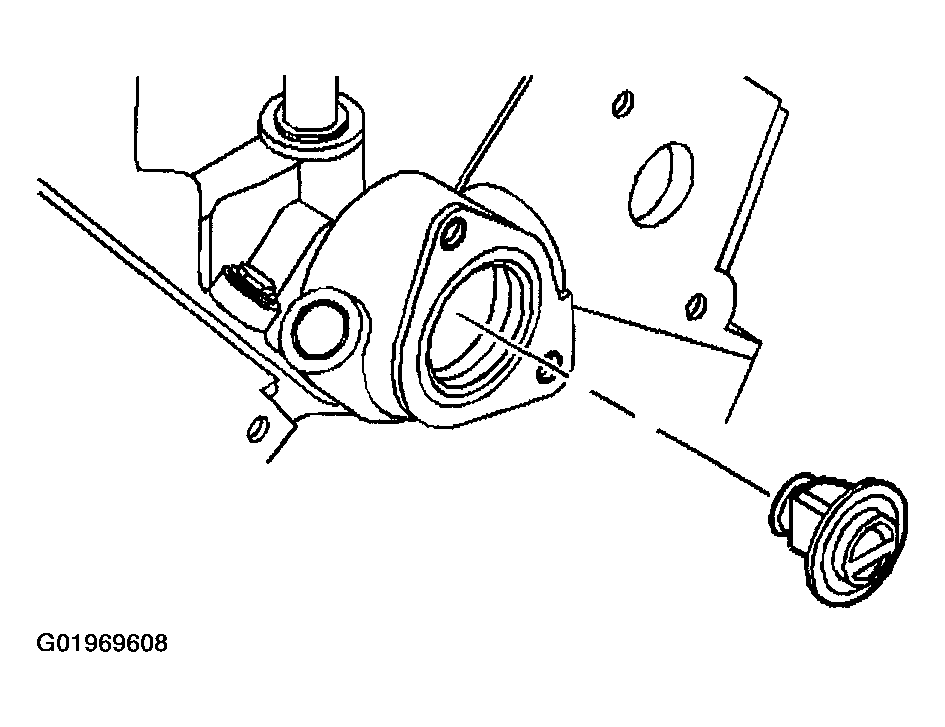

    Fig 3: Removing Thermostat
    G01969608Courtesy of GENERAL MOTORS CORP.
