Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks on the hose. Install the outlet hose to the water pump housing.

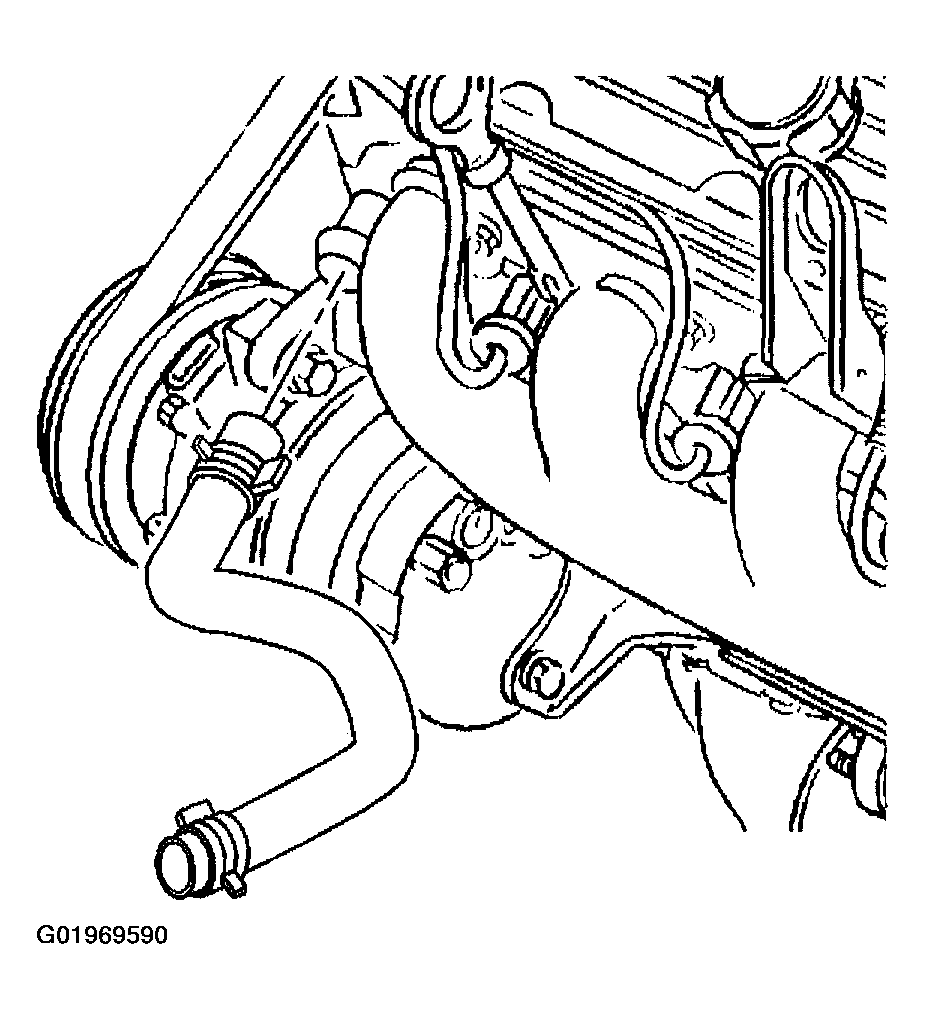

Fig 1: Installing Outlet Hose To Water Pump Housing
Courtesy of GENERAL MOTORS CORP.
Use the J 38185 in order to reposition the hose clamp to the water pump housing.
Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Install the outlet hose to the radiator.

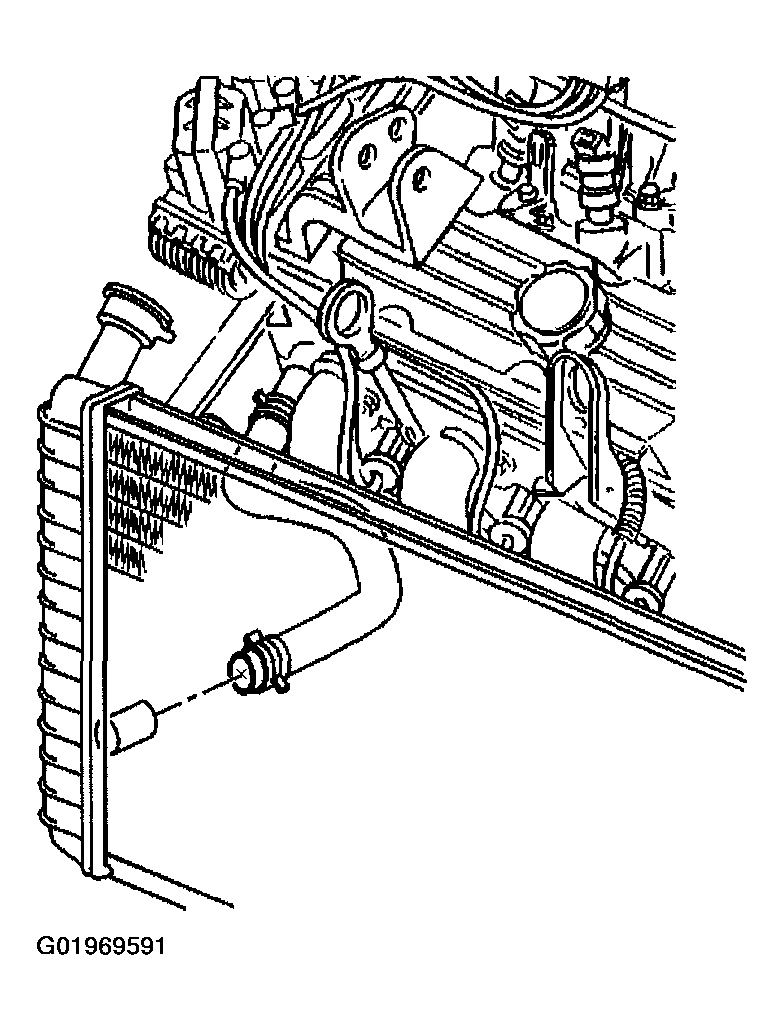

Fig 2: Installing Outlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
Use the J 38185 in order to reposition the outlet hose to the radiator.
Install the lower radiator air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
