Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Use the J 38185 in order to reposition the hose clamp from the water pump housing.
Disconnect the outlet hose (3) from the water pump housing (1).
Remove the lower radiator air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
Use the J 38185 in order to reposition the hose clamp from the radiator.
Disconnect the outlet hose (3) from the radiator (2).

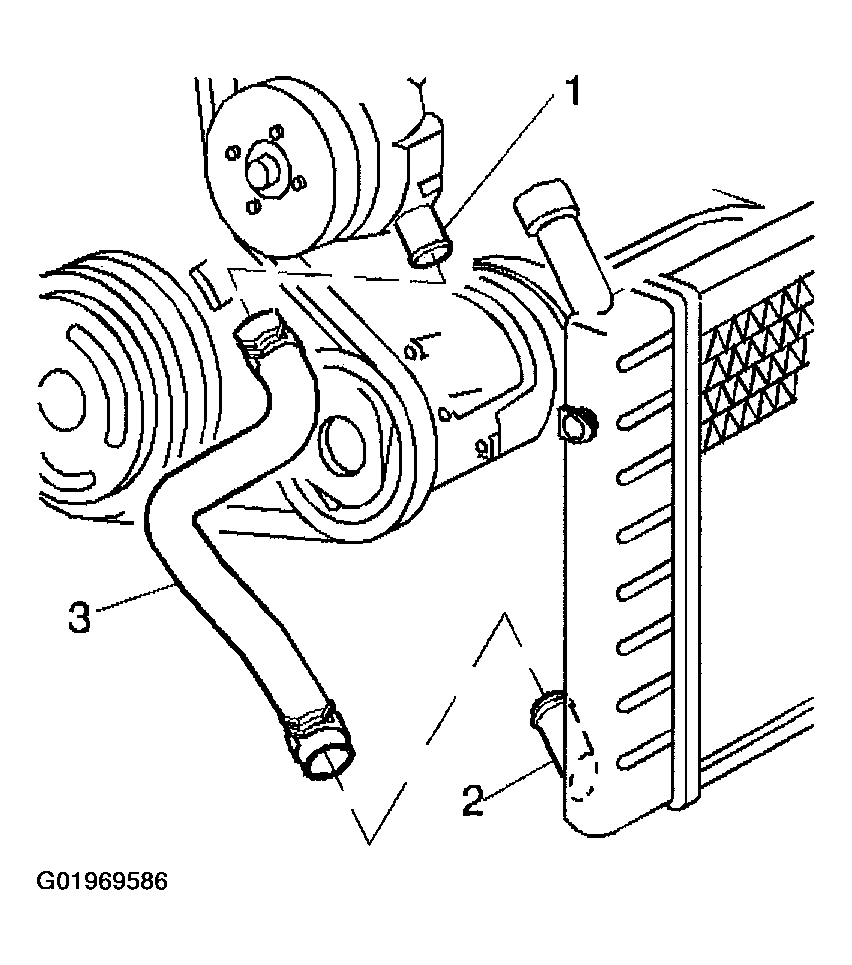

Fig 1: Disconnecting Outlet Hose From Water Pump Housing
Courtesy of GENERAL MOTORS CORP.
Remove the outlet hose.
