Installation Procedure
WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
- Align the marks on the radiator hose. Install the outlet hose to the radiator.

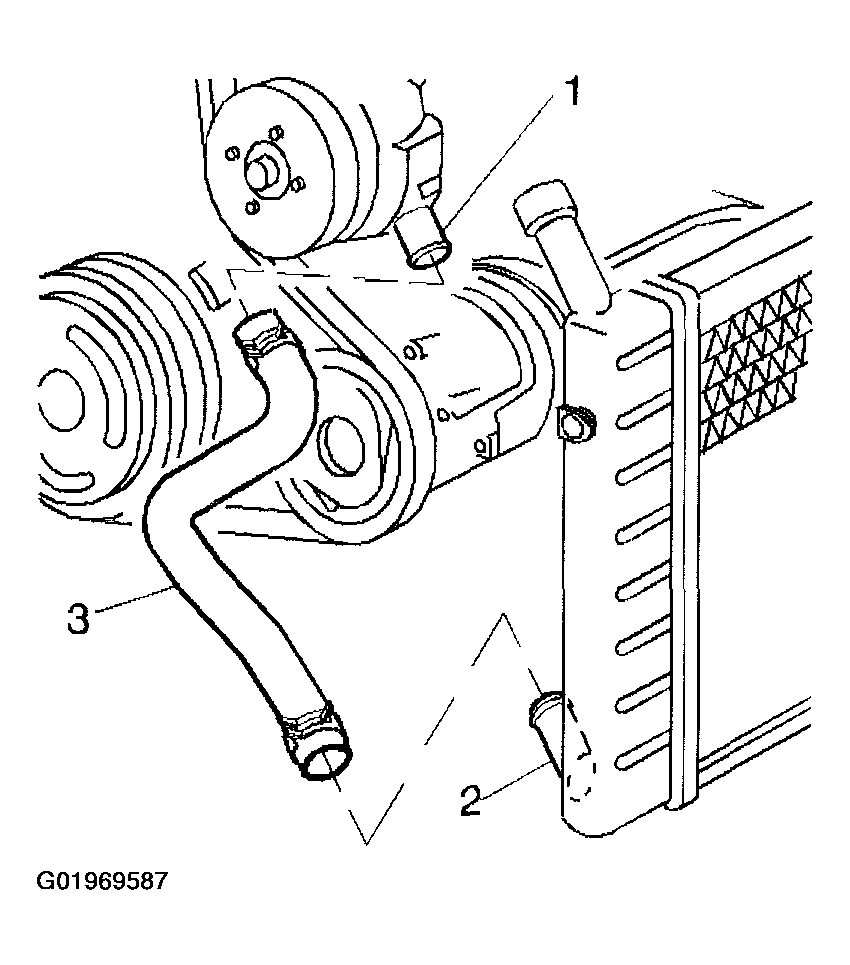

- Install the outlet hose (3) to the radiator (2).
- Use the J 38185 in order to reposition the hose clamp to the radiator.
- Install the lower radiator air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
- Install the outlet hose (3) to the water pump housing (1).
- Use the J 38185 in order to reposition the hose clamp to the water pump housing
- Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
